33

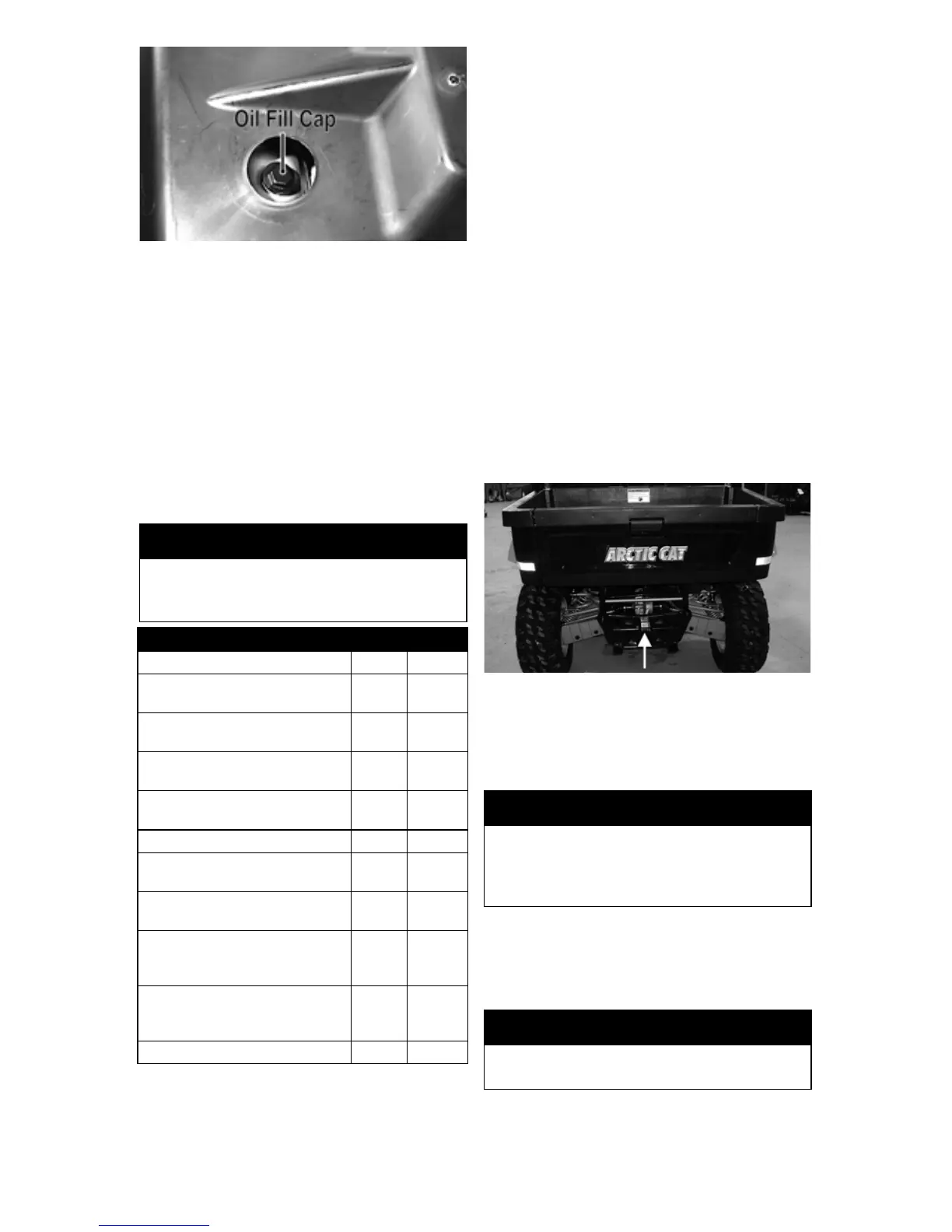

HDX022A
6. On the Prowler, install the center con-
sole; then install the seats making
sure they are securely latched. On the
HDX, lower the cargo box.
Load Capacity Ratings
Chart
This vehicle must always be loaded in
accordance with the Load Capacity Ratings
chart. Under no circumstances should the
Vehicle Load Capacity or the Gross Vehicle
Weight (GVW) rating ever be exceeded.
Vehicle Load Capacity - Total weight of
operator, passenger(s), trailer tongue
weight, accessories, cargo (GVW), and
storage compartments. On the HDX,
GVW can be any combination of these
must not exceed 1500 lb.
Tongue Weight - Weight on trailer tongue.
Accessory Weight - Winch, gun scab-
bard brackets, snow plow, etc.
Rear Tongue and Cargo Weight - Total
weight on trailer tongue and cargo box.
Rear Tongue, Cargo, and Side Storage
Compartments Weight - Total weight
on trailer tongue, cargo box, and side
storage compartment.
Towing Capacity - Total weight of
trailer and all cargo in the trailer.
Trailering and Towing
PR039B
This vehicle is equipped with a rear frame-
mounted receiver for a standard 5.1 cm (2
in.) receiver hitch. The standard receiver
hitch must be purchased separately.
When loading a trailer properly, two
items are critical: Gross Trailer Weight
(the weight of the trailer plus cargo) and
Trailer Tongue Weight.
! WARNING
Overloading this vehicle could result
in loss of control resulting in serious
injury or death.
Item Specifications
(lb) (kg)
Vehicle Load Capacity
(Prowler)
1180 535
Vehicle Load Capacity
(GVW) (500 HDX)
1100 498
Vehicle Load Capacity
(GVW) (700 HDX)
1500 680
Front Storage Compartment
(max)
25 11
Tongue Weight 150 68
Side Storage Compartment
(HDX)
15 6.8
Rear Tongue and Cargo
Weight (max)
600 272
Rear Tongue, Cargo, and
Side Storage Compartment
Weight (max) (500 HDX)
600 272
Rear Tongue, Cargo, and
Side Storage Compartment
Weight (max) (700 HDX)
1000 454
Towing Capacity 1500 680
! WARNING
Make sure that the load in the trailer
is properly secured and will not shift
while moving. Also, do not overload
the trailer.
! WARNING
Never exceed any of the vehicle
weight restrictions.
