Topside Control Panel
Your spa control has been specifically designed so that by simply connecting the spa to a properly
grounded source, and following the start-up procedures in this manual, the spa will automatically
heat to the set temperature. Many other functions, such as filtration, safety checks and maintenance
reminders have been automated so that your spa experience will be as carefree as possible.
But you’re in charge! The topside control (TSC) panel allows you to set the temperature, initiate the
filtration cycle, control the lights, and activate or deactivate the pump(s) and blower. The TSC display
responds to let you know you have pressed a button, and that the selected function has
been performed.
Power-Up Detection
When spa is powered up it performs a check to see if the hi- limit probe is attached to the heater bar-
rel. While this is happening “tSt” will be displayed and the lights in the spa will flash until the test has
passed. If the “tSt” fails, the code “HPt” will be displayed on the screen. Please reference the quick
reference guide on the next page for probable solutions.

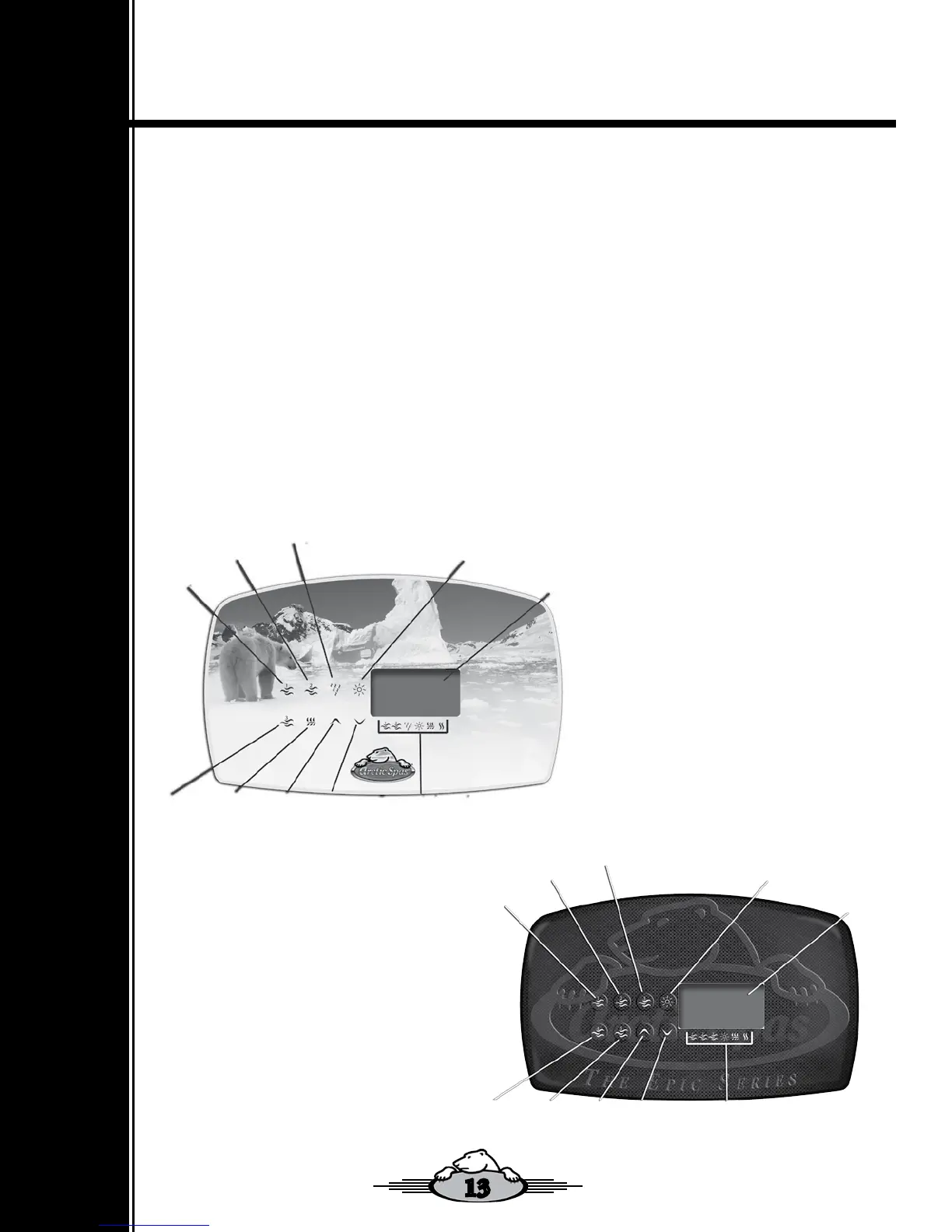

Pump 1
Pump 2
Therapy Air
Light Control
Display Panel
Pump 3
Filter
Cycle
Up
Arrow
Down
Arrow
Function Indicator Section
A small inverted triangle over the symbol indicates that the corre-
sponding function is active.
Pump 1
Pump 2
Pump 3
Light Control
Display Panel
Pump 4 Pump 5
Up
Arrow
Down
Arrow
Function Indicator Section
A small inverted triangle over the
symbol indicates that the correspond-
ing function is active.
