8
Note to European customers:
8’ Epic Series Electrical Requirements are 240 Volt, 40
AMP Single Phase or 2-20 AMP or 3-20 AMP or 3-16
AMP you have the choice of a 1, 2, or 3 phase power
supply at 16, 20, 25, 32, 40, 50, & 60 amperages.
Electrical Specifications
WARNING!
All electrical hookups must be performed by a licensed electrician!
To Spa
From
Electrical
Box

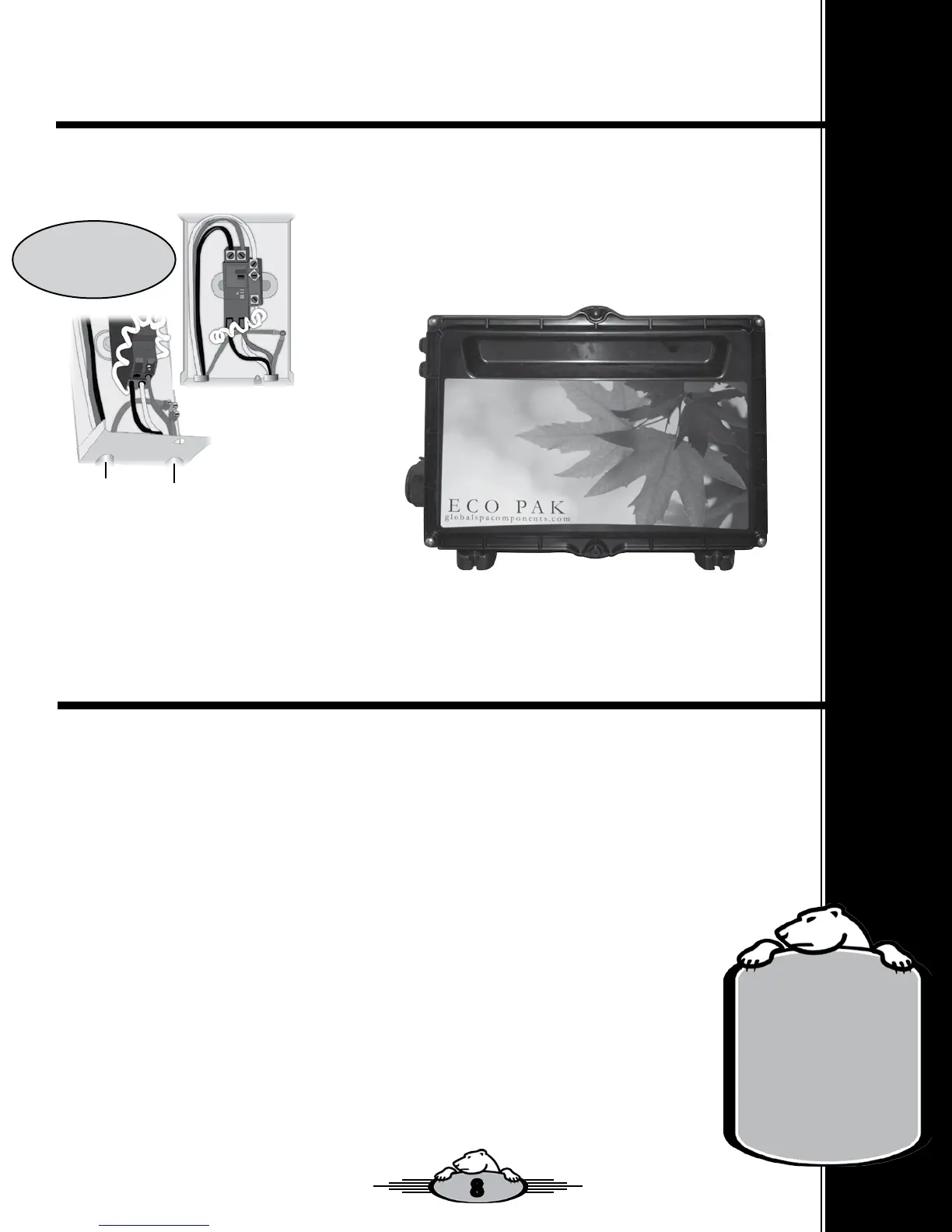

IMPORTANT CONNECTIONS: (North American installation)
Neutral of the GFCI must be connected to the neutral bus.
Neutral from the spa must be connected to the breaker.
Sub Panel
Wiring Diagram
Example
Electrical Installation Instructions
DANGER!
Shock Hazard.
DO NOT PROCEED if
you are not a licensed
electrician. This
diagram is for
reference only!
ARCTIC SPAS
®
MUST BE WIRED IN ACCORDANCE WITH ALL
APPLICABLE LOCAL ELECTRICAL CODES. ALL ELECTRICAL WORK
SHOULD BE DONE BY AN EXPERIENCED, LICENSED ELECTRICIAN
AND APPROVED BY A LOCAL BUILDING/ELECTRICAL
INSPECTION AUTHORITY.
The electrical supply must satisfy the requirements of the spa as marked on the certification label which
is located adjacent to the spa controller (pack). If the ratings are not legible or cannot be found, please
contact the factory for assistance. - DO NOT GUESS!
WARNING: Removing or bypassing any GFCI /RCD breaker will result in an unsafe
spa and will void the spa’s warranty.
IMPORTANT: Your Arctic Spa has been carefully engineered to provide maximum safety
against electric shock. Remember, connecting the spa to an improperly
wired circuit will negate many of its safety features.
The Eco-Pak spa pack allows you to use all the features of our free app, onSpa
®
, for your smartphone. onSpa
®
has a wide
range of user guides and information that will be useful with any spa pack. For detailed instructions on how to use onSpa,
download the app here http://www.arcticspas.com/support/downloads-manuals-brochures/ or go to www.ArcticSpas.com
