1.9.1 onSpa Interface Through EoP

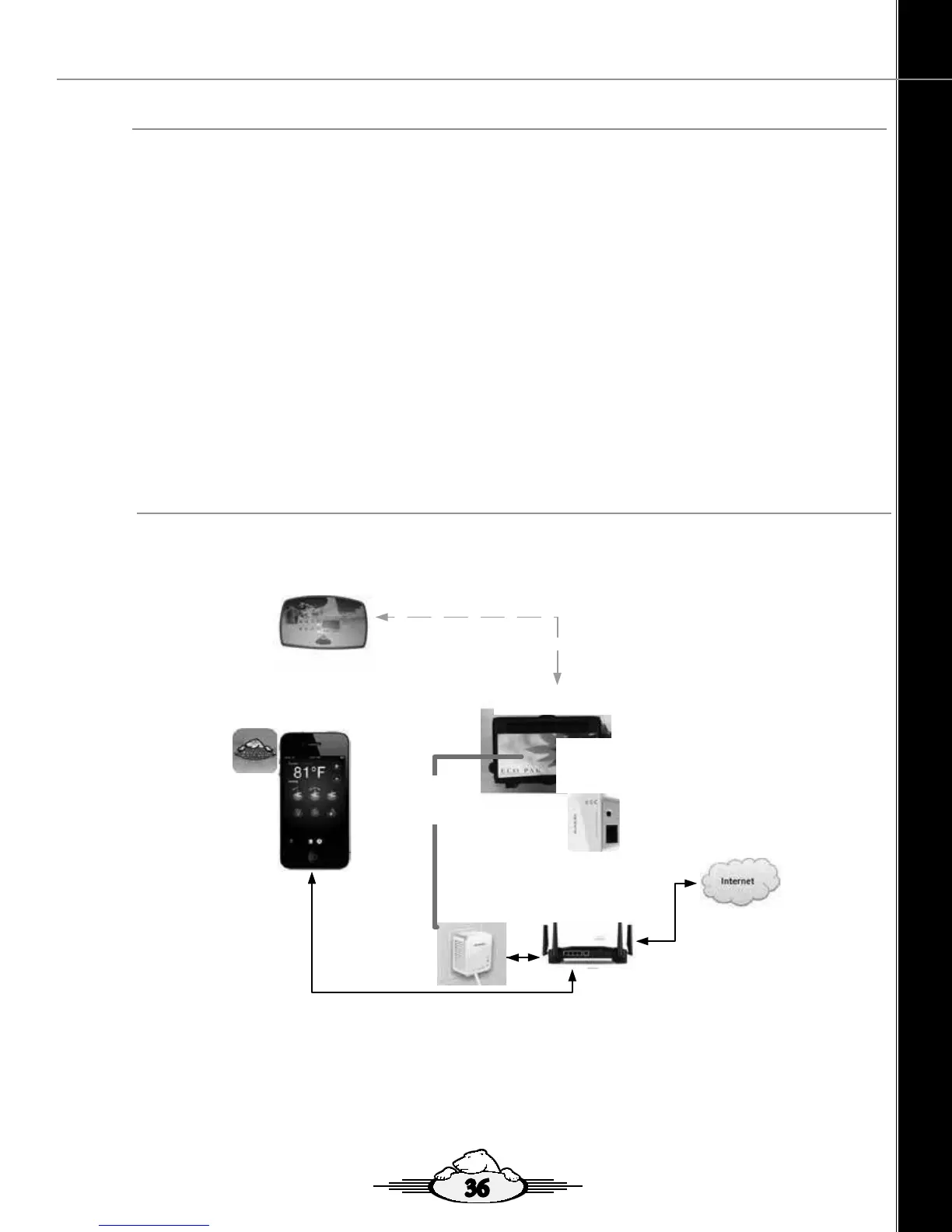

The following diagram reects onSpa interface through a EoP.
onSpa and Web Connect User Guide
Version 1 Revision Draft 1 onSpa and Web Connect User Guide
Issued Mar 2016
Page 7 of 24
1.9.1 onSpa Interface Through EoP
The following diagram reflects onSpa interface through a EoP.
onSpaInterfaceThroughEoP
Internet
2011GlobalEcoPAK
EopModule
INPower
Point
HomeRouter
Electrical
PowerLine
Delivering
networkdata
EopModulein
Pak
connectedto
motherboard
WebEnabled
Devicewith
AppInstalled
Topside
Controller
1.9.2 onSpa Interface Through WIFI Extender
The following diagram reflects onSpa interface through a WIFI Extender
onSpaInterfaceThroughWIFIExtender
Internet
2011GlobalEcoPAK
HomeRouter
WIFI
Delivering
networkdata
WebEnabled
Devicewith
AppInstalled
WIFIExtender
inPak
connectedto
motherboard
Topside
Controller
1.9 How Does onSpa and Web Connect Work?
The following diagrams show how:
• onSpa interfaces with your device and Spas Global Eco Pak through Ethernet Over Power (EoP).
• onSpa interfaces with your device and Spas Global Eco Pak through WIFI Extender.
• onSpa interfaces with your device and Spa Global Eco Pak, through a LAN Cable which is directly connected to the
RJ45 Port on your Spas Processor Card and the other end connected to an RJ45 Port on your Home Router.
• onSpa interfaces with your device/computer and Spas Global Eco Pak through Ethernet Over Power (EoP) anywhere
in the world where you have WIFI access on your device or computer.
• onSpa interfaces with your device/computer and Spas Global Eco Pak through WIFI Extender anywhere in the world
where you have WIFI access on your device or computer.
• onSpa interfaces with your device/computer and Spa Global Eco Pak, through a LAN Cable which is directly
connected to the RJ45 Port on your Spas Processor Card and the other end connected to an RJ45 Port on your
Home Router.
Topside
Controller
OnSpa and Web Connect - User Guide
