19

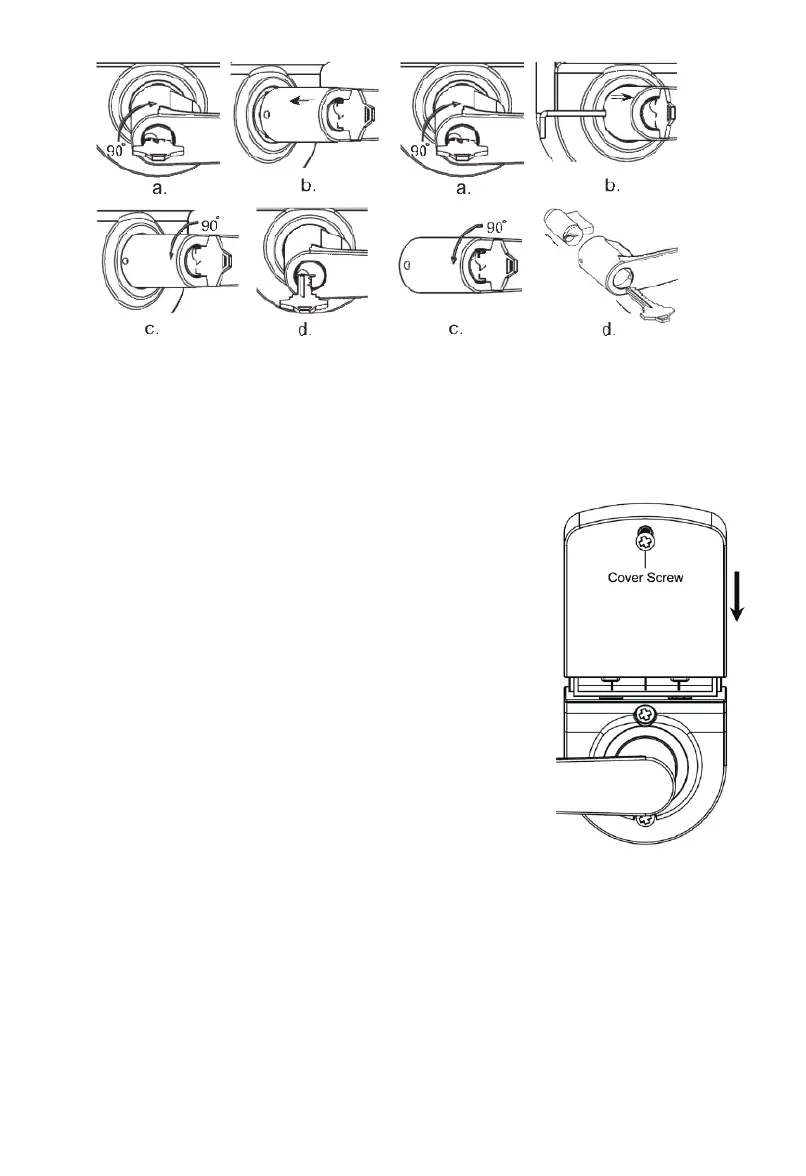

fig. 9
fig. 10
4. Install 4 brand new AA Alkaline batteries (NOT included, do
not use rechargeable batteries). Alkaline Batteries Warning: Do
not install backwards, charge, put in fire, or mix with other
battery types, may explode or leak causing injury. Replace all
batteries at the same time.
5. Slide cover down then tight cover screw (see figure 11).
6. Testing lock: Rear lever should be pushed down and lifted
up. The lock may keep unlock after installation. Enter default
code 1234 then press #. The lock will lock by itself after 5
second, otherwise check latch if it is broken.
7. Caution: User MUST install strike plate included in package.
The existing strike must be removed if there is one on
doorjamb. Check the operation of the latch by ensuring that the
latch plunger stops against the strike plate and does not slide
into the strike opening when the door is closed (see fig. 12). If
that situation occurs, then a total lockout may occur. This
situation will void our warranty of the complete lock
mechanism. If necessary, correct the door over-travel by using
the rubber bumper (see fig. 13). You may buy the rubber
bumpers from your local hardware store.
8. Lock removal: Reverse step 5, 4 and 2. Refer step 3.6 to remove outside Lever.
Reverse step 1.4 and 1.3 to remove outside chassis and inside chassis from the door.
