Areva MiCOM P921 - Page 41

Technical Guide P92x/EN CO/E11
Connection Diagrams
MiCOM P921-P922-P923 Page 7/10
aB
C
D
1.1.5 LV connection for P92x (220-480V range)
33
34
+
-
CB
A
Notes :
(1) Additional hardware for MiCOM P922 and P923 relay
(2) Additional hardware for MiCOM P922 and P923 relay
Scheme representing MiCOM relay off
41
42
43
44
45
46
49
50
22
24
26
28
19
17
21
23
27
25
WD
37
35
36
RL1
6
4
2
RL2
12
10
8
29
31
32
-
30
*
+
_
Phase rotation
Power
supply
Watchdog
Output contacts (programmable) :
RL3
16
14
RL4
20
18
RL5
3
1
RL6
7
5
RL7
9
11
RL8
13
15
4 programmable LEDs
Earth
connection
Communication port RS485
LV connection for P92x (220-480V range)
LEDs
See note 2
(* System end resistance.
For last relay, connect 30 and 32 together)
*
See note 1
Programmable inputs :
RL2
RL1
EL1
EL2
EL3
EL4
EL5
RL3
RL4
RL5
RL6
RL7
RL8
ABC
33
34
+
-
CB
A
Notes :
(1) Additional hardware for MiCOM P922 and P923 relay
(2) Additional hardware for MiCOM P922 and P923 relay
Scheme representing MiCOM relay off
41
42
43
44
45
46
49
50
22
24
26
28
19
17
21
23
27
25
WD
37
35
36
RL1
6
4
2
RL2
12
10
8
29
31
32
-
30
*
+
_
Phase rotation
Power
supply
Watchdog
Output contacts (programmable) :
RL3
16
14
RL4
20
18
RL5
3
1
RL6
7
5
RL7
9
11
RL8
13
15
4 programmable LEDs
Earth
connection
Communication port RS485
LEDs
See note 2
(* System end resistance.
For last relay, connect 30 and 32 together)
*
See note 1
Programmable inputs :
RL2
RL1
EL1
EL2
EL3
EL4
EL5
RL3
RL4
RL5
RL6
RL7
RL8
ANBC
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
P0393ENa

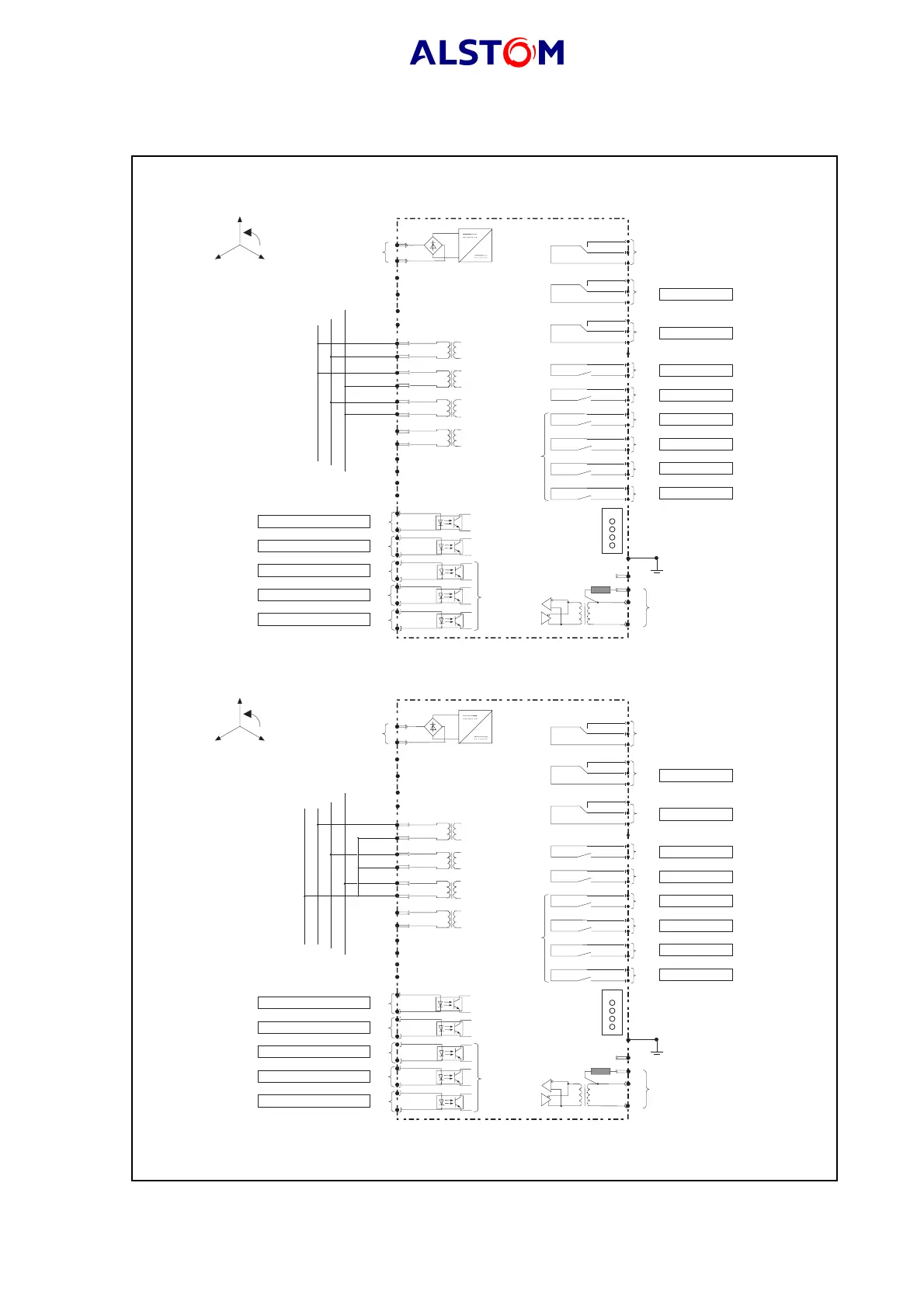

FIGURE 5 : LV CONNECTION FOR P92x (220-480V RANGE)
