When it becomes necessary to replace the blade. Proceed as follows:
1. Disconnect the machine from the power source.

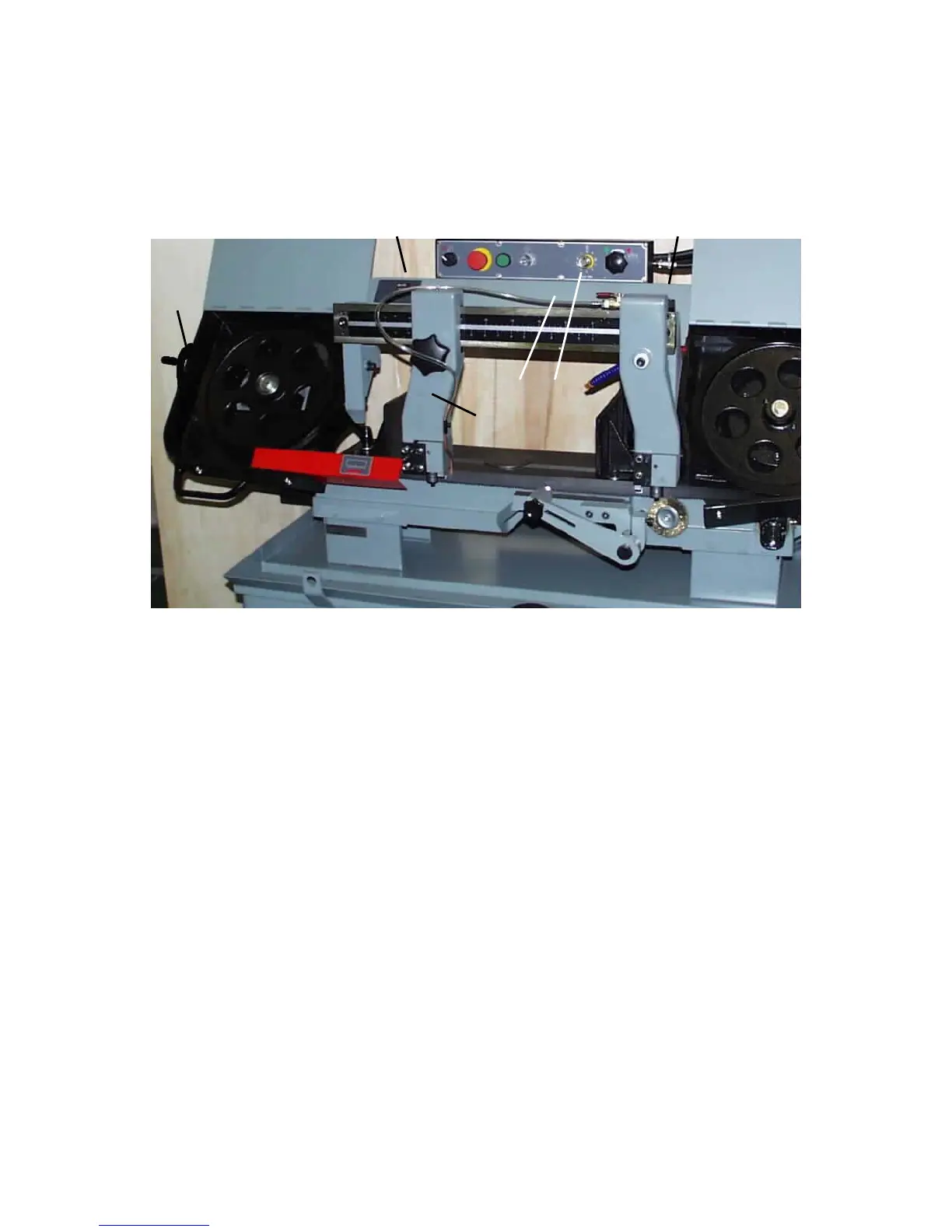

2. Raise the saw frame about 6” and close the feed on ioff knob (E) Fig 21, by turning it
clockwise as far as it will go.”
3. Move the blade guide arm (B) to the right, as shown in Fig. 21.
4. Loosen two screws (D) and open upper blade guard (F) Fig. 21.
5. Open both wheel covers (A) Fig. 21, and clean the swarf out of the machine
6. Release blade tension by turning the blade tension handwheel (C) Fig. 21.
Counterclockwise.
7. Remove the blade from both wheels and out of each blade guide.
8. Make sure the teeth of the new blade are pointing In the right direction. If necessary,
turn the blade inside out.
9. Place the new blade on the wheels, in the blade guides and adjust blade tension and
blade guides.
- -
