Argo 2S User Manual

CH9 故障排除 Trouble-Shooting Original
63
番號
No.
檢查項目
Inspection Items
圖示
Illustrations
容許差
Tolerances
測定值
Measurements

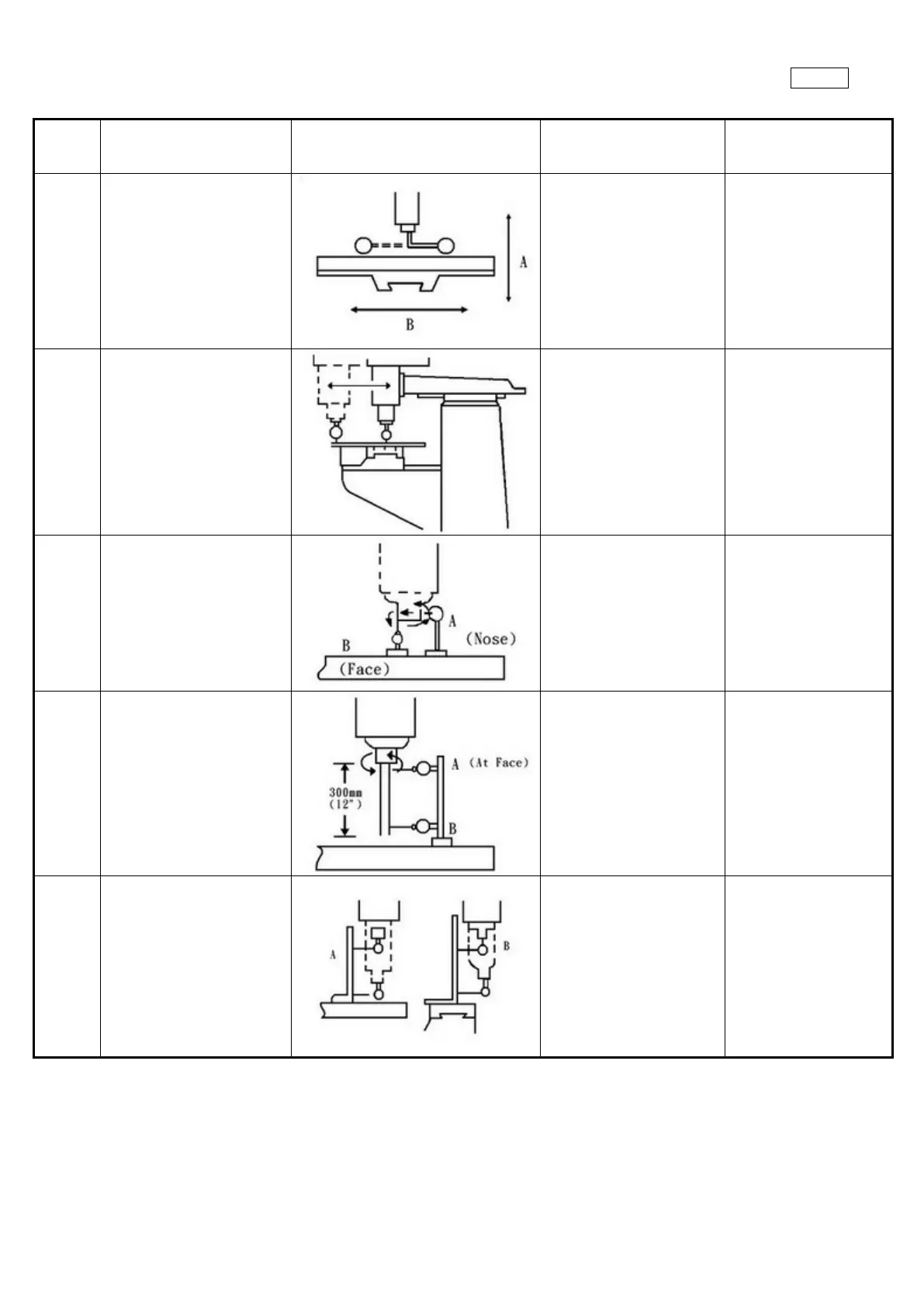

5
工作台面與主軸的
直角度
Table sweep-knee
not level spindle
perpendicular to
top of table.
0.02mm/300mm
(0.0008”/12”)
A. _______
B. _______
6
伸出臂與工作台面
平行度
Ram slide parallel
with table top.
0.02mm/300mm
(0.0008”/12”)
_____________
7
主軸、主軸端面振
幅
Spindle nose and
face true.
A. 0.01mm
(0.0004”) MAX.
B. 0.01mm
(0.0004”) MAX.
A. _______
B. _______
8
主軸孔偏轉
Spindle bore runout
A. 0.01mm
(0.0004”) MAX.
B. 0.02mm
(0.0008”) MAX.
A. _______
B. _______
9
昇降套上、下與工
作台垂直度
Quill travel square
to table surface.
A.
0.02mm/300mm
(0.0008”/12”)
B.
0.02mm/300mm
(0.0008”/12”)
A. _______
B. _______
