Argo 2S User Manual

CH8 保養 Maintenance Original
47
8.3 頭部 Head

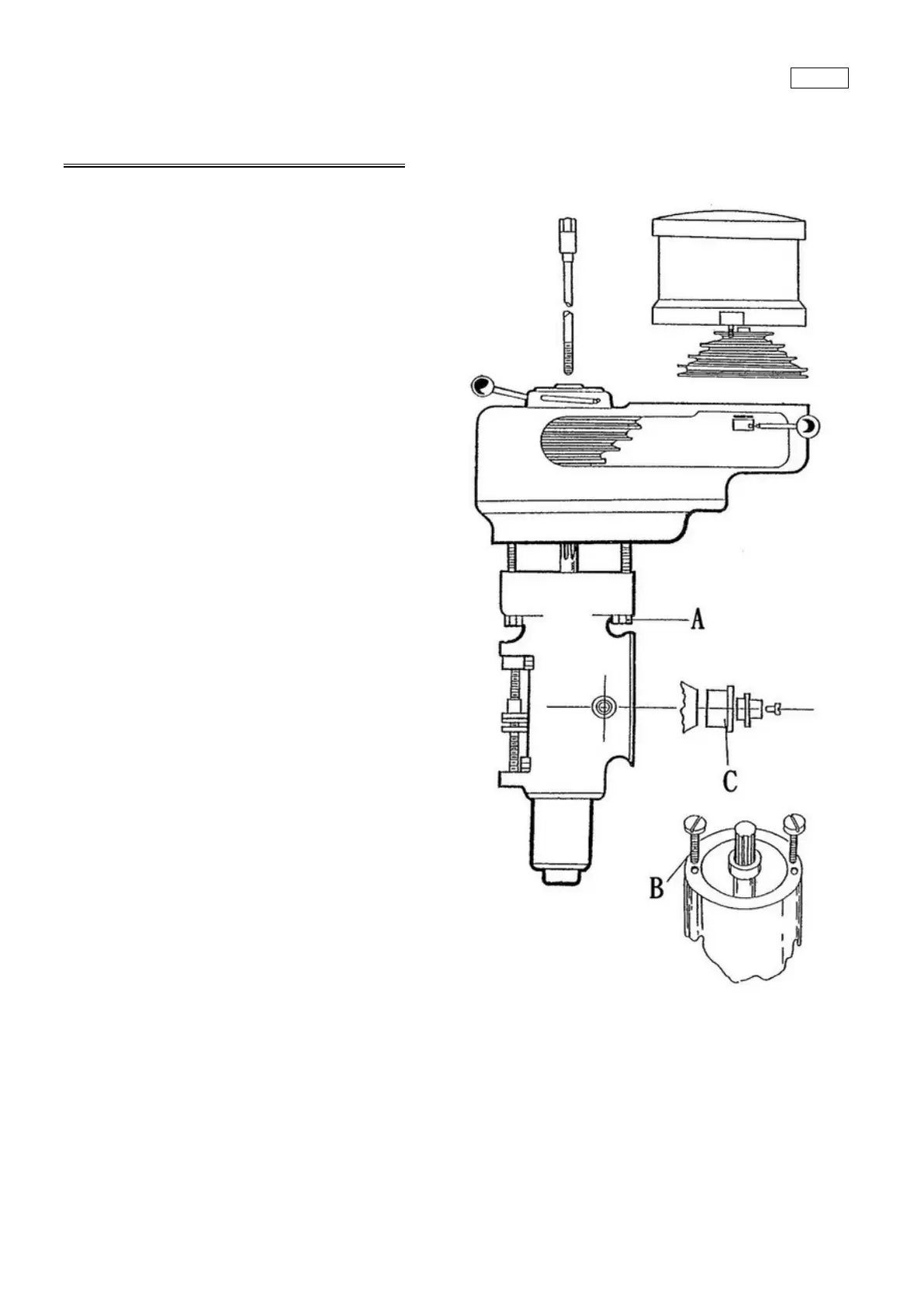

昇降套拆卸法 QUILL REMOVAL
(1) 關掉電源
Isolate machine.
(2) 拆下馬達
Remove motor.
(3) 取出拉桿
Remove drawbar.
(4) 昇降套降至最低
Fully extend quill.
(5) 取下三個螺帽 A
Remove 3 nuts A
(6) 頂部完全地拆出
Remove top section completely.
(7) 取出昇降套頂兩個螺絲 B
Remove 2 screws B from top of
quill.
(8) 拆下彈簧座 C (參看 48頁更換彈簧
說明)
Remove clock spring housing C.
(see instruction on replacing spring
page 48)
