Argo 2S User Manual

CH5 操作 Operation Original
34
5.3 頭部控制 Head controls

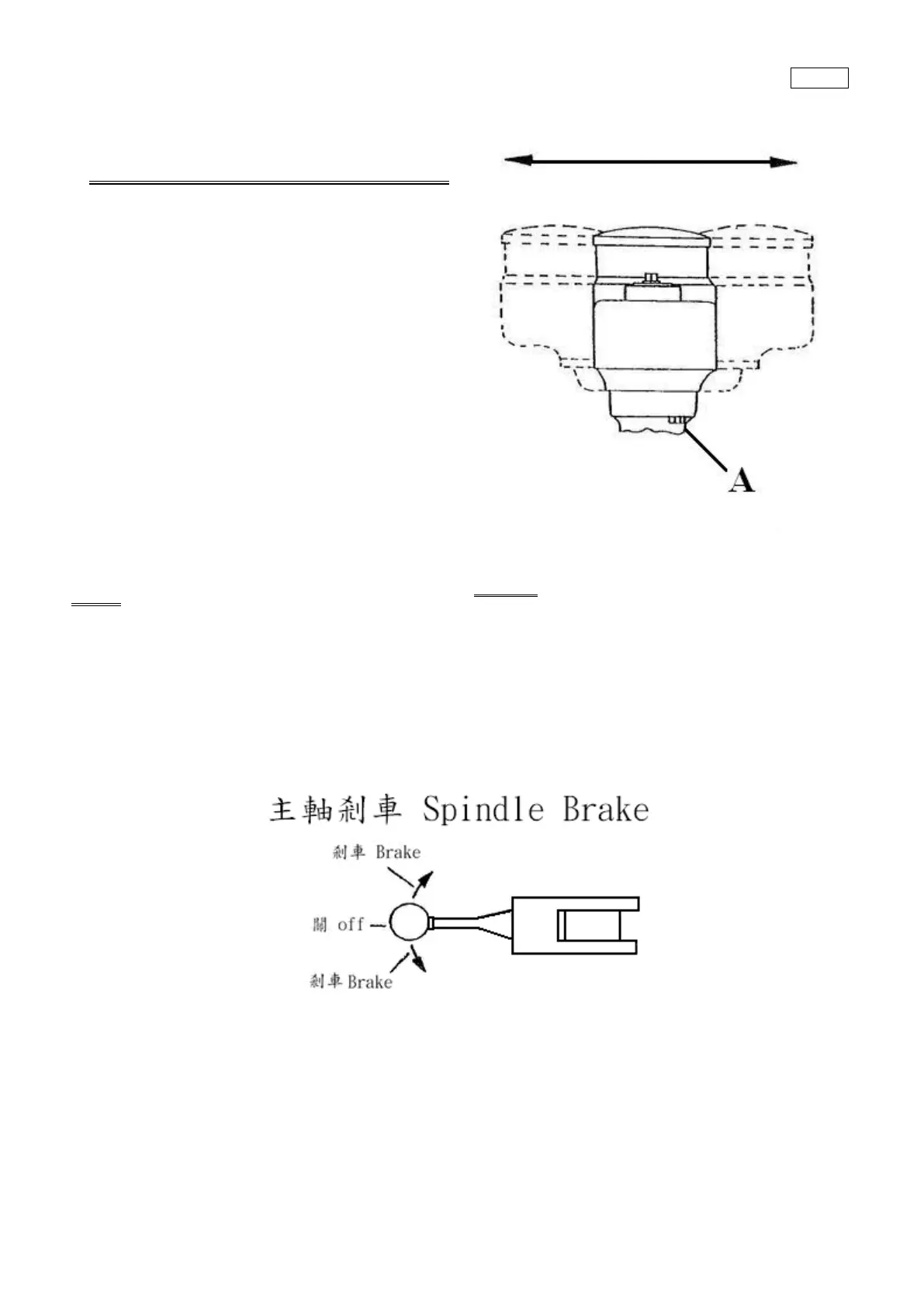

皮帶箱旋轉 Swivel Belt Housing
(1) 放鬆三固定螺帽‘A’(完全地放
鬆以避免束縛力存在)。
Slacken three Locking Nuts ‘A’
(Retain sufficiently to stop binding).
(2) 旋轉至所需要之角度。
Swivel to required angular setting.
(3) 鎖緊三固定螺帽最後鎖緊前先轉
動主軸使栓槽正確對準。
Tighten three Locking Nuts; before
finally securing, run spindle to give
correct spline alignment.
注意:
鎖固定螺帽時，若三個不均勻會使
昇降套產生剛性變化而造成昇降套內
栓槽不正，使進給困難，此現象在操作
昇降套進給時可感覺出來
NOTE:
Incorrect spline alignment can be
caused by unequal tightening of the
locking nuts ‘ A ’ causing varying
stiffness of the quill feed which can be
felt through the sensitive feed handle.
