Argo 2S User Manual

CH5 操作 Operation Original
35

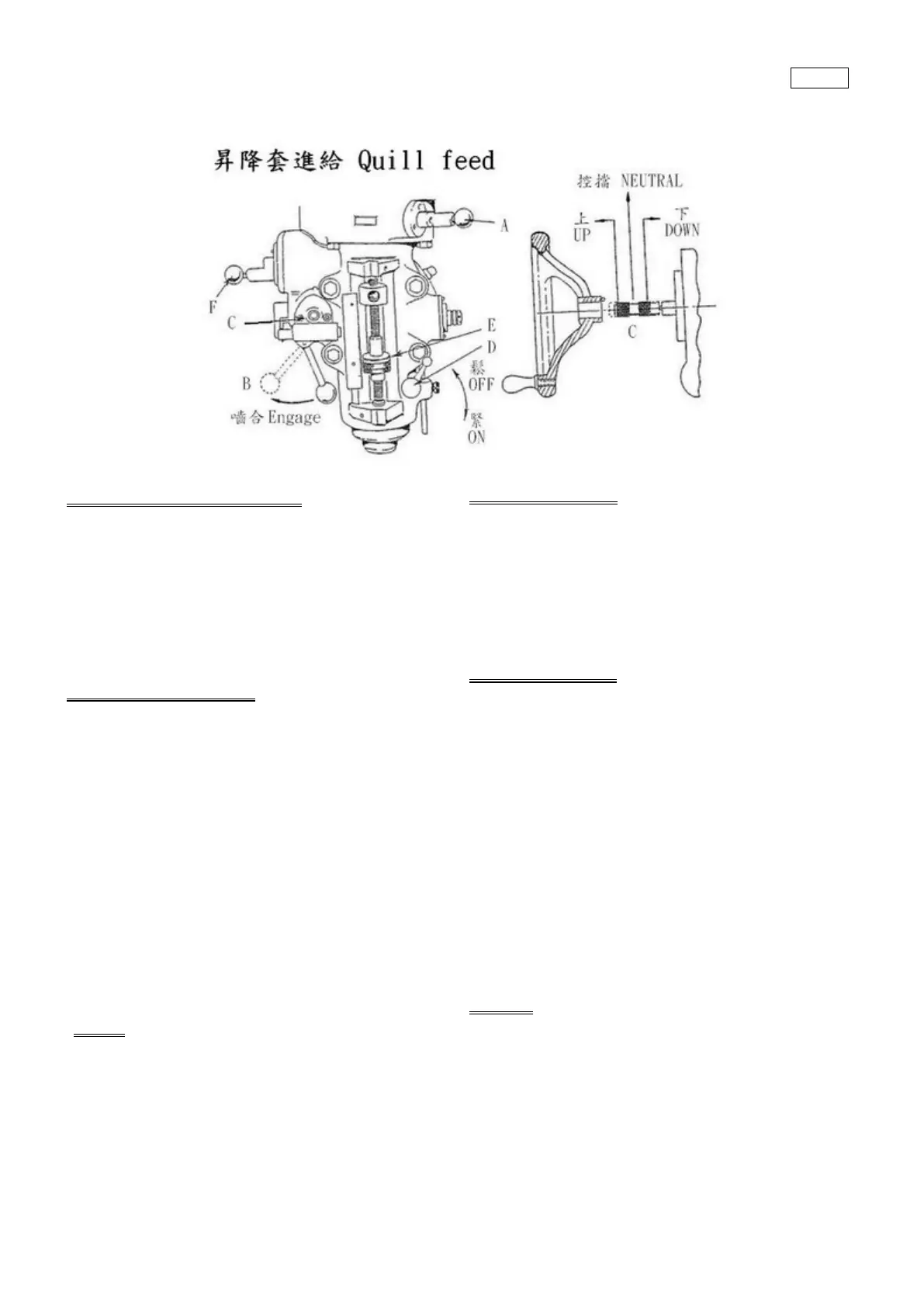

手動微量進給操作步驟
(1) 鬆開自動進給驅動柄‘A’
(2) 將‘C’置於中央(空擋)位置
(3) 板動進給控制桿‘B’使離合器嚙合
(4) 此時昇降套之進給，即可用手輪來
控制
自動進給操作步驟
最大鉆孔徑為 3/8” (9.5mm) (材料:鋼)
(1) 放鬆昇降套固定桿‘D’
(2) 調整游標指示環‘E’至所需要之深度
(3) 板動自動進給驅動柄‘A’(馬達要停
止)
(4) 由進給量控制柄‘F’選擇進給量
(5) 由進給方向控制鈕‘C’選定進給方
向
(6) 板動進給控制桿‘B’使離合器嚙合
(7) 這時昇降套即可行自動進給
注意:當主軸轉速超過 3000(轉/每分)
時，勿使用自動進給
Fine Hand Feed
(1) Disengage auto quill feed ‘A’
(2) Locate ‘C’ in mid (neutral) position.
(3) Engage feed trip lever ‘B’
(4) The quill is now under handwheel
control.
Automatic Feed
Maximum loading 3/8” (9.5mm)
(dia. Drill in steel)
(1) Ensure quill lock is off ‘D’
(2) Set micrometer dial to required depth
‘E’
(3) Engage auto quill feed ‘A’ (when
motor has stopped).
(4) Select feed rate ‘F’
(5) Select feed direction ‘C’
(6) Engage feed trip lever ‘B’
(7) The quill is now automatic feed.
NOTE: Do not engage quill feed ‘A’ over
3000 RPM
