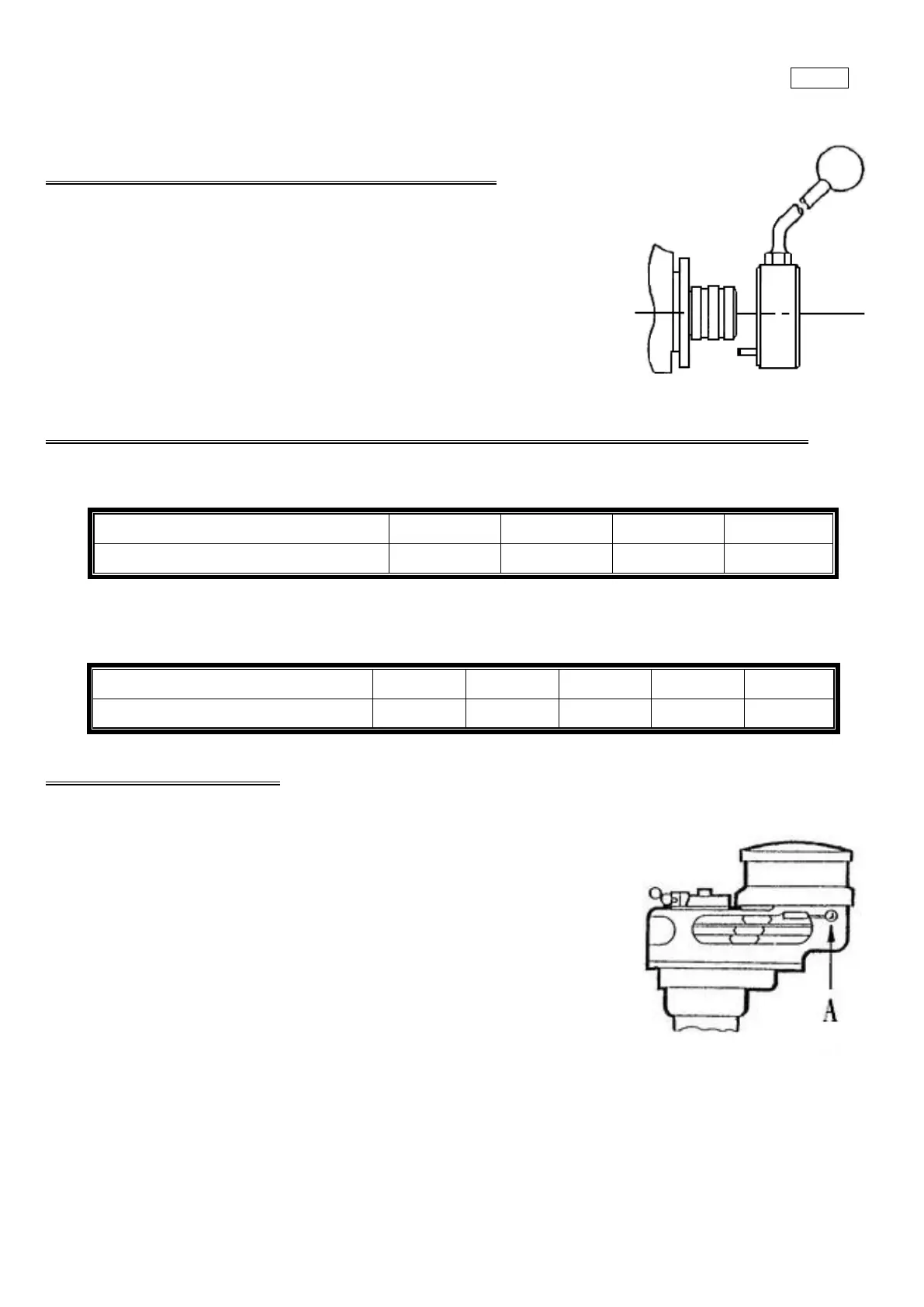

CH5 操作 Operation Original
36
昇降套快速手動進給 Quill sensitive hand feed
(1) 置手柄於輪轂上
Place the handle on the boss.
(2) 選擇最適當之位置
Select the most suitable position.
(3) 推動手柄直至定位銷嚙合
Push home until the locating pin engages.
主軸速度 (變速前停止馬達) Spindle speeds (Stop motor before changing speed)
機型
:2S 3H 4S (Model: 2S 3H 4S)
後列齒輪傳動 Back Gear
80
135
210
325
直接傳動 Direct
660
1115
1750
2720
機型
:5H 5HL (Model:5H 5HL)
後列齒輪傳動 Back Gear
60
95
155
255
415
直接傳動 Direct
535
835
1375
2240
3610
速度變換 Change speed
同範圍內之變速
Change speed within range
(1) 關掉電源
Isolate machine
(2) 放鬆 2 馬達固定桿‘A’
Slacken 2 motor lock levers ‘A’
(3) 向前移動馬達
Slide motor forward
(4) 將皮帶置入合適之皮帶輪溝內
Position belt on appropriate pulleys.
(5) 將馬達推向後方,使 V 形皮帶拉緊
Slide motor to the rear to tension vee belt.
(6) 鎖緊 2 馬達固定桿
Tighten 2 motor locking levers
