CH8 保養 Maintenance Original
52
8.4 前後螺桿調整 Cross screw adjustment

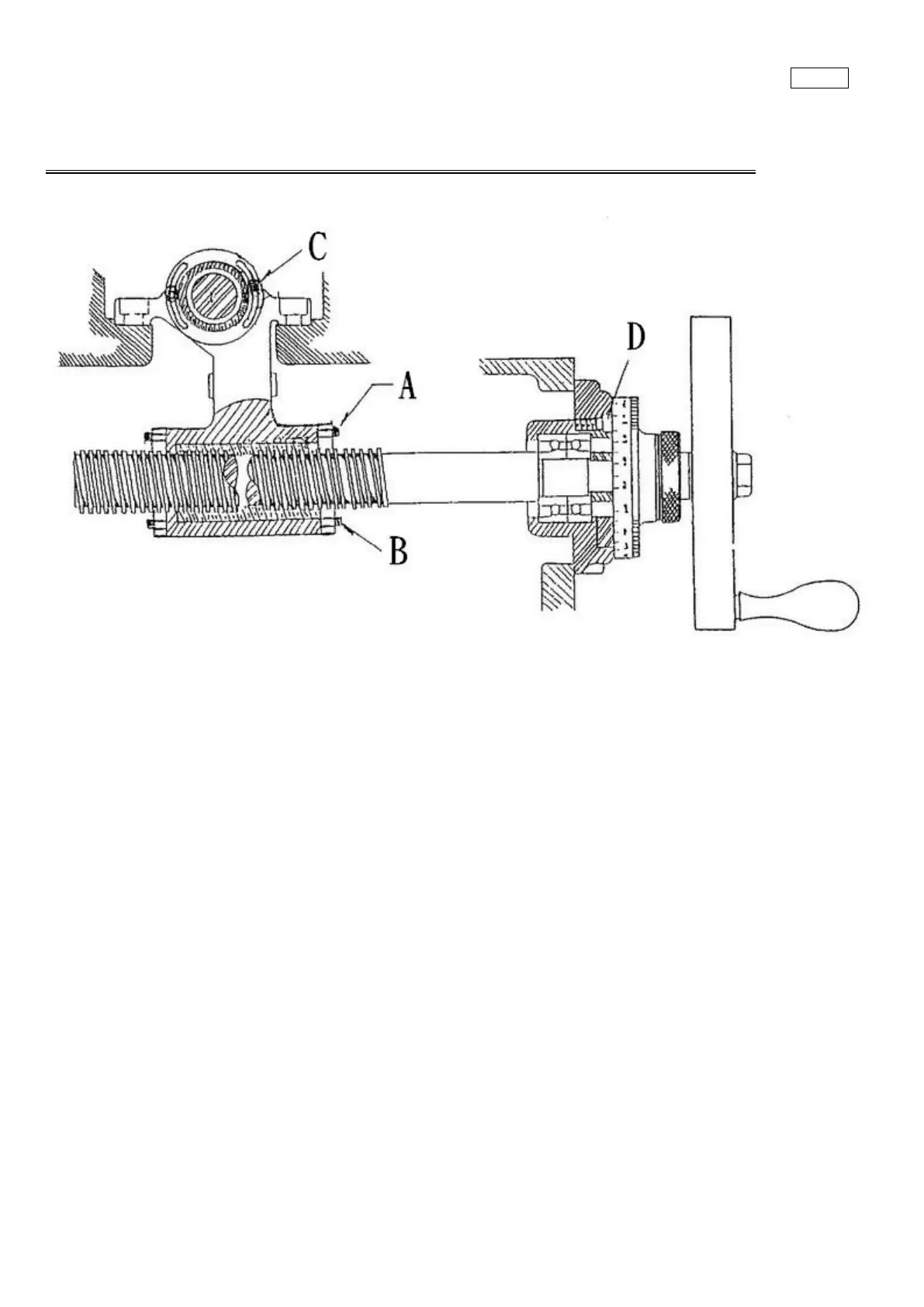

前後進給螺桿間隙調整法 CROSS SCREW BACKLASH ADJUSTMENT
(1) 轉動曲柄使鞍座位於中間位置
(2) 旋出四個螺絲 D
(3) 將鞍座拉向前,以露出螺絲 A B
(4) 螺絲 AB 旋出 1/2
(5) 逆時針旋轉螺帽 C,直至產生間隙
0.04 0.05為止
(6) 將固定螺絲 AB 鎖上
(7) 最後將鞍座移到昇降座之前方,重新
組合四個螺絲 D
(1) Crank the saddle to Mid position
(2) Withdraw 4 screws D
(3) Pull the saddle forward to expose
screws A & B
(4) Withdraw screw AB 1/2 a turn
(5) Turning nut C counter clockwise until
0.04or 0.05space is obtained
(6) Lock screw A and B
(7) Finally crank the saddle to the front of
the knee and replace 4 screws D.
