Argo 2S User Manual

CH8 保養 Maintenance Original
51

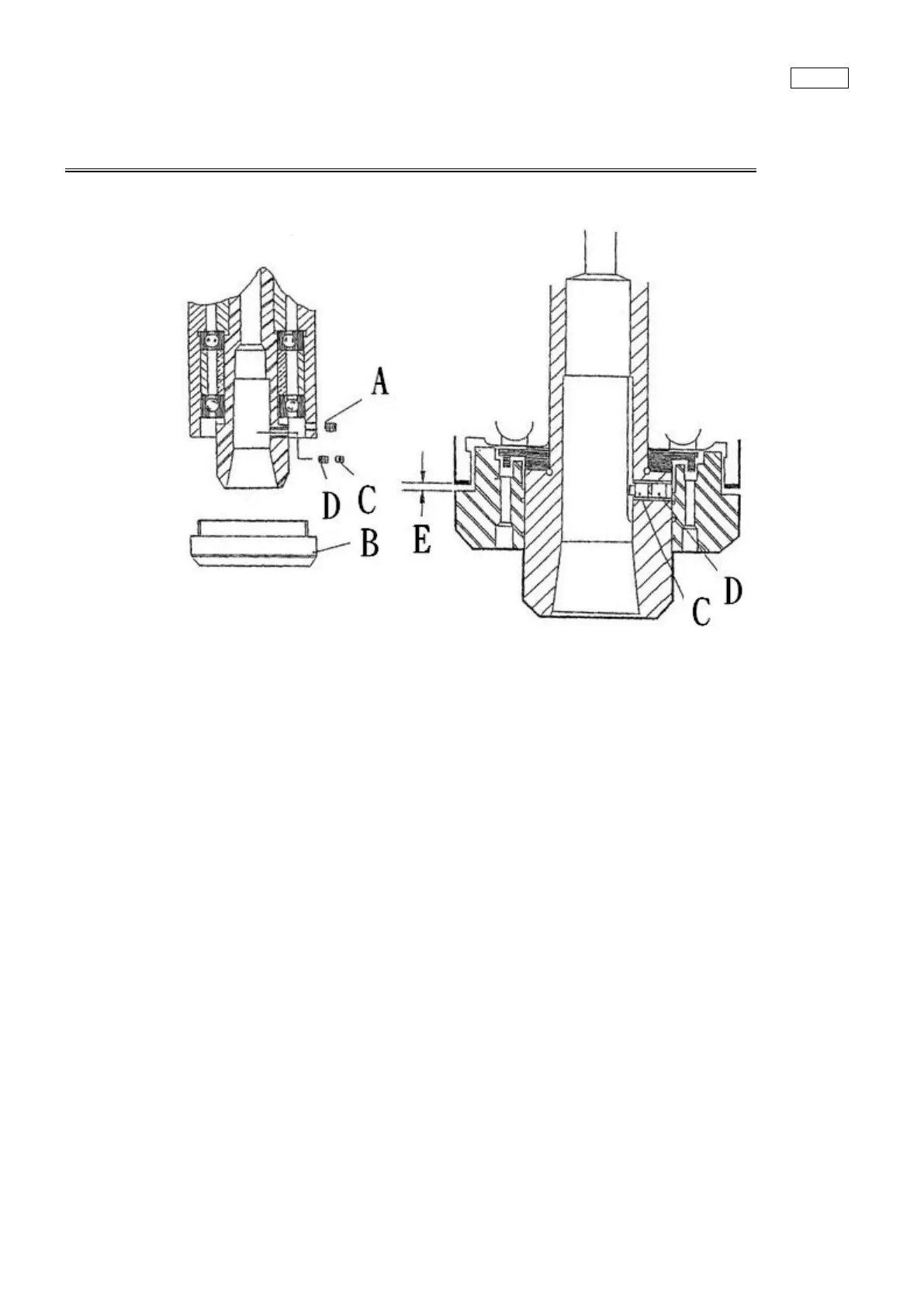

筒夾校準螺絲更換法 COLLET ALIGNING SCREW REPLACEMENT
(1) 用氈筆在昇降套和主軸端蓋 B 劃
一參考線
(2) 拆下固定螺絲 A
(3) 取下端蓋 B
(4) 取下固定螺絲 C與筒夾校準螺絲 D
(5) 更換 D 套入 R8 筒夾，並檢查，勿
使螺絲末端碰到導槽之底部
(6) 更換固定螺絲 C
(7) 重新裝上 B，檢查參考線是否對準
(8) 裝上固定螺絲 A
注意:不可鎖太緊兔造成變型。
(9) 檢查間隙 E (0.003”=0.08mm)
(1) Use felt pen, mark reference line on
quill and nose cap B
(2) Remove set screw A
(3) Unscrew nose cap B
(4) Remove lock screw C and collet
aligning screw D.
(5) Replace D, insert R8 collet and check
that the dog on the end of the screw
does not foul on the bottom of the
guide slot.
(6) Replace lock screw C
(7) Replace nose cap B, check felt pen
markings for correct alignment
(8) Replace set screw A
(9) Caution: do not overtighten as this will
cause distortion
(10) Check gap E. (0.003”=0.08mm)
