Argo 2S - Page 53

CH8 保養 Maintenance Original
50

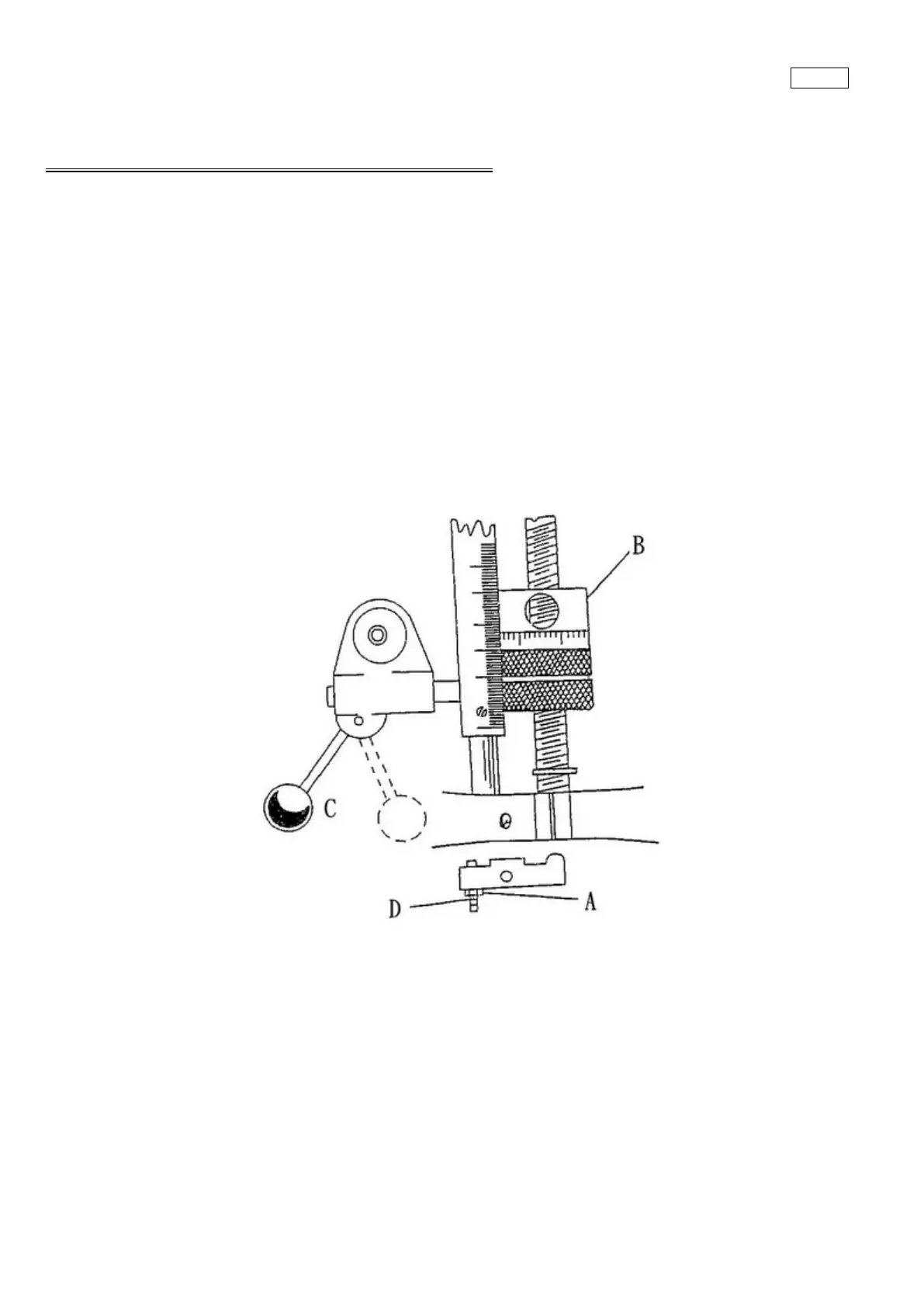

進給控制調整法 FEED TRIP ADJUSTMENT
(1) 放鬆固定螺帽 A
(2) 嚙合把手 C
(3) 調整微調螺帽至碰到昇降套停止塊 B
(4) 慢慢轉動調整螺絲 D 直到桿 C 跳離
(5) 在此點鎖緊固定螺帽
(6) 檢查跳動的動作是否正確
(1) Release locknut A
(2) Engage trip handle C
(3) Adjust micro nuts against quill stop B
(4) Slowly turn adjusting screw D until
lever C trips
(5) At this point secure locknut A
(6) Check that smart trip action is obtained
