Argo 2S User Manual

CH8 保養 Maintenance Original
49

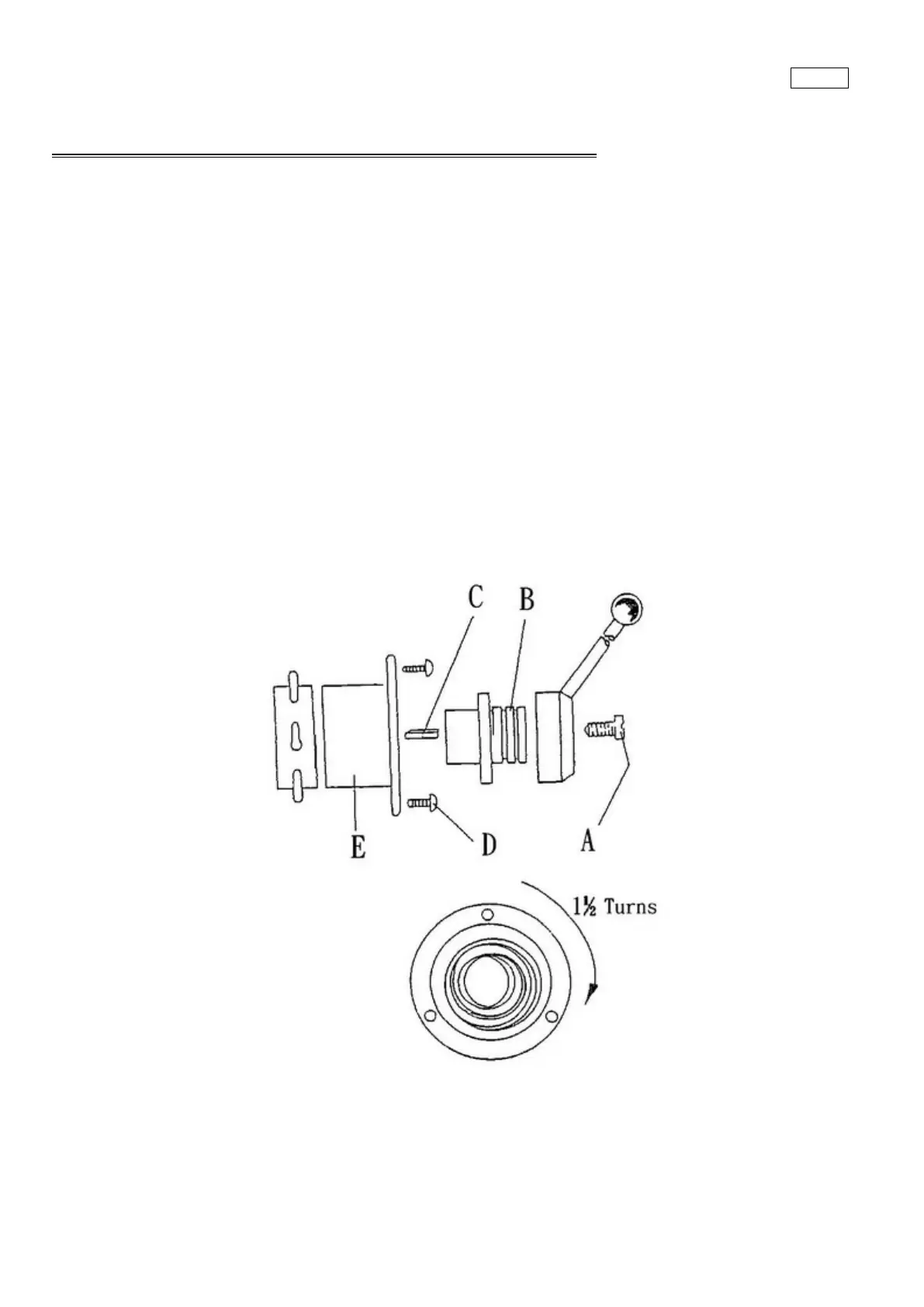

回覆彈簧更換法 BALANCE SPRING REPLACEMENT
(1) 移動昇降套於頂部，並固定住
(2) 拆下螺絲 A ，轂 B 及鍵 C
(3) 拆下螺絲 D，慢 慢轉 動座 E 使用彈簧
張力得以釋放
(4) 將彈簧之一端從小齒輪軸的釘上提
出
(5) 逆時針轉動座 E (從頭部鑄件來看)
(6) 從座內取出彈簧並更換之
(7) 重新將彈簧組合於座之鑄件上，並應
順時針轉動座，直到彈簧進入小齒輪
軸之釘上。
(1) With quill, at top of movement apply
quill lock.
(2) Remove screw A, hub B, and key C.
(3) Remove screws D, allowing housing
to rotate slowly releasing spring
tension.
(4) Lift end of spring from peg on the
pinion shaft.
(5) Rotate housing E anti-clockwise from
head casting.
(6) Remove spring from housing and
replace.
(7) Refit spring to main housing casting
turning housing clockwise until spring
locates on peg in pinion shaft.
