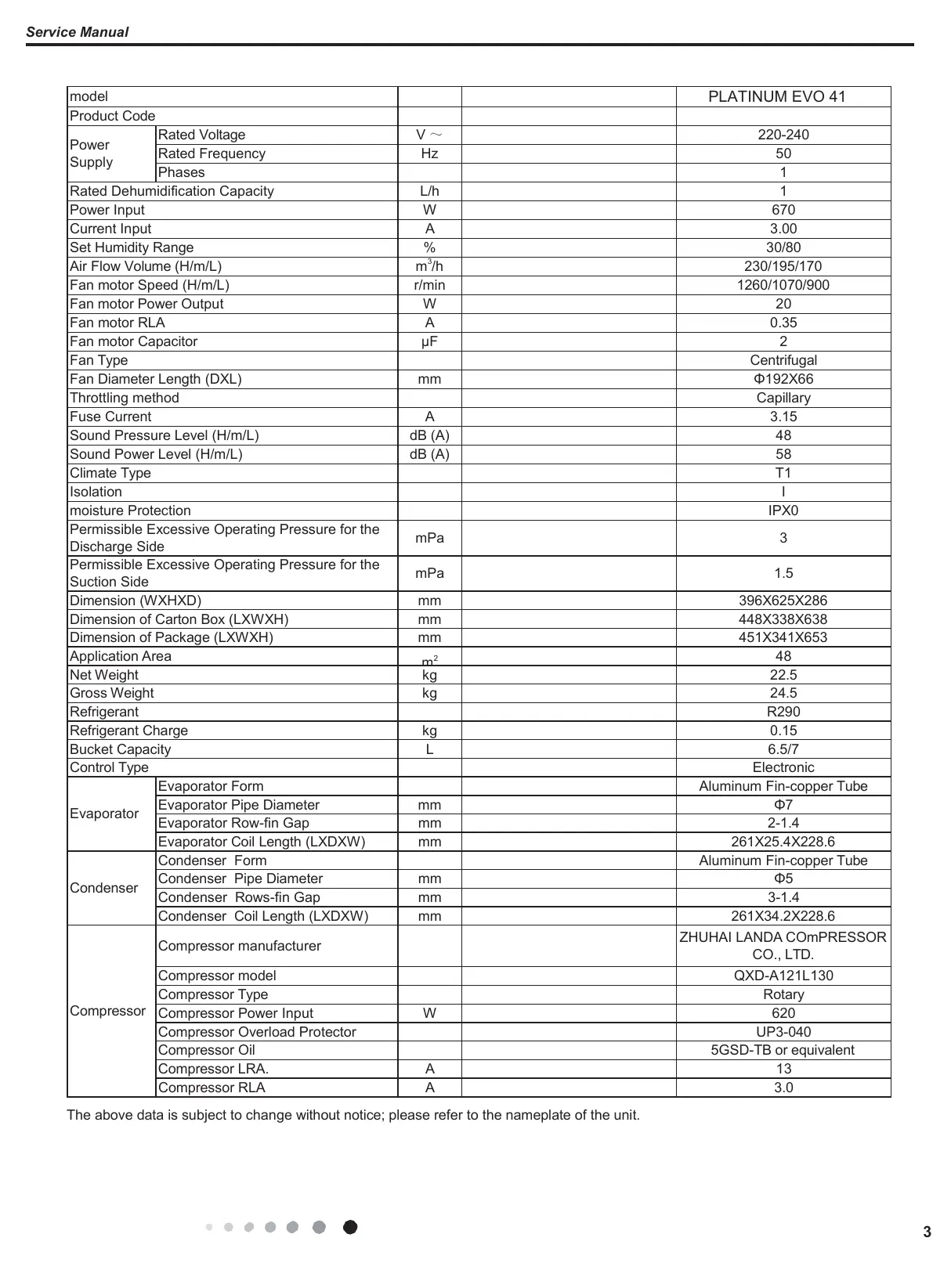

Service Manual
3
model
PLATINUM EVO 41
Product Code
Power
Supply
Rated Voltage
V ～
220-240
Rated Frequency
Hz
50
Phases
1
Rated Dehumidification Capacity
L/h
1
Power Input
W
670
Current Input
A
3.00
Set Humidity Range
%
30/80
Air Flow Volume (H/m/L)
m
3
/h
230/195/170
Fan motor Speed (H/m/L)
r/min
1260/1070/900
Fan motor Power Output
W
20
Fan motor RLA
A
0.35
Fan motor Capacitor
μF
2
Fan Type
Centrifugal
Fan Diameter Length (DXL)
mm
Φ192X66
Throttling method
Capillary
Fuse Current
A
3.15
Sound Pressure Level (H/m/L)
dB (A)
48
Sound Power Level (H/m/L)
dB (A)
58
Climate Type
T1
Isolation
I
moisture Protection
IPX0
Permissible Excessive Operating Pressure for the
Discharge Side
mPa
3
Permissible Excessive Operating Pressure for the
Suction Side
mPa
1.5
Dimension (WXHXD)
mm
396X625X286
Dimension of Carton Box (LXWXH)
mm
448X338X638
Dimension of Package (LXWXH)
mm
451X341X653
Application Area
m
2
48
Net Weight
kg
22.5
Gross Weight
kg
24.5
Refrigerant
R290
Refrigerant Charge
kg
0.15
Bucket Capacity
L
6.5/7
Control Type
Electronic
Evaporator
Evaporator Form
Aluminum Fin-copper Tube
Evaporator Pipe Diameter
mm
Φ7
Evaporator Row-fin Gap
mm
2-1.4
Evaporator Coil Length (LXDXW)
mm
261X25.4X228.6
Condenser
Condenser Form
Aluminum Fin-copper Tube
Condenser Pipe Diameter
mm
Φ5
Condenser Rows-fin Gap
mm
3-1.4
Condenser Coil Length (LXDXW)
mm
261X34.2X228.6
Compressor
Compressor manufacturer
ZHUHAI LANDA COmPRESSOR
CO., LTD.
Compressor model
QXD-A121L130
Compressor Type
Rotary
Compressor Power Input
W
620
Compressor Overload Protector
UP3-040
Compressor Oil
5GSD-TB or equivalent
Compressor LRA.
A
13
Compressor RLA
A
3.0
The above data is subject to change without notice; please refer to the nameplate of the unit.
