Argo PLATINUM EVO 21 - PCB Printed Diagram

Service Manual
8
1
2
3
4
6

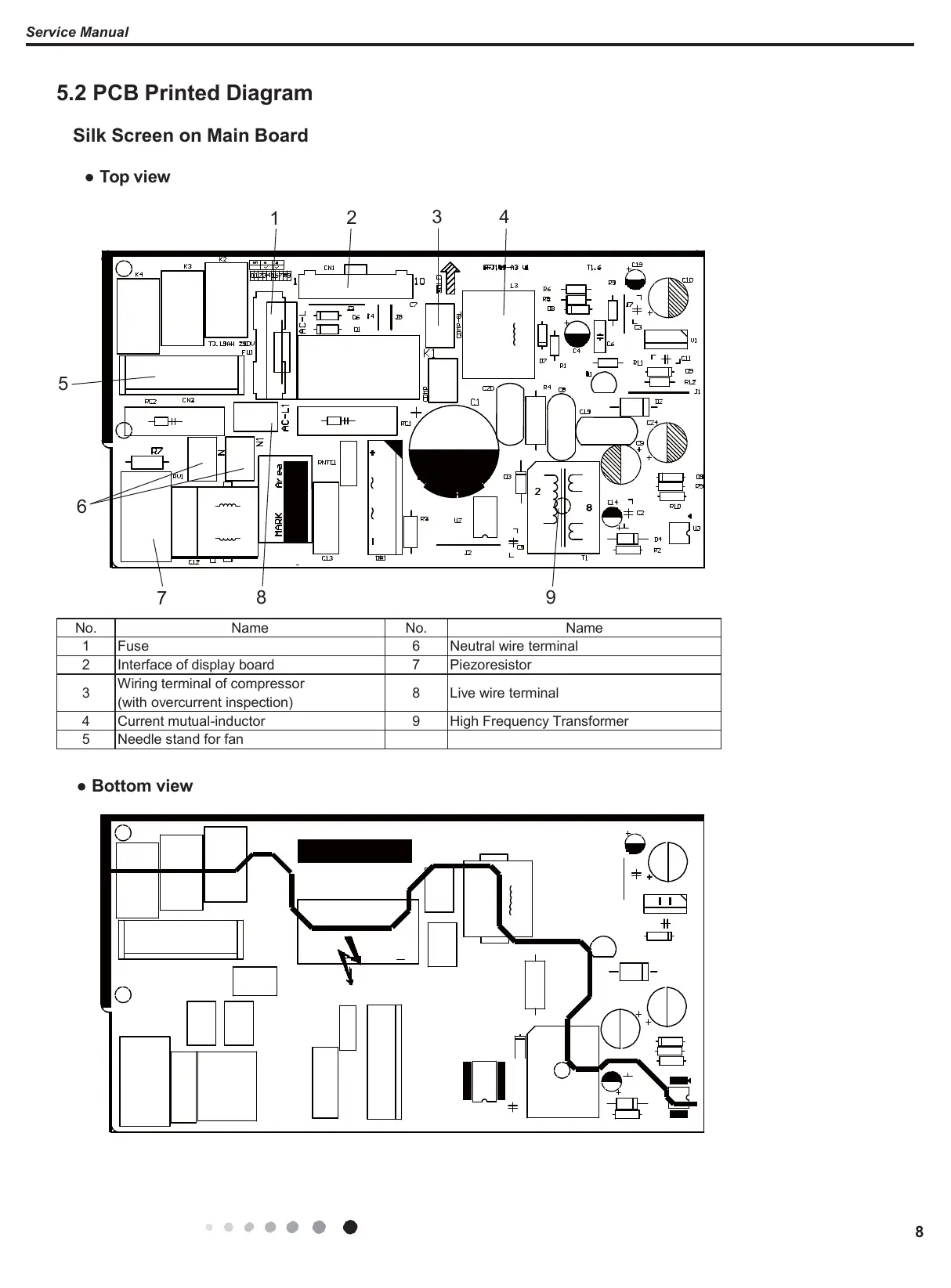

5.2 PCB Printed Diagram
Silk Screen on Main Board
● Top view
5
7
8 9
No.
Name
No.
Name
1
Fuse
6
Neutral wire terminal
2
Interface of display board
7
Piezoresistor
3
Wiring terminal of compressor
(with overcurrent inspection)
8
Live wire terminal
4
Current mutual-inductor
9
High Frequency Transformer
5
Needle stand for fan
● Bottom view
