maintenance
22

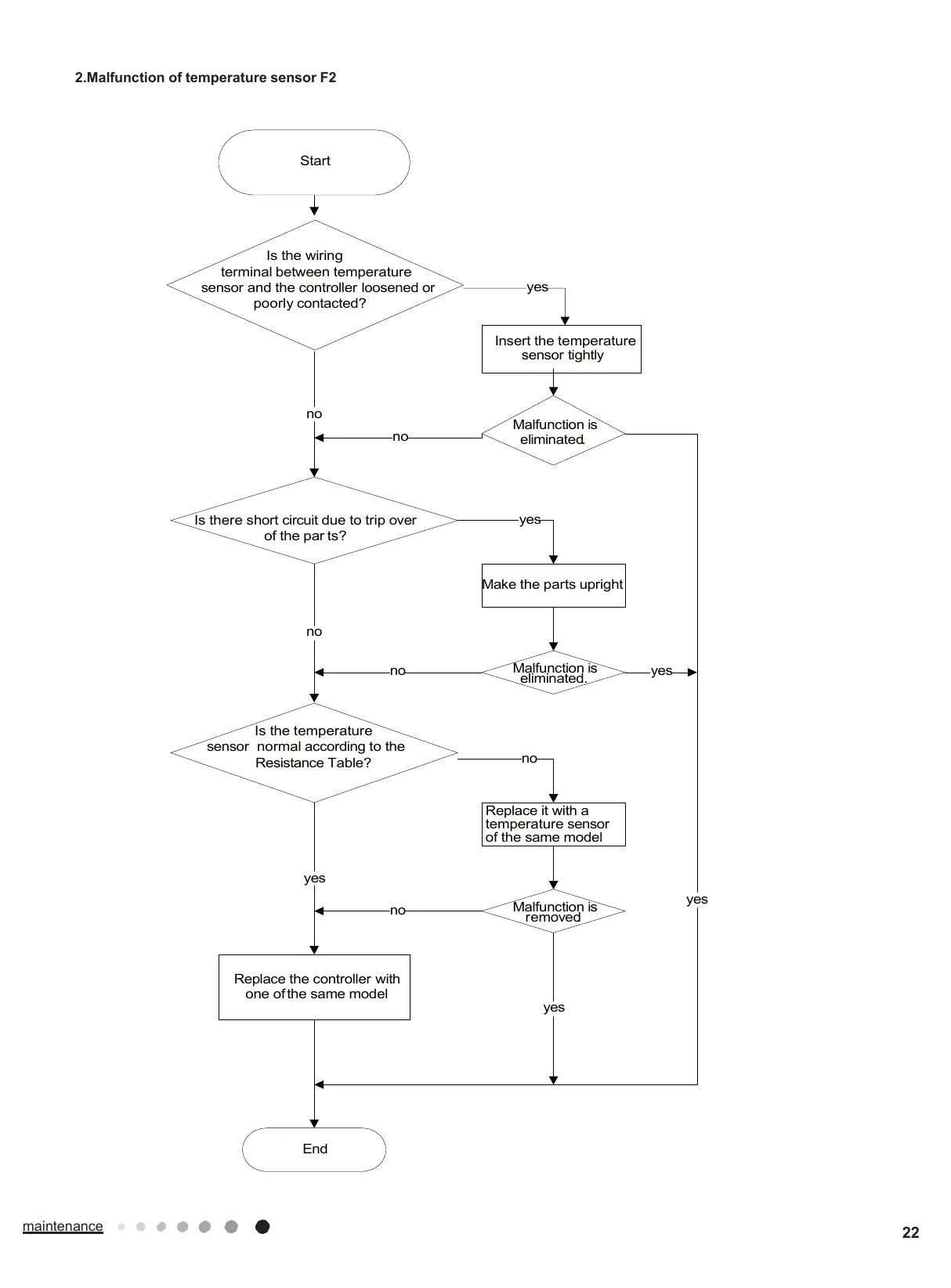

2.Malfunction of temperature sensor F2
Insert the temperature
sensor tightly
Make the parts upright
Replace it with a
temperature sensor
of the same model
Replace the controller with
one of the same model
Start
Is the wiring
terminal between temperature
sensor and the controller loosened or
poorly contacted?
yes
no
no
Malfunction is
eliminated.
Is there short circuit due to trip over
of the par ts?
yes
no
no
Malfunction is
eliminated.
yes
Is the temperature
sensor normal according to the
Resistance Table?
no
yes
yes
no
Malfunction is
removed.
yes
End
