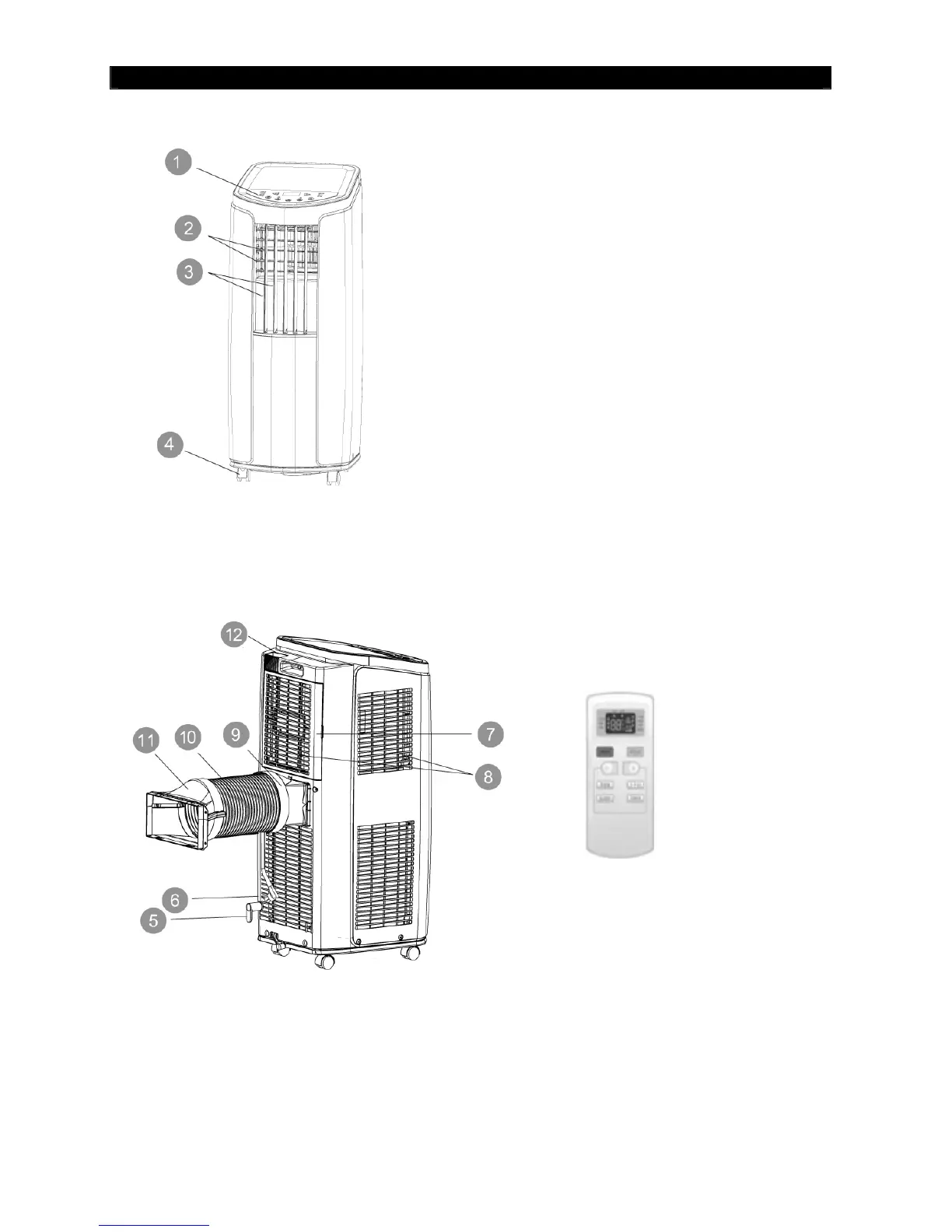

DESCRIPTION OF THE APPLIANCE
FRONT VIEW
REAR VIEW
Min/max operating limits (internal temperature)
Cooling: 16 °C DB / 35 °C DB
Dehumidification: 16 °C DB / 35 °C DB
Cooling mode room temperature adjustment range: 16 °C DB / 30 °C DB
1) CONTROL PANEL AND FUNCTION BUTTONS
WITHOUT REMOTE CONTROL
2) HORIZONTAL FINS AND AIR INTAKE
3) VERTICAL FINS AND AIR INTAKE
4) WHEELS
5) CABLE CLAMP
6) PLUG
7) FIN
8) AIR INTAKE
9) AIR EXPULSION HOSE END FITTING
10) AIR EXPULSION TUBE
11) END FITTING FOR WINDOW
12) REMOTE CONTROL COMPARTMENT
13) REMOTE CONTROL
