V 10/19
78
9000 12000
18000 24000

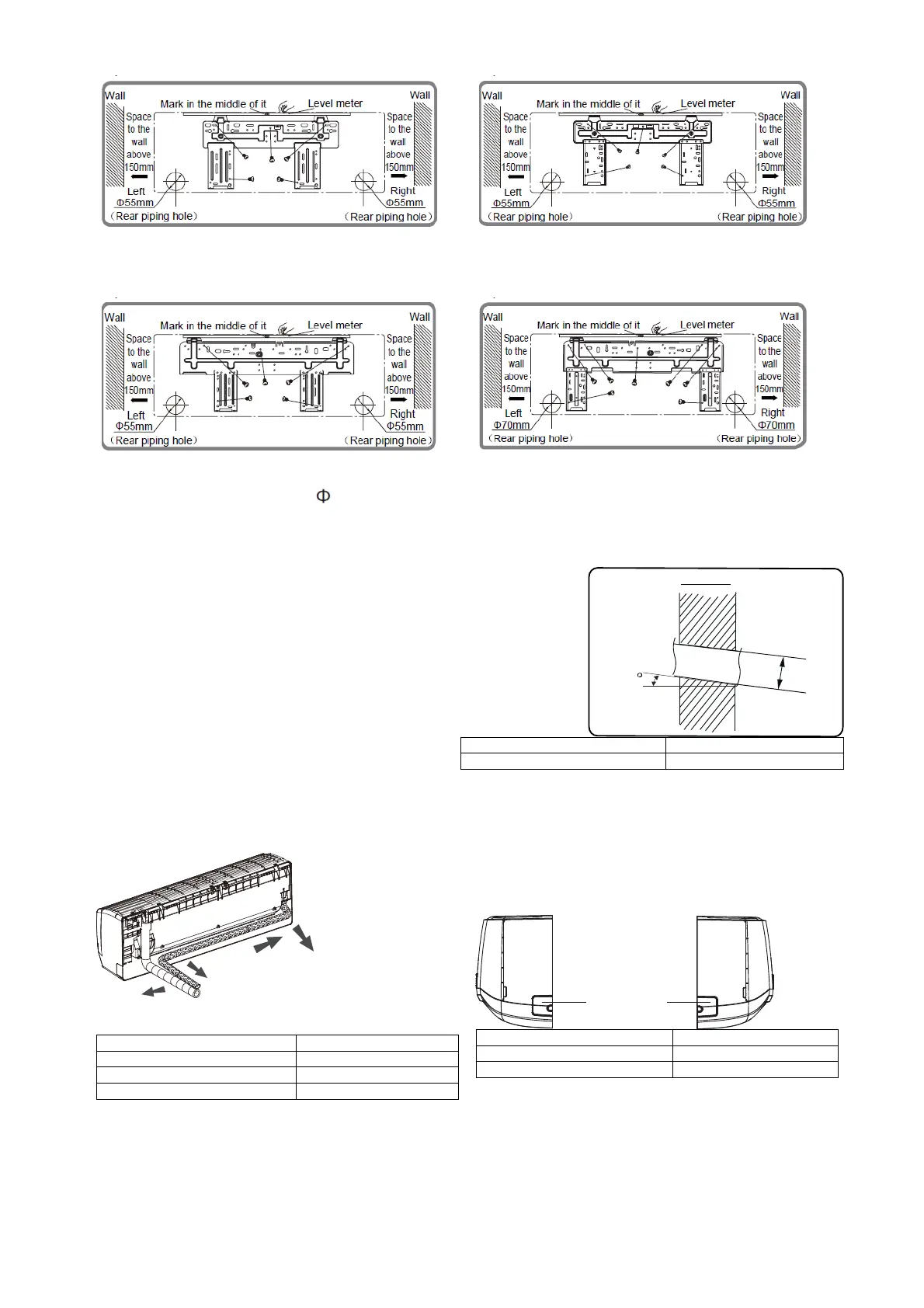

Drill a piping hole of diameter 55 or 70 at the chosen location for the outlet pipe. To allow for proper
drainage, the piping hole in the wall must slant slightly downwards to the outdoor side, with a gradient
of 5 – 10°.
N.B.:
• Take the necessary safety measures when
drilling the hole and do not allow dust to enter.
• The plastic wall plugs are not supplied but
must be purchased on site.
Interno Indoors
Outdoors
Step four: outlet pipe
The pipe can be brought out in various different
directions: right, rear right, left or rear left.
destra right
Posteriore destra rear right
sinistra left
Posteriore sinistra rear left
Once you have selected the direction of the
outlet (left or right), drill the corresponding hole
at the bottom.
destra right
foro da praticare hole to be drilled
sinistra left
Interno
5-10
Esterno
Φ55/
Φ70
sinistra
posteriore
sinistra
destra
posteriore
destra
foro da
praticare
sinistra
destra
