Argon 18 E-119 - Remove Stem Cap; Remove Bottle Cage Mount

5
Démontageetempaquetage
E-119TRI+DISC: travel guide
REGULAR POSITION
FORWARD POSITION
WITHOUT WATER BOTTLE MOUNT

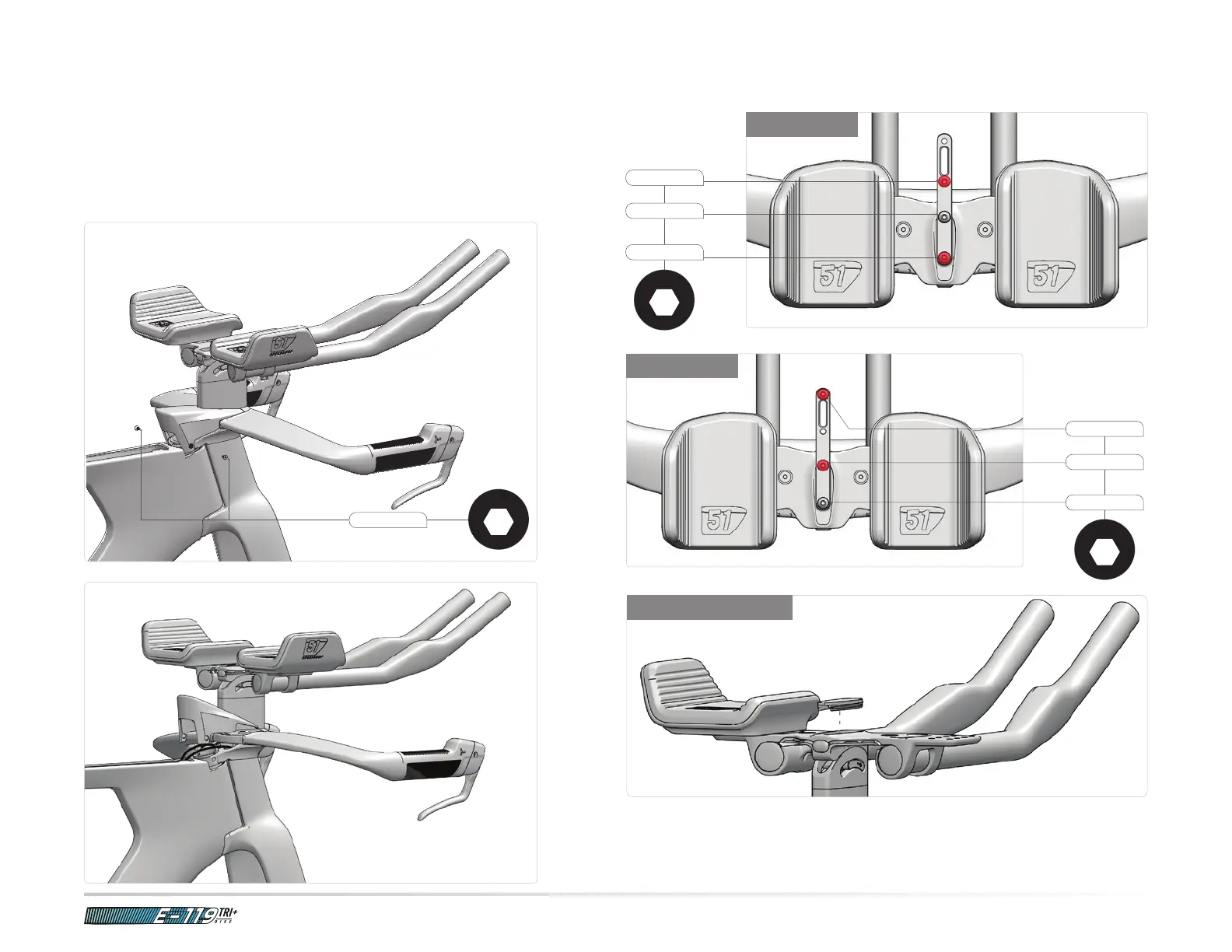

Removethestemcap
1. Remove both M3 x 6mm stem cap screws.
2. Lift the rear of the stem cap and pull backward until the front edges are clear
of the first spacer.
3. Remove the cap and place the stem cap and screws in your travel bag.
Removethebottlecagemount
1. Unscrew the water bottle cage and the mount.
2. Remove the bridge plug if the mount is not being used.
M5 x 12mm
M5 x 14mm
M5 x 8mm
M5 x 14mm
M5 x 8mm
M5 x 12mm
M3 x 6mm
