Argon 18 E-119 - Tighten Handlebar Bridge; Install Bottle Cage Mount

9
E-119TRI+DISC: travel guide
Installthebottlecagemount
M6 x 18mm
1. Adjust the bridge angle as noted while disassembling.
2. Tighten both M6 x 30mm screws to 9 Nm.
Tightenthebridge

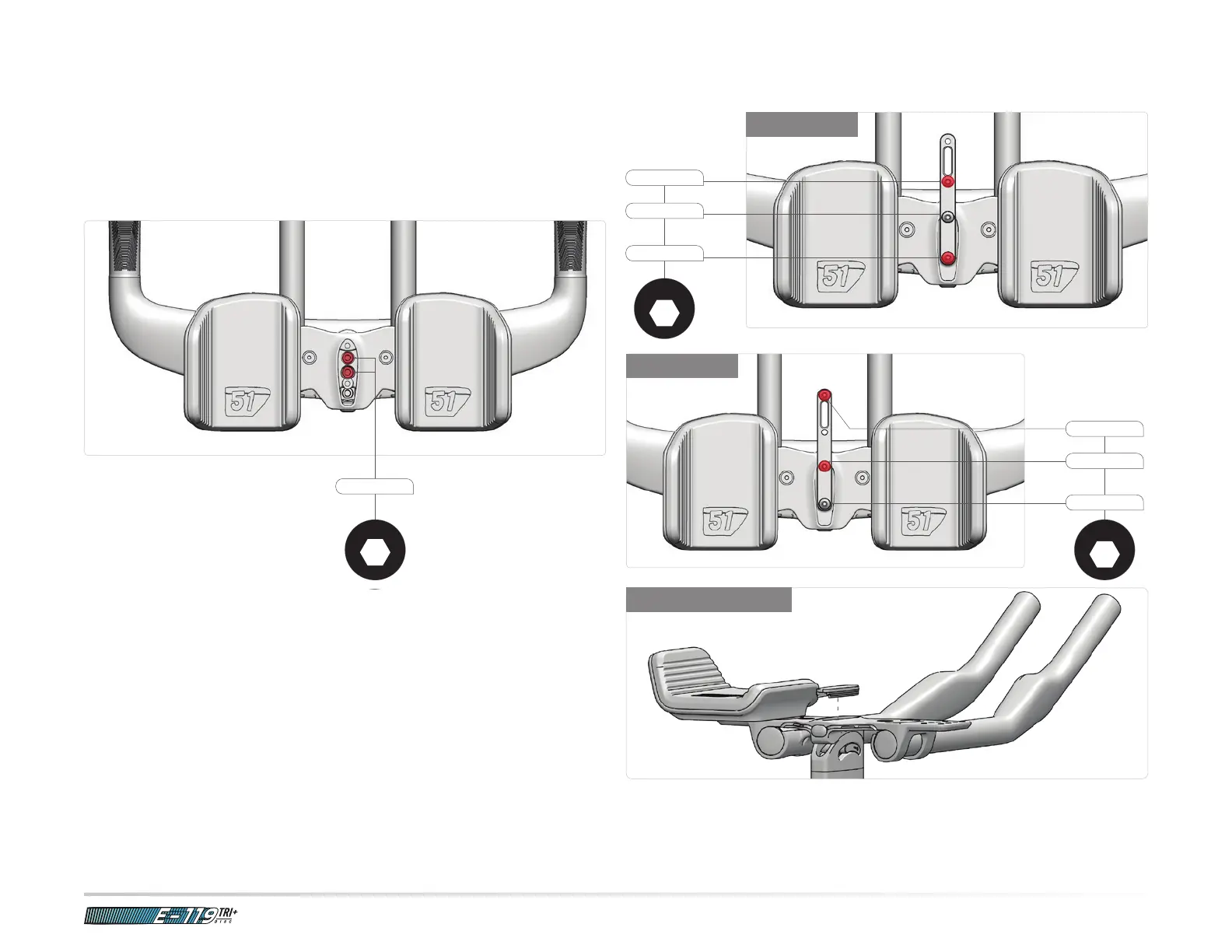

1. Install the water bottle mount on the bridge, using the grey M5 x 12mm screw.
Tighten it to 2 Nm.
2. Screw the water bottle cage onto the mount at the desired position using the
red screws. Tighten both screws to 2 Nm.
3. Insert the bridge plug if the mount is not being used.
REGULAR POSITION
FORWARD POSITION
WITHOUT WATER BOTTLE MOUNT
M5 x 14mm
M5 x 8mm
M5 x 12mm
M5 x 12mm
M5 x 14mm
M5 x 8mm
reassembly
