Argon 18 E-119 - Loosen Handlebar Bridge; Remove Handlebar Bridge

6 E-119TRI+DISC: travel guide
M6 x 18mm
1. Record your bridge angle. __________________ . Angles are laser etched on
the swivel spacer and beam.
2. Loosen the two M6 x 18mm swivel screws (only one turn) just
to allow angle movement.
3. Unplug the shifter from the junction box or Blipbox, if you have
an electronic build.

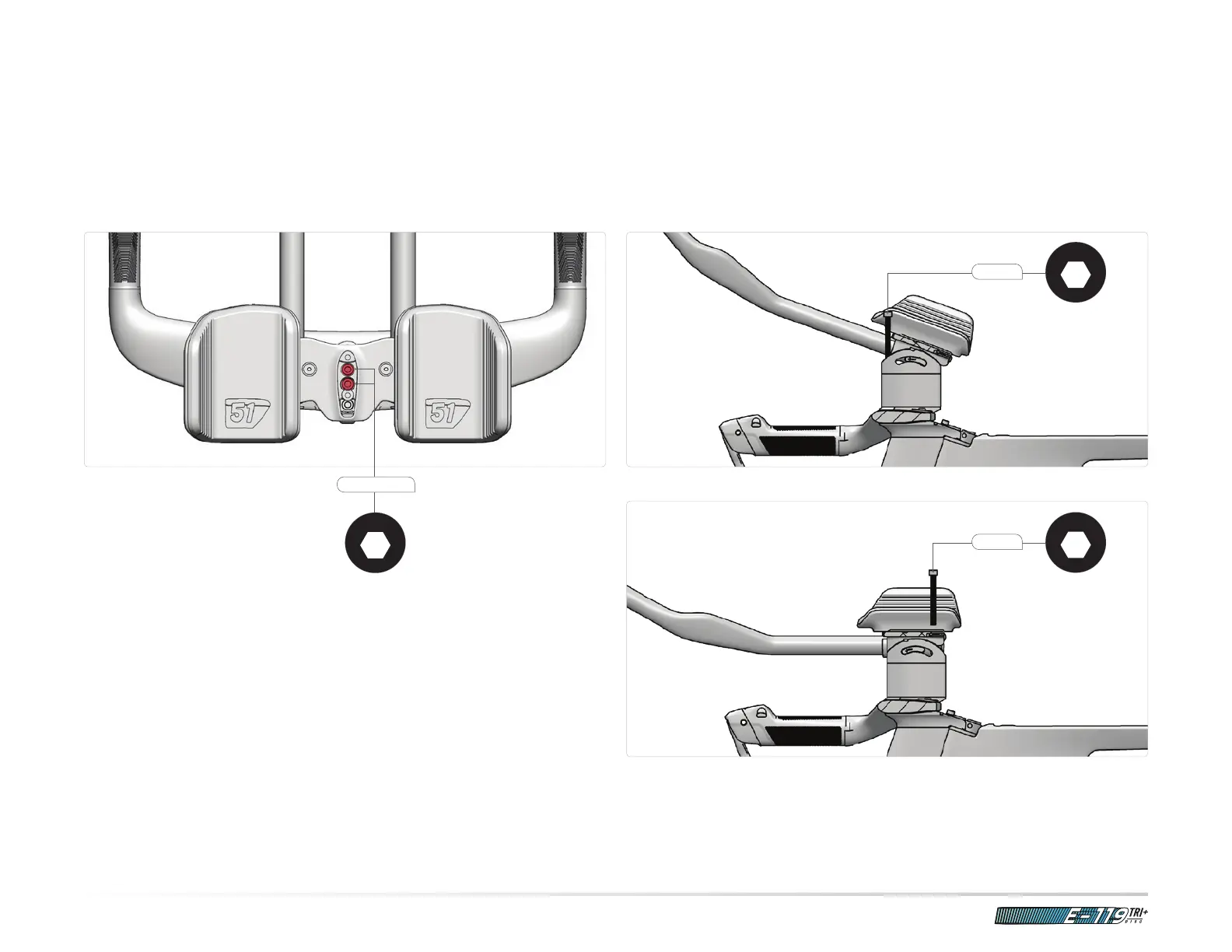

Loosenthebridge Removethebridge
1. Tilt the bridge backward to access the front spacer M6 screw.
2. Remove the front spacer screw.
3. Tilt the bridge forward to access the rear spacer M6 screw.
4. Remove the rear spacer screw.
5. Pack the bridge, spacers and screws in the travel bag.
M6
M6
Disassemblyandpacking
