FreewayCAM Install Guide
POWER SPECIFICATIONS:
The required input voltage is model dependent, please use the proper input according to your
model! Please consider voltage drop if you use cables!
Camera with HD sensor Camera with FullHD sensor
AC Input isolated 24 - 28V AC (sinusoidal)
Power (typical)* 10 – 19 W 11 – 26 W
Power (max. / max. with heating) 25 / 28 W 26 / 29 W
Over-current Protection by fuse
* - Depending on usage and configuration
TRIGGER SPECIFICATIONS:
• Input: min. 5V, max. 12V Logic Output: min. 5V, max. 12V, max. 10mA
• Pulse width: min. 1 ms
NOTE: Be aware of the polarity.

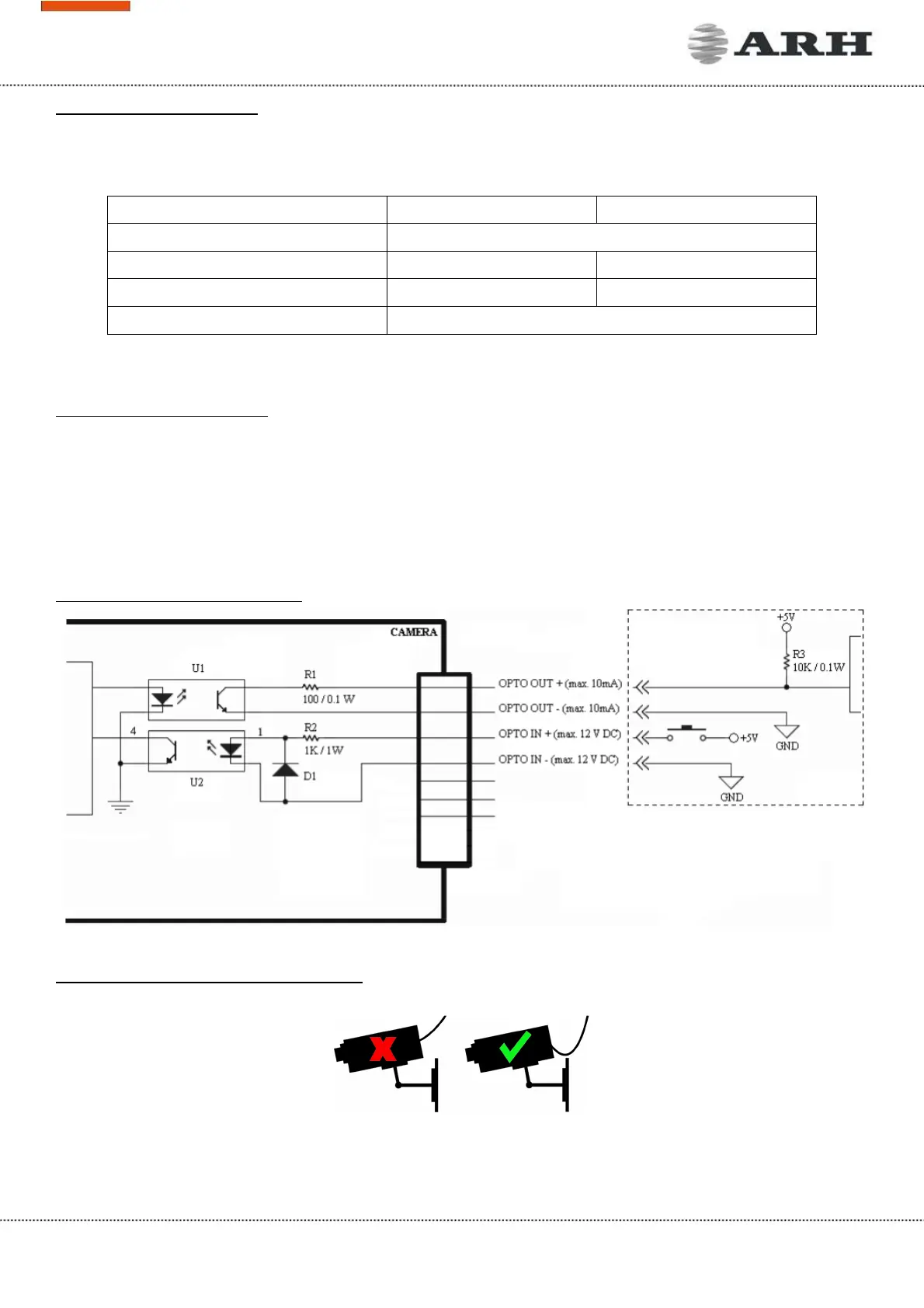

SCHEMATIC FOR TRIGGERING:
SERIAL CONNECTION SPECIFICATION:
The serial port of the camera complies with the RS 232/485 standard.
Route the cable according to the image
to avoid collecting rainwater at the socket.
EXTERNAL WIRING SCHEMATIC
