FreewayCAM Install Guide

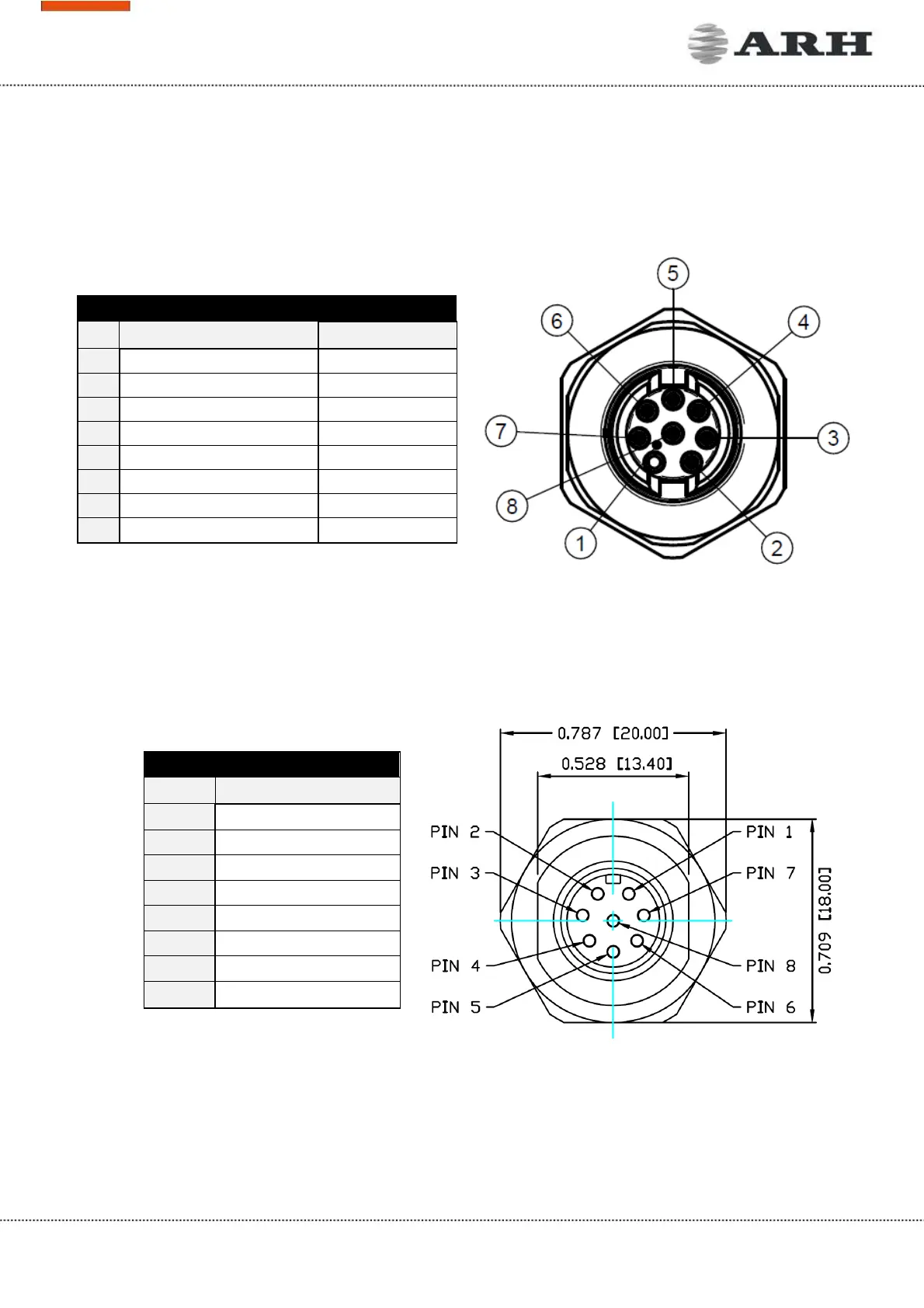

IO2: 8 Pole I/O Connector
Pin
Function Wire colour
1 RB_USER
white
2 OPTO_2_OUT_G
brown
3 TA_USER
green
4 OPTO_2_OUT_S
yellow
5 OPTO_2_IN_G
grey
6 OPTO_2_IN_S
pink
7 GND_RADAR
blue
8 12V_RADAR
red
Circular ethernet
Pin Function
1
D3-
2
D4+
3
D4-
4
D1-
5
D2+
6
D1+
7
D3+
8
D2-
