Arico TC5E - 2-5 Connector Wiring

ARICO Technology Co., Ltd. -13-
2-5 Connector wiring
Cabinet connector wiring are divided into A, B and C type as below:

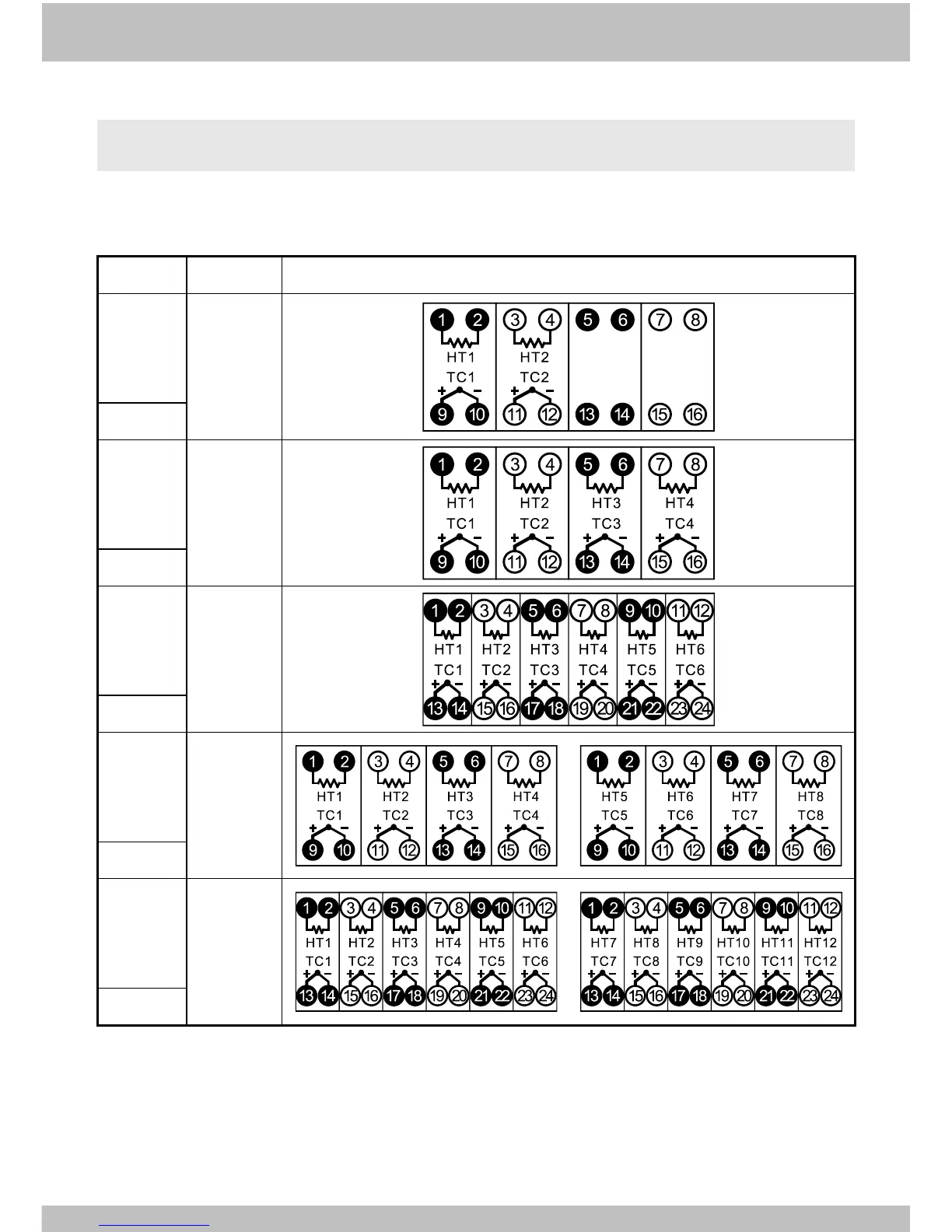

A type wiring
ZONE
CONN.
CONNECTOR ASSIGNMENT
2
16*1
A16-2
4
16*1
A16-4
6
24*1
A24-6
8
16*2
A16-8
12
24*2
A24-12
