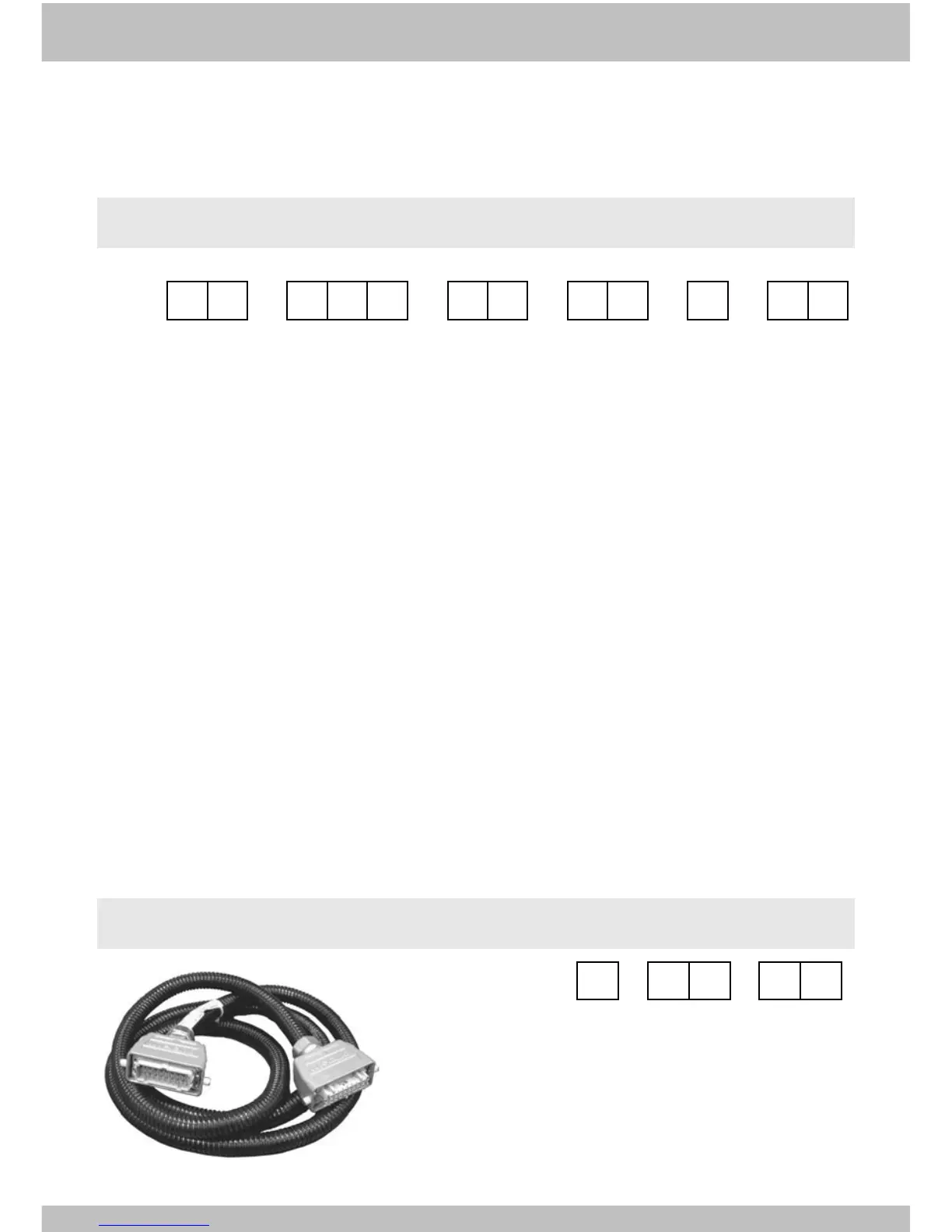

Chapter 3 ORDER CODE
3-1 Cabinet: T5A
T5A
-
-
-
-
-
a
b
c
d
e
f
a：Zone
01：1 zone
02：2 zones
04：4 zones
06：6 zones
08：8 zones
12：12 zones
b：Housing and Hood
SHB：Housing is single hook, hood is single button*
DHB：Housing is dual hook, hood is dual button
DBH：Housing is dual button, hood is dual hook
c：Power Wiring
A0：A type 3-phase 4-wire 200~242VAC
B0：B type 3-phase5-wire 380~415VAC
A1：A type 3-phase 4-wire 200~242VAC*
B1：B type 3-phase5-wire 380~415VAC*
*：For 1 zone T5A01
3-2 Cable: T5C
Order code：
T5C
-
-
a
b
c
a: Wiring
b: Pins--4, 16, 24
c: Length(M)
◎Standard Length 3M
d
：
Power Cable Length
03
：
3m (standard)
e
：
O/P Connector Wiring
A
：
A t y p e
B
：
B t y p e
C
：
C t y pe
f
：
Cable Wiring
00
：
Without connection cable
03
：
3m (standard)
