Ariens 911513 - Assembly Instructions; Carton Contents; Assembly Steps

GB - 11

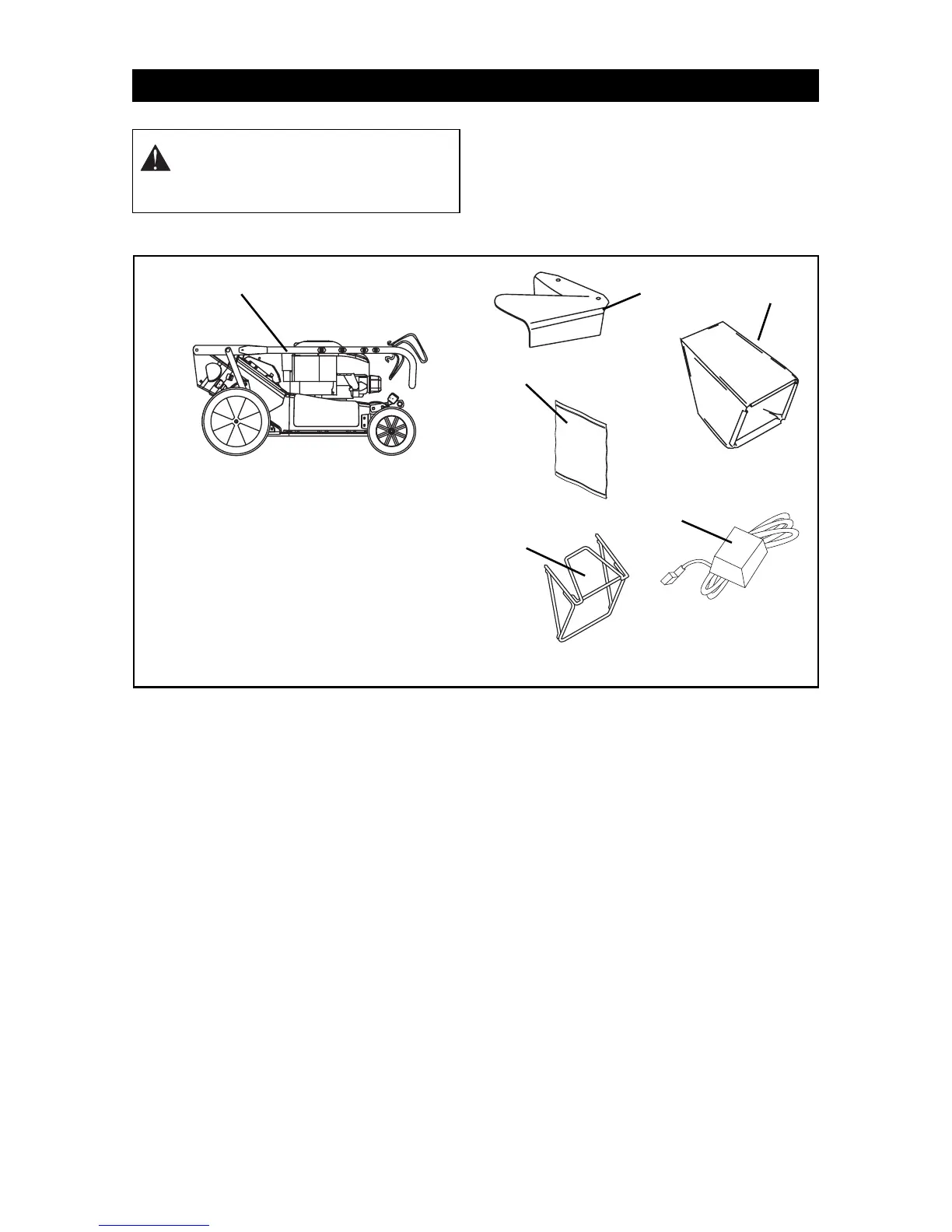

CARTON CONTENTS
ASSEMBLY
1. Unfold and adjust handlebar. See Service
and Adjustments.
2. Self-Propelled Models: The speed control
rod is shipped on the handlebar with
hardware in position. Remove hair pin,
insert bent end of rod through hole in
swivel of speed control bell crank, and
retain with hair pin (Figure 5).
3. Fill engine crankcase with oil. See engine
manual.
4. Assemble grass bag onto bag frame.
5. Set-up mower for bagging, side
discharge or mulching. See Mower Set-
Up in Operation Section.
6. Fully charge battery (electric start
models). See Service and Adjustments .
7. Fill fuel tank. See Operation Section.
8. Check the engine/blade control feature.
Try starting the engine without the
engine/blade control held against the
handlebar. Engine must not start. If
engine starts, stop engine and adjust or
repair engine/blade control. See Service
and Adjustments .
ASSEMBLY
CAUTION: AVOID INJURY. Read
and understand Assembly ,
Operational , Fuel and Battery
Safety Rules before proceeding.
Figure 4
Literature
Pack
1. Mower Unit
2. Side Discharge Deflector
3. Grass Bag
4. Grass Bag Frame
5. Literature Pack
6. Battery Charger (electric start
models)
OM0350
2
3
1
4
5
OM1220
OM0330
OM0320
OM0340
OM0560
6
