BATTERY (electric start models)
To Remove Battery from Unit
1. Remove drive cover.
2. Disconnect battery from wiring
(Figure 12).
3. Remove wing nuts from battery U-bolt.
4. Remove battery plate and battery.
To Charge Battery
IMPORTANT: DO NOT attempt to “jump start”
mower.
1. Connect battery charger plug to mating
plug on battery (not engine).
2. Plug charger into 110 volt Alternating
Current (A.C.) outlet.
IMPORTANT: Battery charger supplied with
unit is for 110 volt Alternating Current (A.C.)
outlets only.
3. Charge for 24 to 48 hours (battery may
be charged for up to 72 hours without
damaging it).
At least 8 hours of engine run time are
required to charge a fully discharged battery.
ENGINE/BLADE CONTROL
ADJUSTMENT
To adjust engine/blade control:
1. Loosen cable nuts away from bracket.
2. Squeeze z-bend bracket at engine end of
cable toward front of unit and hold in
place.
3. Pull cable down from bracket until there
is no slack in cable.

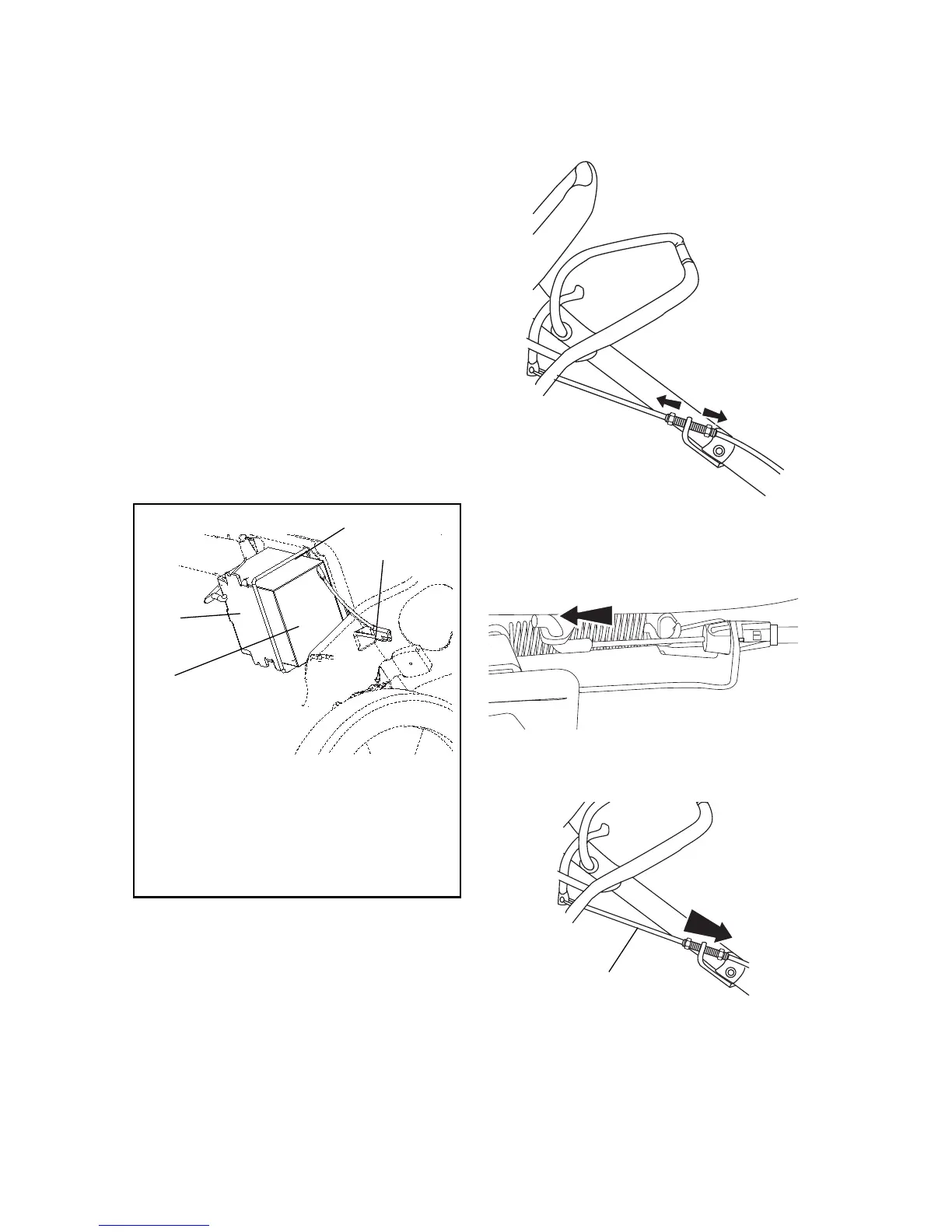

1. Battery
2. U-bolt
3. Battery Plate
4. Battery wiring
