Ariens 920013 - Assembly Instructions; Package Contents

GB - 8
PACKAGE CONTENTS
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.
PACKAGE CONTENTS
Check the contents of your package for the
parts listed below (Figure 3):
Item Part No. Qty Description
The following parts are included as part of
the Sno-thro Unit:
1. N/A 1 Sno-thro Unit
2. 07028500 2 3/8 in-16 x 3/4 in.
Serrated Head
Flange Bolt
The following parts are included as a part of
the Lower Handlebar:
3. 00597451 1 Lower Handlebar
4. 06221600 4 5/16 in-18 x 2-1/4 in.
Round Head Square
Neck Bolt
5. 07500005 4 Handlebar Spacer
6. 06435700 4 Flat Steel Washer
7. 06407400 4 Locking Washer
8. 06530200 4 5/16 in-18 Locking
Nylon Nut
9. N/A 1 Upper Handlebar
Assembly
10. N/A 1 Discharge Chute
Assembly
11. 62011500 1 Chute Crank
Assembly
12. 6201300 1 Literature Pack
If any of the above listed contents are
missing contact your local Ariens dealer.

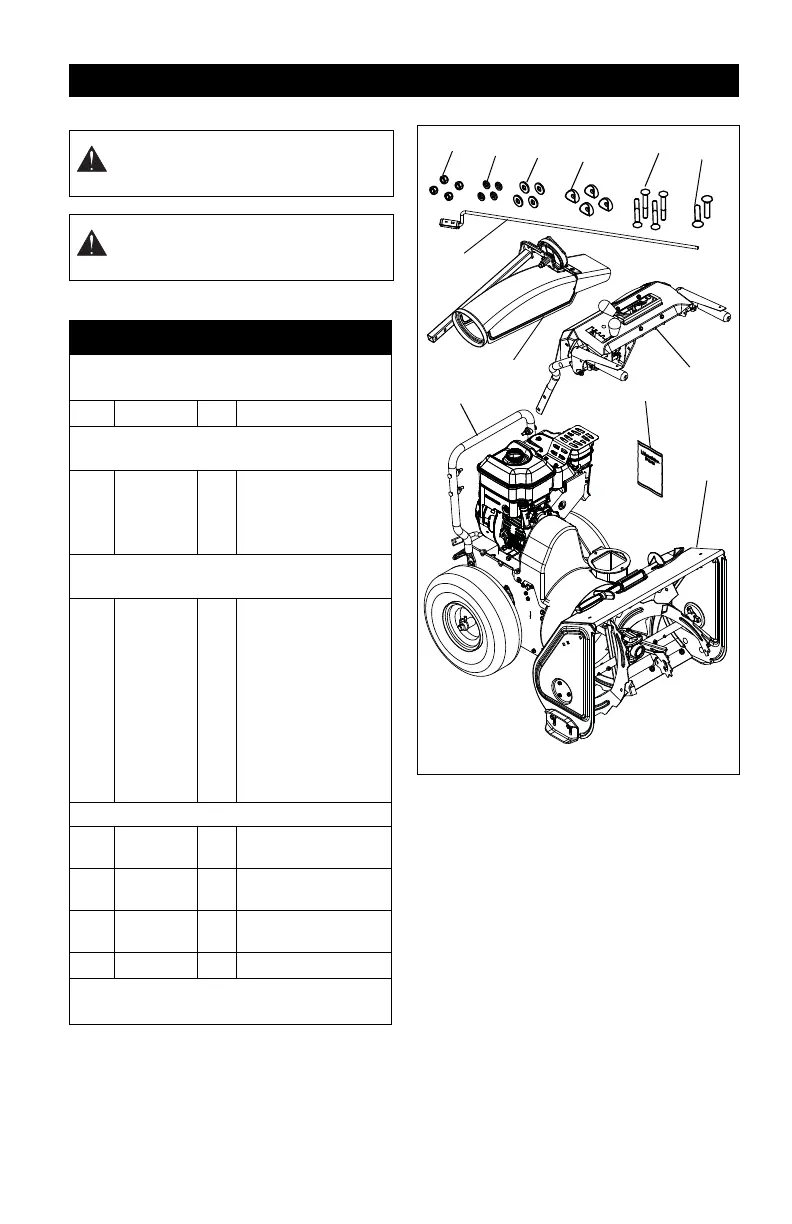

Figure 3
1
3
2
9
10
12
11
4
6
7
8
5
