Ariens Sno-tek 24 User Manual

GB - 11
1. Attachment Clutch Lever
2. Speed Selector
3. Traction Drive Clutch Lever
4. Chute Crank
5. Muffler Guard
6. Discharge Chute Deflector
7. Discharge Chute
8. Impeller
9. Auger
10. Scraper Blade
11. Auger Gearcase
12. Clean-out Tool
13. Oil Fill and Dipstick
14. Gas Tank and Cap
15. Recoil Starter Handle
16. Primer Bulb
17. Ignition Switch (Push /Pull)
18. Engine Shutoff Switch
19. Choke
20. Axle Lock Pin
21. Skid Shoe(s)
22. Belt Cover
23. Fuel Shut-off Valve
24. Handlebar

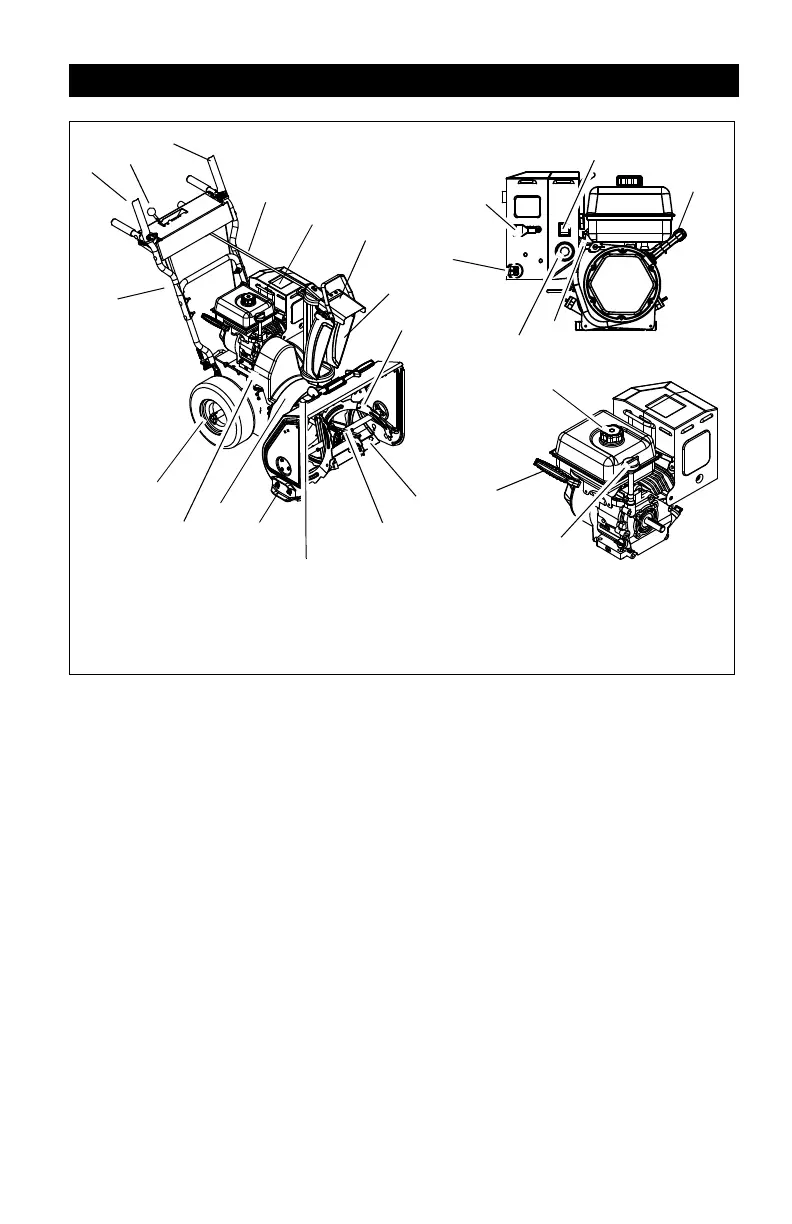

CONTROLS AND FEATURES
Figure 7
1
2
3
4
5
6
7
8
9
10
11
12
21
22
20
13
14
15
24
16
19
17
23
18
15

Ariens Sno-tek 24 Specifications

General

Clearing Width	24 inches
Engine Displacement	208 cc
Stage Type	Two-stage
Fuel Type	Gasoline
Intake Height	20 inches
Number of Speeds	6 forward, 2 reverse
Chute Material	Polymer
Impeller Diameter	12 inches
Transmission	Disc-O-Matic
Fuel Tank Capacity	2.9 quarts
Chute Control	Manual
Skid Shoes	Adjustable
Start Type	Recoil
Tire Size	13 x 4 inches
Throw Distance	40 feet
