GB - 19
2. Adjust skid shoes by inserting a spacer
of desired thickness under center of
scraper blade, loosen skid shoe
hardware, slide skid shoes to flat
surface. Allow 1/8 in. (3 mm) between
scraper blade and hard smooth
surfaces. Allow 1-1/4 in. (30 mm)
between scraper blade and uneven or
gravel surfaces. Retighten hardware.
NOTE: Keep housing level by adjusting skid
shoes equally.
SHEAR BOLTS
IMPORTANT: Use only Ariens shear bolts for
replacement. Use of any other type of shear
bolt may result in severe damage to unit and
may void the warranty.
Occasionally a foreign object may enter the
auger/impeller housing and jam the auger,
breaking shear bolts which secure the auger
to the shaft (Figure 15). This allows auger to
turn freely on the shaft which may help
prevent damage to gear case and its
components.
For Replacement:
1. Align shear bolt holes in auger with
shear bolt holes in the shaft.
2. Drive shear bolt through hole (if shear
bolt was broken this will drive remaining
part from shaft).
3. Secure shear bolt with nut.
DISCHARGE CHUTE DEFLECTOR
Deflector must stay in selected position while
throwing snow.
To adjust, loosen then retighten the wing
knob to desired tension (Figure 16).

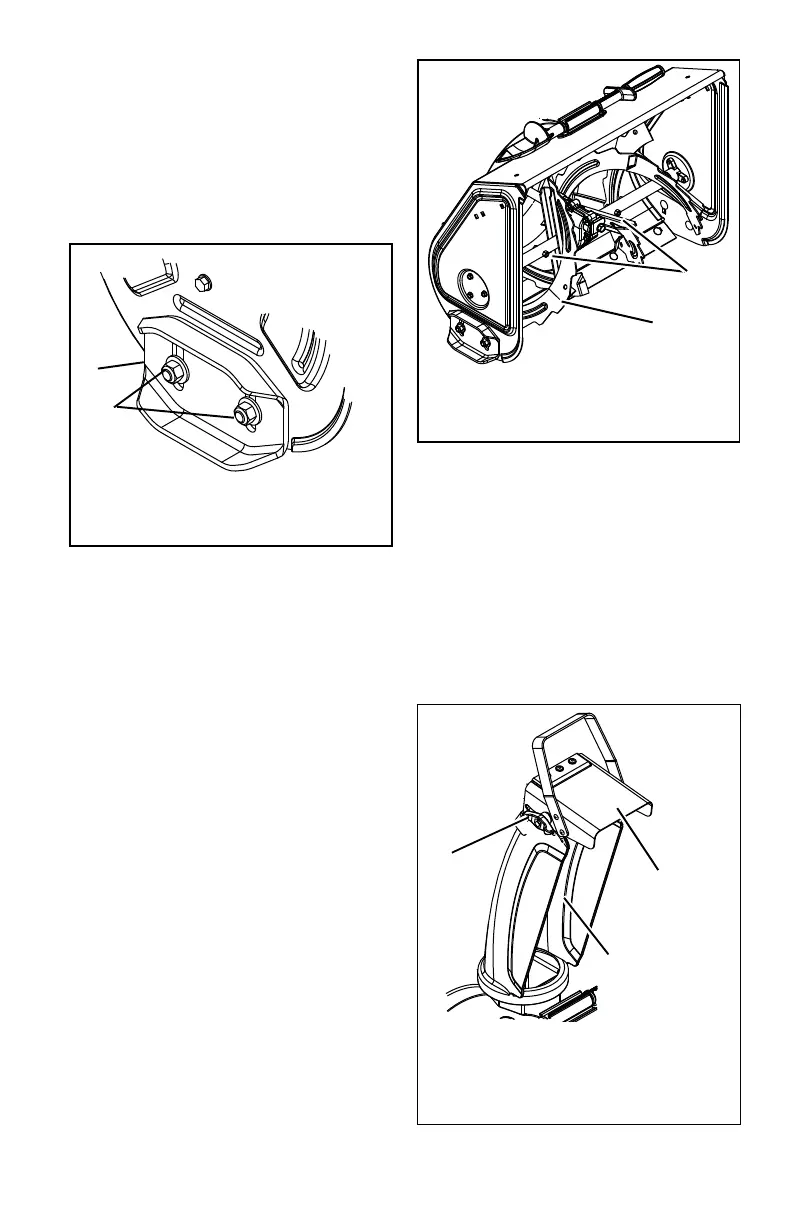

Figure 14
2
1
OS0482
1. Skid Shoe
2. Skid Shoe Hardware
Figure 15
1. Auger
2. Shear Bolts
1
OS8230
2
Figure 16
OS8245
1. Wing Knob
2. Discharge Chute Deflector
3. Discharge Chute
1
2
3
