PAGE 3 • 35700-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM
(2) 6mm Flat Washers (inside)
(2) 6mm Flat Washers (outside)

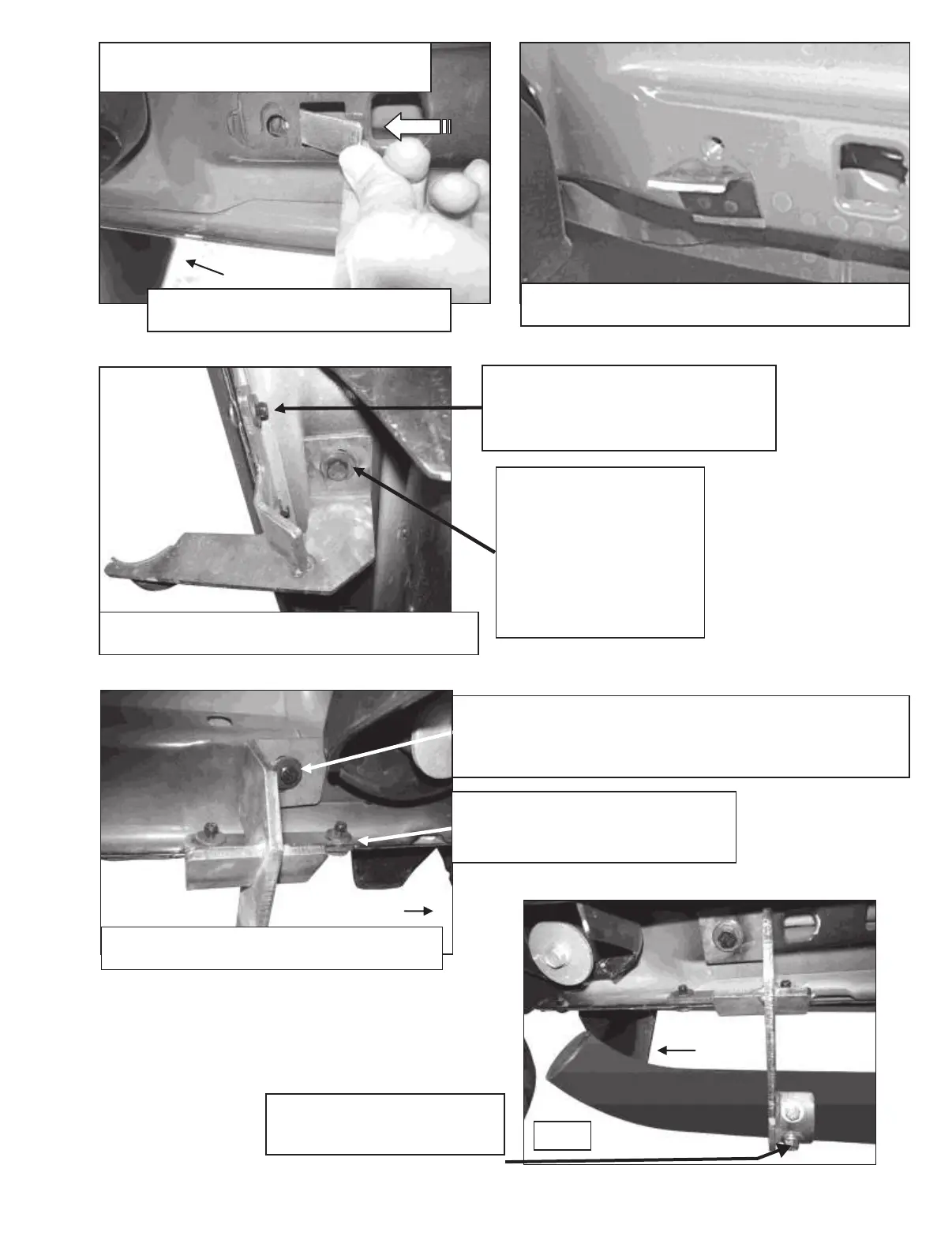

(Fig 1) Opening in floor frame channel
(passenger side-front pictured)
(2) 6mm x 25mm Button Head Bolts
(2) 6mm Nylon Lock Nuts
Insert 10mm Nut Plate into opening and
line up nut with mounting hole on Bracket
Front
(Fig 2) 8mm threaded hole in floor frame channel
(passenger side-front pictured for example)
10mm Nut Plate
10mm x 35mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
OR
8mm x 35mm Hex Bolt
8mm Lock Washer
8mm x 25mm OD x 3mm
Flat Washer
(Fig 3A) Passenger side Front Mounting Bracket
installation pictured ("mid length" bracket)
(Fig 4) Passenger side Rear Mounting
Bracket installation pictured (short bracket)
10mm Nut Plate
10mm x 35mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
OR
8mm x 35mm Hex Bolt
8mm Lock Washer
8mm x 25mm OD x 3mm
Flat Washer
Rear
(2) 6mm x 25mm Button Head Bolts
(4) 6mm Flat Washers
(2) 6mm Nylon Lock Nuts
(2) 10mm x 25mm Hex Bolts
(2) 10mm Lock Washers
(2) 10mm x 25mm Flat Washers
Fig 5
Front
