product description

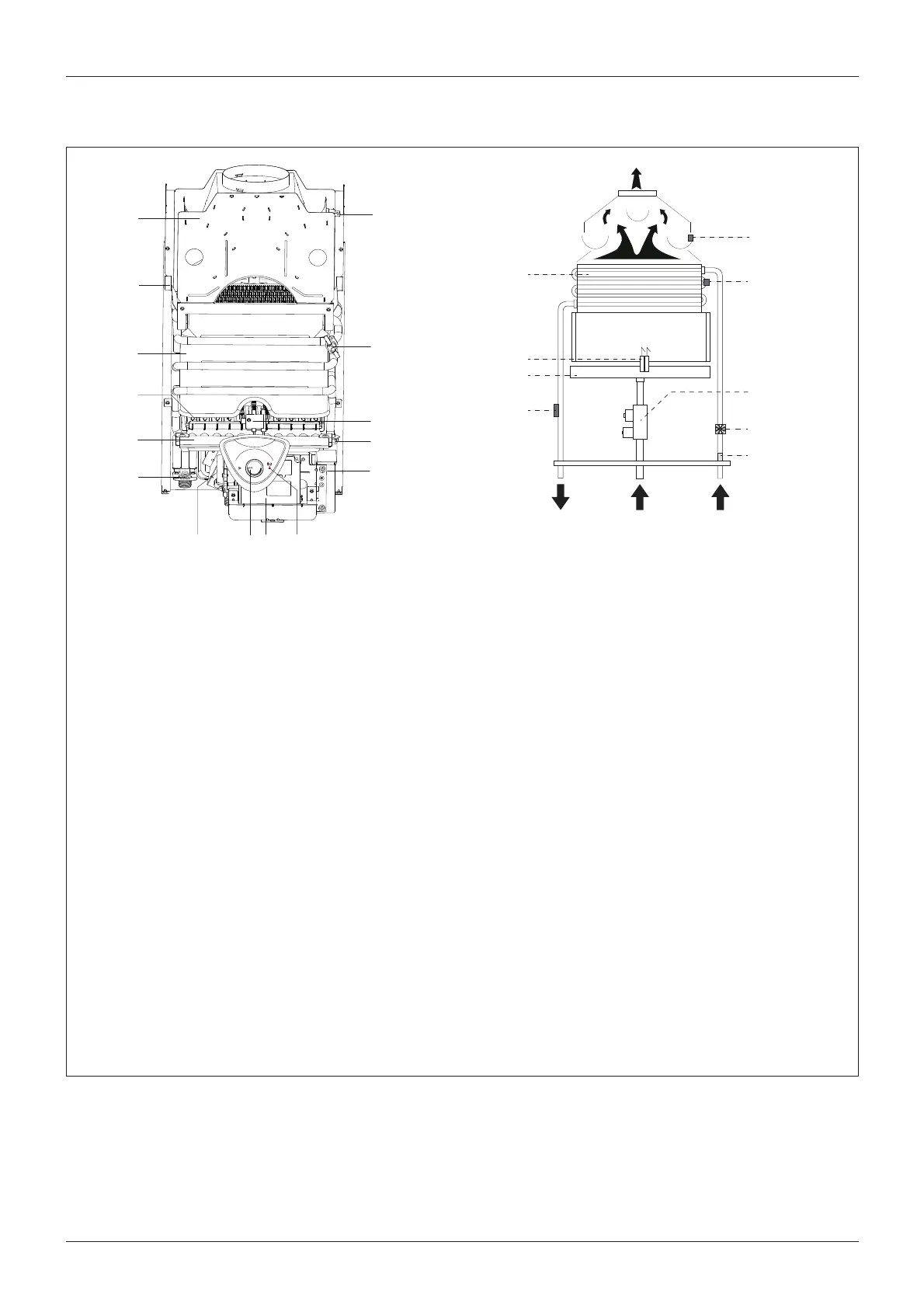

Overall view
Water circuit diagram
B. Hot water outler 1/2”
C. Ingresso Gas 1/2”
D. Cold water inlet 1/2”
1. Combustion Hood
2. Frame
3. Heat exchanger
4. Burner
5. Gas collector
6. Hot water temperature sensor
7. Gas valve
8. Switch ON/OFF and D.H.W temmperature knob
9. P.C.B. box
10. L.E.D.:
red - errors signal
orange - adjustment in progress
11. Ignition P.C.B.
12. Water fl ow switch
13. Ignition and detection electrode
14. Overheat thermostat
15. Fume sensor
16. Cold water inlet fi lter
1
2
3
4
5
6
7 8 9 10
11
12
13
14
15
B
C
D
3
13
4
6
16
7
14
15
12

Ariston FAST EVO Specifications

General

Energy Efficiency	A
Voltage	220-240 V
Color	White
Dimensions	Varies by model
Weight	Varies by model
Installation	Wall mounted
Power	Varies by model
Frequency	50Hz
