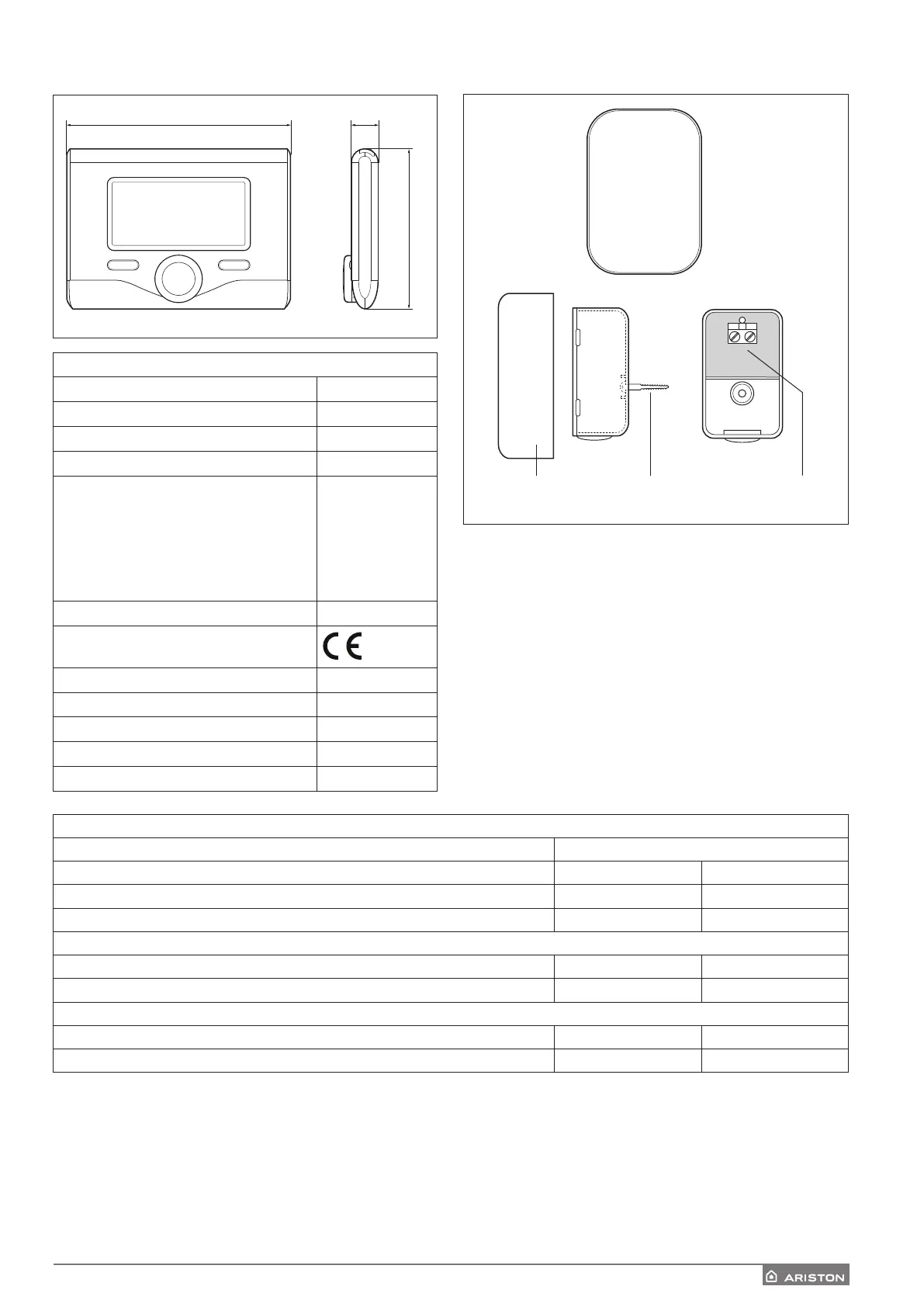

TECHNICAL DATA
Power supply BUS
Electrical absorption max. < 0,5W
Operating temperature -10 ÷ 60°C
Storage temperature -20 ÷ 70°C
Bus wire length and cross-sectional
area
NOTE:
TO AVOID INTERFERENCE PROB
LEMS, USE A SHIELDED CABLE OR
TWISTED PAIR CABLE.
max. 50 m
min. 0.5 mm²
Buer memory 2 h
Conformity
LVD 2014/35/EU - EMC 2014/30/EU
Electromagnetic interference EN 60730-1
Electromagnetic emissions EN 60730-1
Conformity to standards EN 60730-1
Temperature sensor NTC 5 k 1%
Resolution degree: 0,1°C
134 mm 16 mm
96 mm
SYSTEM INTERFACE OUTDOOR SENSOR
Position the outdoor sensor on the north-facing wall of the
building, at least 2.5 m from the ground and away from
direct sunlight.
Remove the cover and install the sensor using the rawl
plug and screw provided. Perform connection using a
2x0.5 mm2 wire.
Maximum connection length 50 m. Connect the wire to the
terminal by introducing it from the lower part after creating
a suitable passage.
Place the sensor cover back in the correct position..
A B
C
PRODUCT FICHE (valid from September 26th, 2015)
SUPPLIER’S NAME ARISTON
SUPPLIER’S MODEL IDENTIFIER SENSYS OUTDOOR SENSOR
Class of the temperature control V II
Contribution to seasonal space heating energy eciency in % +3% +2%
Adding an ARISTON OUTDOOR SENSOR:
Class of the temperature control VI --
Contribution to seasonal space heating energy eciency in % +4% --
In a 3-zones system with 2 ARISTON ROOM SENSORS
Class of the temperature control VIII --
Contribution to seasonal space heating energy eciency in % +5% --
