61 / GB
Attention

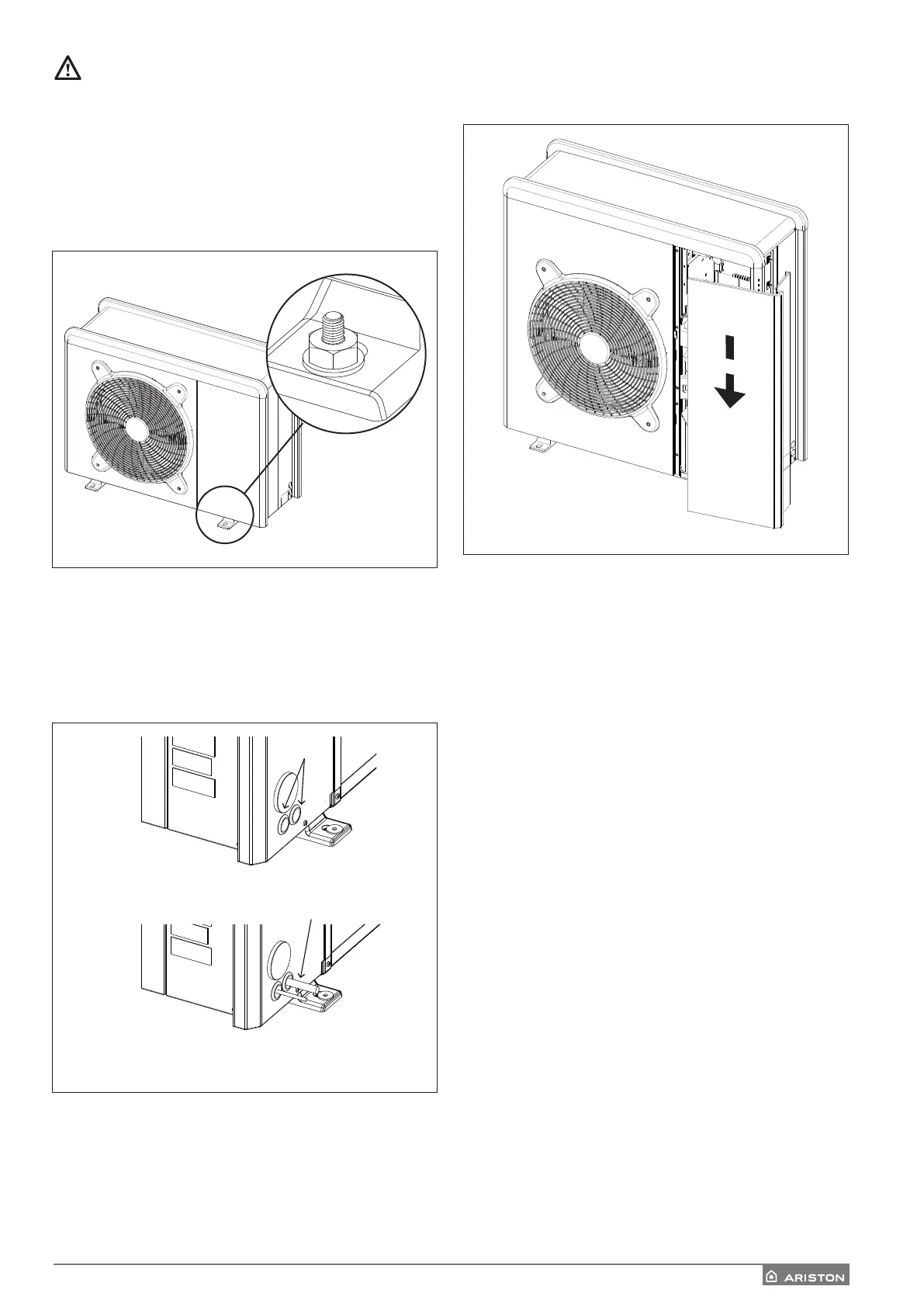

Before installation, check strength and horizontality of
the base. Based on the pictures, connect the base of the
external unit firmly to the ground, using suitable anchor
bolts (M10 x 2 pairs).
If the external unit should be exposed to significant air
flow, protect the fan using a protective screen and verify
the proper positioning and functioning.
1. Opening procedure for lateral passages
To allow the passage of cables, remove, with the help of a
screwdriver, the precut parts (A) of the chassis of the exter-
nal unit. To eectively remove the material, keep the front
panel of the unit installed.
Prior to the passage of the cables, place the black grom-
mets (B) provided within the document envelope.
A
B
2. Removal of frontal panel
Remove the screws that block the frontal panel and pull it
forward and down.
