Ariston NIMBUS COMPACT M NET - System Interface Controls and Indicators; Display Symbols, Buttons, and LEDs

76 / GB

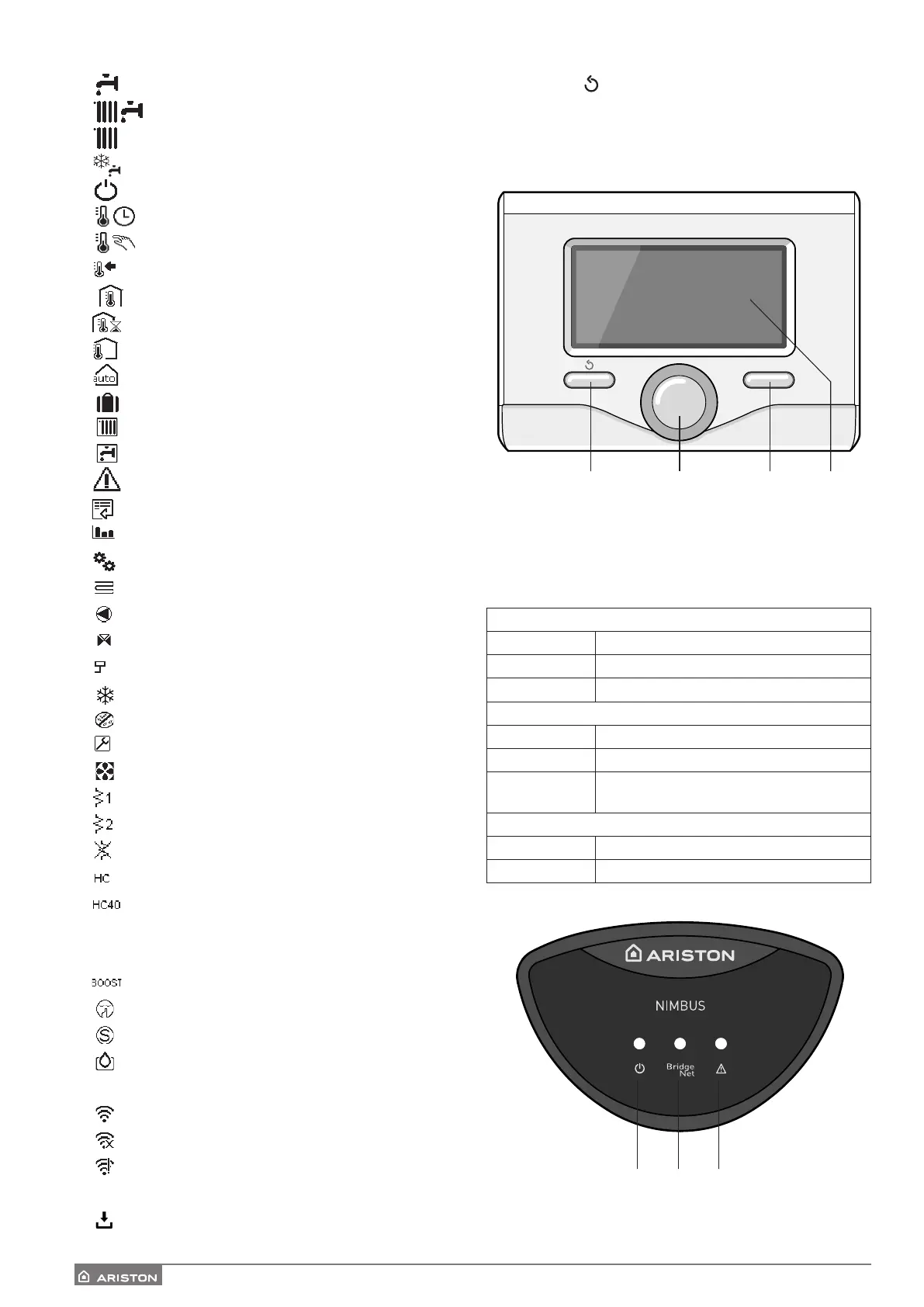

LED indications
(1) BLUE LED
Light o power supply OFF
Light fixed power supply ON
Light flashing powered ON, board in manual mode
(2) BLUE LED
Light o Bus communication absent or not-OK.
Light fixed Bus communication present.
Light flashing Scanning or initialisation of Bus communi-
cation
(3) RED LED
Light o no operation error
Light fixed presence of one or more operation errors
Display symbols :
- ( ) Summer / DHW settings
- ( ) Winter
- ( ) Only Winter / CH settings
- ( ) Cooling
- ( ) OFF, system o
- ( ) Time program
- ( ) Manual operation
- ( ) Desired room temperature
- ( Room temperature detected
- ( ) Desired room temperature override
- ( ) Outdoor temperature
- ( ) AUTO function enabled
- ( ) HOLIDAY function enabled
- ( ) Central heating active
- ( ) Domestic hot water active
- ( ) Error indication
- ( ) Menu
- ( ) System performance
- ( ) Screen setting
- ( ) Floor Heating
- ( ) Circulation pump
- ( ) Valvola deviatrice
- ( ST1) Under-floor heating system thermostat
- ( ) Anti-frost function
- ( ) Thermal Cleanse Function
- ( ) Configurable device
- ( ) Heat pump
- ( ) Heating element 1
- ( ) Heating element 2
- ( ) Heating element excluded
- ( ) Manual mode HC
- ( ) DHW comfort in period at a reduced rate
setpoint up to 40 ° C during the period
at the full rate
- ( ) BOOST mode
- ( ) Silent mode
- ( ) Special function
- ( ) Dehumidification
(AP) Access Point configuration
- ( ) Gateway connected to internet
- ( ) Gateway not connected to router
- ( ) Gateway connected to router but
not to the internet
- ( ) Software update in progress
OK
1 2 3 4
Buttons and Display:
1. back button (previous screen)
2. knob
3. OK button
(to confirm operation or access main menu)
4. DISPLAY
1 2 3
