ARITERM SWEDEN AB Installation, Operation & Maintenance - 2009.02.18- 4/32
Part Number
Biomatic+ 30 (
•
part.no. 4009)
Standard delivery
Shunt valve ESBE TM 20
•
Sweeping gear
•
Combination ue for horizontal and vertical installation (
•
part no. 5208)
Accessories
Shunt outlet•
A-dimensions including comb.ue pipe is app. 2000 mm

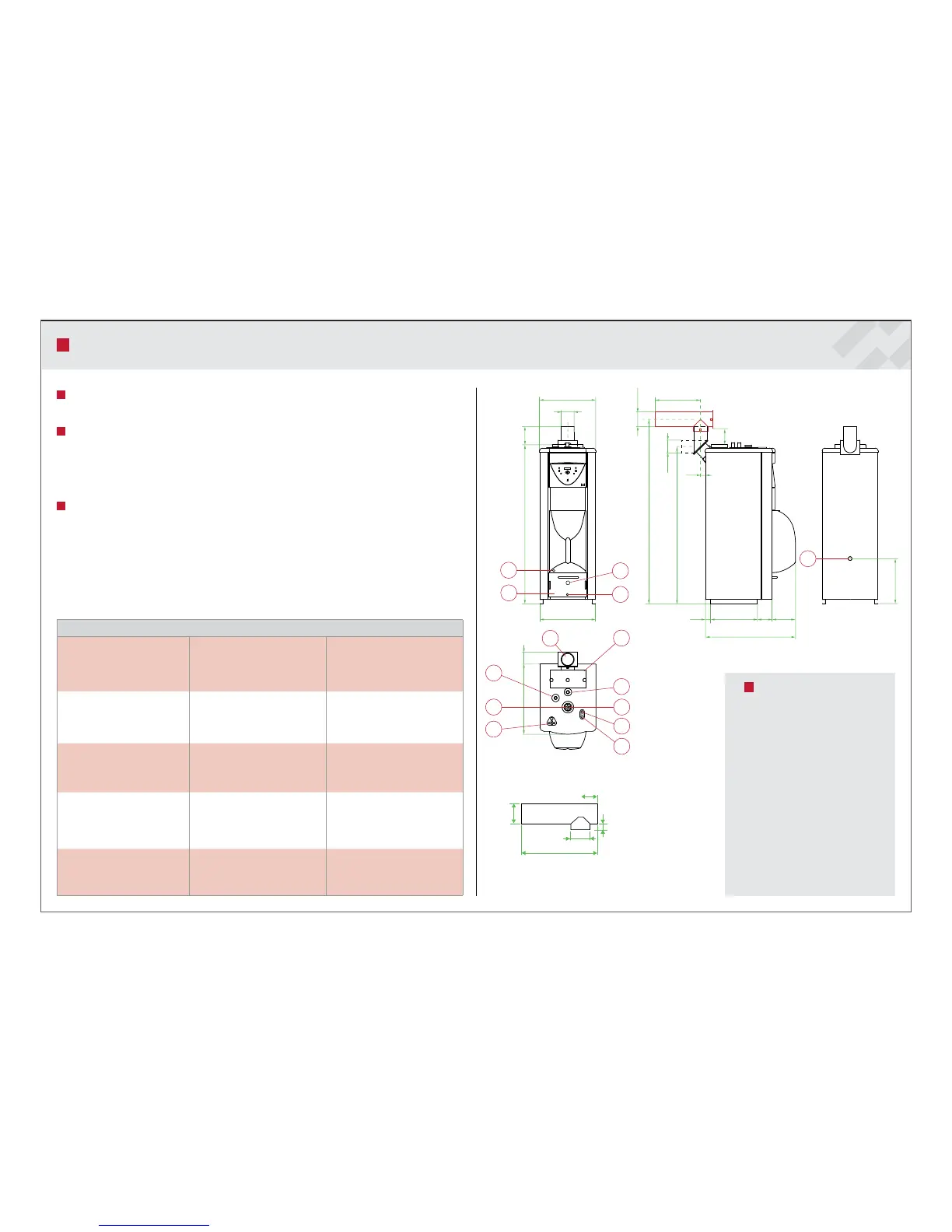

DIMENSIONS / ITEMS INCLUDED IN THE DELIVERY / TECHNICAL DATA - BIOMATIC+ 30
Biomatic+ 30
1. Drain DN 15, inv.
2. Flue pipe Ø 139 mm
3. Additional shunt (optional)
4. Expansion DN 25, male
5. Shunt outlet
a) Feed line Cu 22 / DN 20
b) Return line Cu 22 / DN 20
6. Cold water Cu 22
7. Hot water Cu 22
8. Cabel bushing
9. Sweeping hatch
10. Ash box
11. Return line DN 25 female
12. Air valve
13. Ash compression
TECHNICAL DATA
Performance
Output using pellets
Power of ignition resistor
Normal power consumption
12 - 30 kW
450 W
70 W
Dimensions
Dimensions (width x depth x height)
Weight
Water contents
Weight (burner)
606 x 970 x 1720 mm
330 kg
142 l
38 kg
Design values
Design pressure
Design temperature
Recommended draught
0,5 - 1,5 bar
max 120
o
C
5-20 Pa
Connections
Expansion
Drain
Flue pipe connection
Recommended chimney diameter and
length
DN 25 male
DN 15 female
Ø 139 mm
Ø 130 mm, length min 6 m
Electrical data
Power supply
Supply cable
Fuse size
Power in operation
400 V 50 Hz
MMJ 4x2,5s
3x16 A
9000 W
