Ariterm Biomatic+ - Pipe Installations; Piping Diagram and Components

ARITERM SWEDEN AB • ARITERM OY • Asennus ja käyttöohje • Installation och driftanvisning • Installation and operating instruction • 19.11.2009 • 7/32

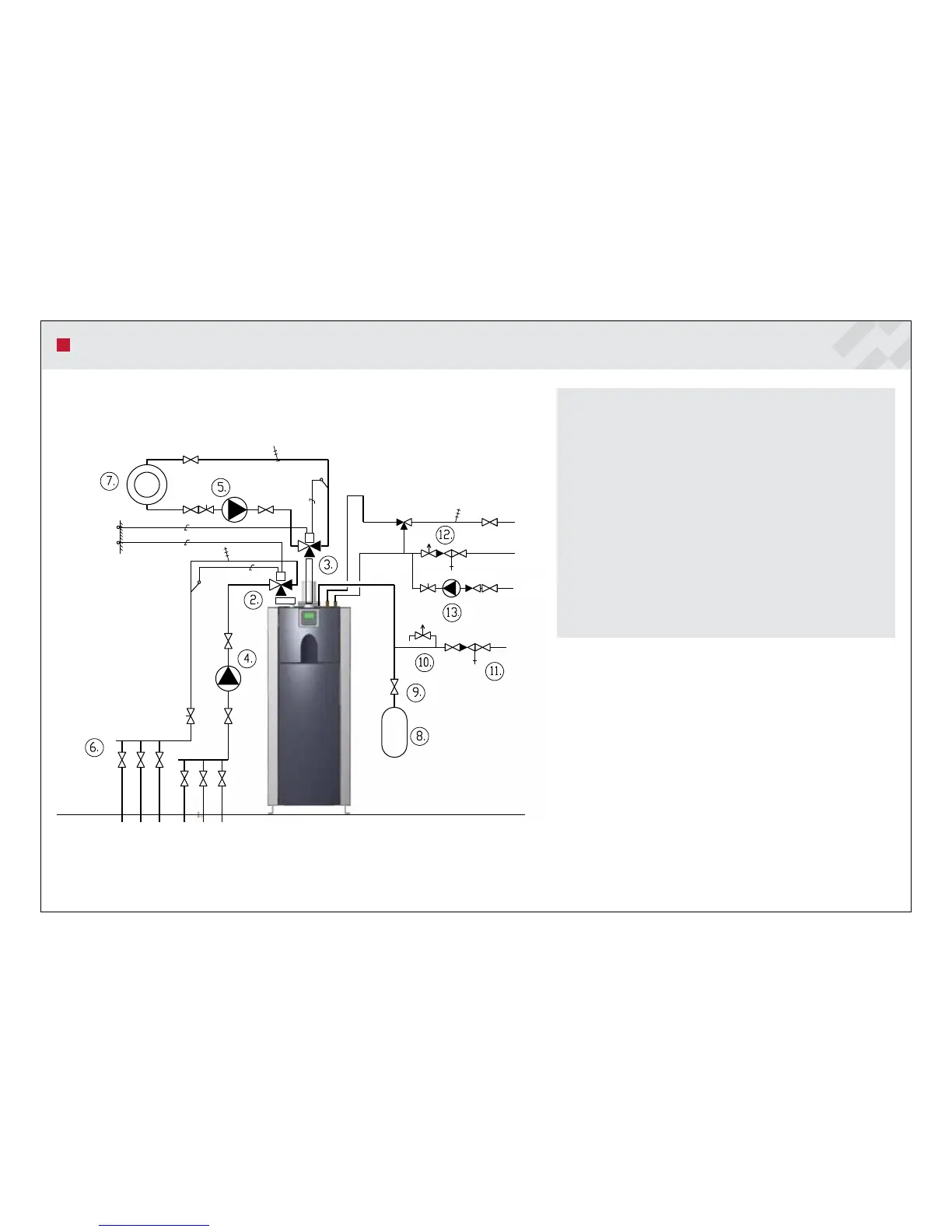

1. ARITERM BIOMATIC+
2. 4-WAY VALVE, FLOOR HEATING (RADIATOR HEATING)
3. CONNECTION SET OF THE ADDITIONAL HEATING CIRCUIT
(RADIATOR HEATING)
4. HEAT PIPE PUMP, FLOOR HEATING
5. HEAT PIPE PUMP, RADIATOR HEATING
6. FLOOR HEATING NETWORK MANIFOLDS
7. RADIATOR HEATING NETWORK
8. EXPANSION VESSEL
9. SERVICE SHUT-OFF VALVE
10. SAFETY VALVE
11. FILLING VALVE
12. FEED MIXING VALVE
13. DOMESTIC WATER CIRCULATION PUMP
PIPE INSTALLATIONS
VW
CW
DW
