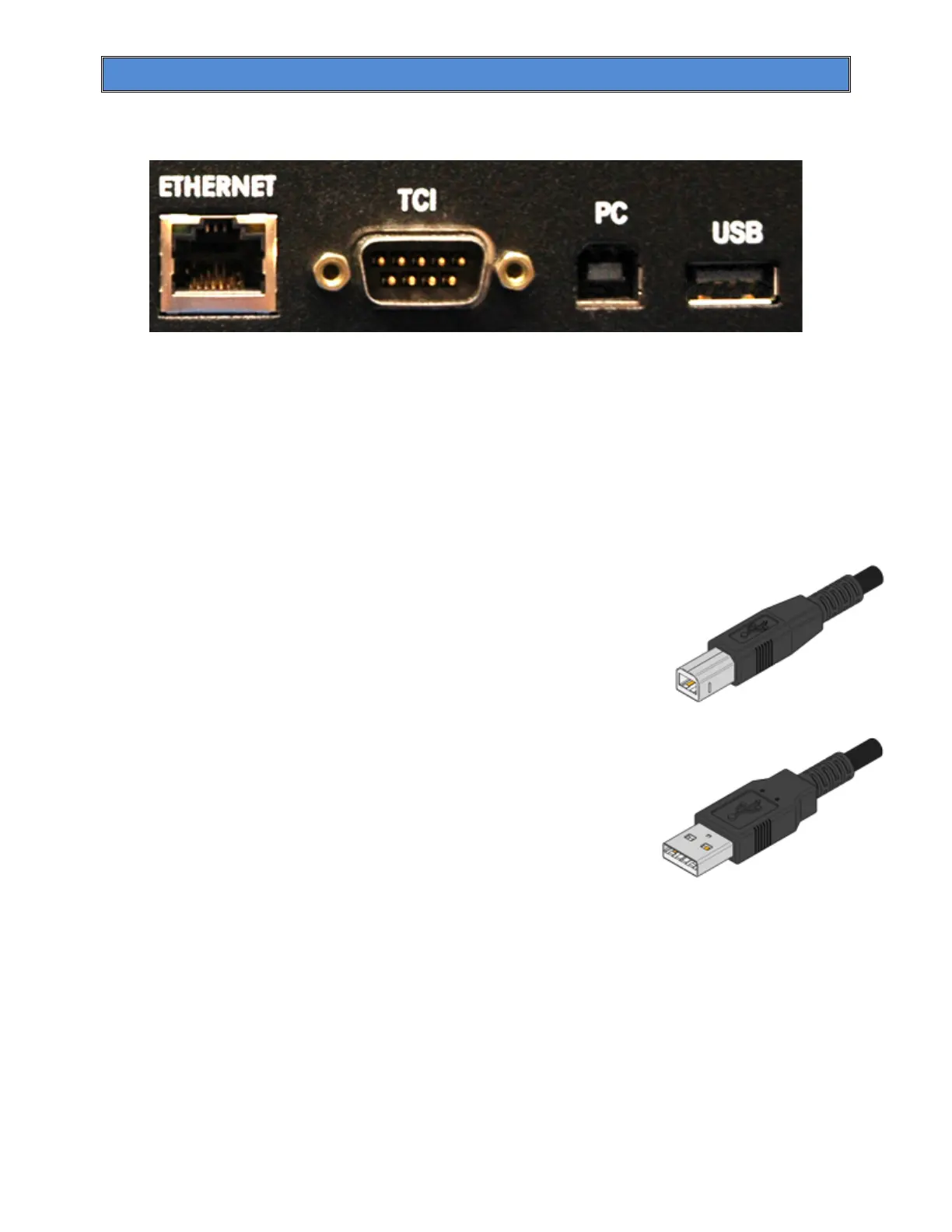

4.6. Back Panel Connections
In addition to the AC power connection, these connections are also available from the
back panel of the instrument:
• RJ-45 Ethernet Connection (marked ETHERNET)
o The Ethernet port is used primarily to connect the MAX
®
4000 to a Local Area
Network (LAN) for use with the optional Web Server. See section 7 WEB
SERVER on page 24 for more information.
• Temperature Calibration Interface and RS-232 serial port (marked TCI)
o The TCI port is used primarily to connect the Temperature Calibration Interface
when performing Heater Temperature Calibration on the MAX
®
4000. This port is
also used to connect to a PC using a serial cable. See the manual for more
information on these functions.
• USB Type B / Slave Connection (marked PC)
o The USB Type B connection is used to connect the MAX
®
4000 directly to a PC using a USB A to B cable (AZI
#200-0165). See the manual for more information.
• USB Type A / Host Connection (marked USB)
o The USB Type A connection can be used to connect
various accessories, including a USB printer, a USB
drive (thumb drive), a USB keyboard, a bar code
reader or a Nitrogen Control module. An icon will
appear in the bottom left corner of the main screen
indicating the type of USB device connected.
o To connect more than one accessory at one time, a
USB hub is required. Some accessories, such as the
Nitrogen Control module, require a powered USB hub
that connects to AC power in order to function. For
best results, if a USB hub is used with the MAX
®
4000,
a powered hub (AZI P/N: 990-0232) is recommended.
o For additional information on these accessories, see the manual.
