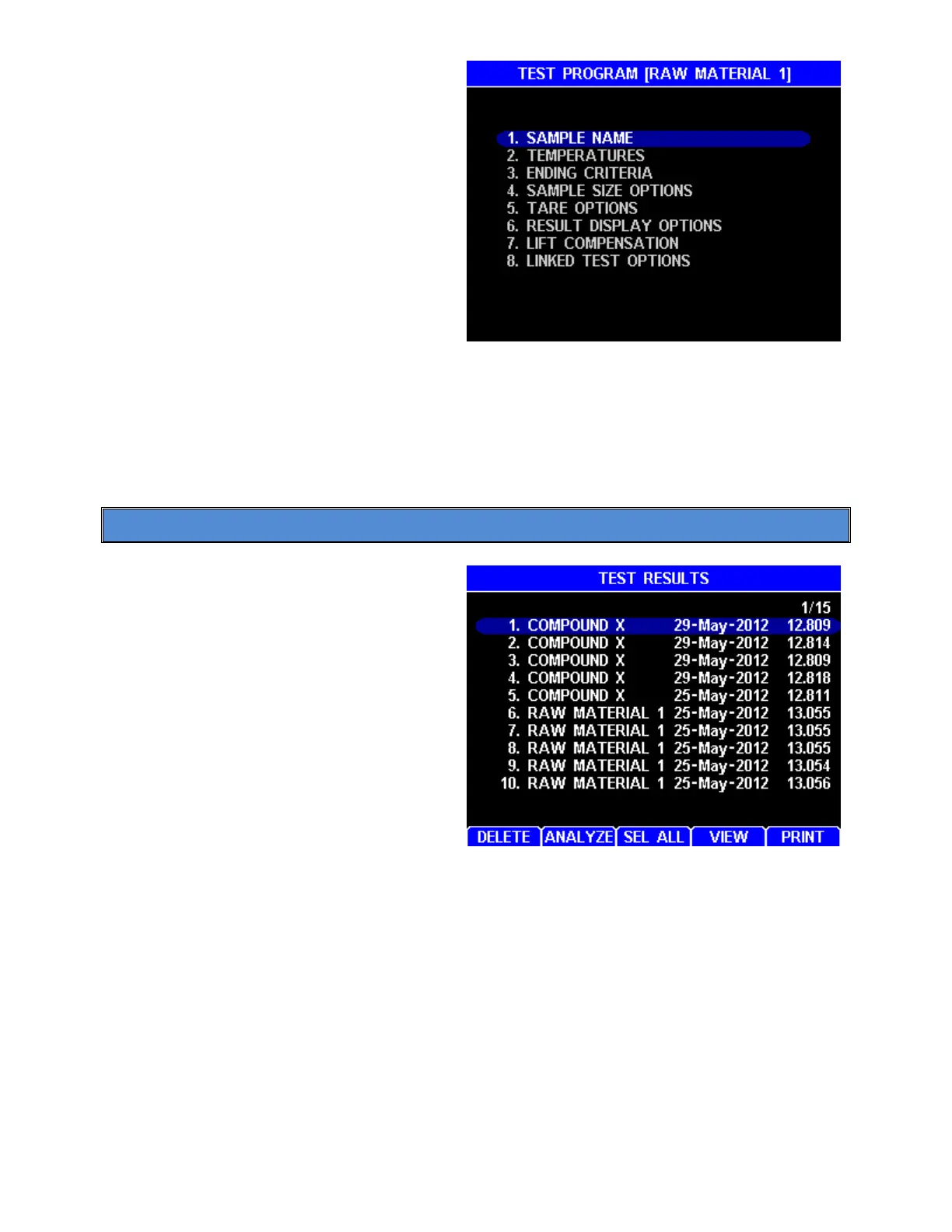

There are 8 categories of test parameters
for each Test Program, as shown, each
explained in more detail in the manual.
Refer to section 4.4 User Interface
Operation on page 8 for instructions on
how to edit items.
When the MAX
®
4000 is powered on, it will immediately begin heating to the IDLE
TEMPERATURE of the first Test Program in the list. When shipping from the factory, the
default first Test Program in the list is the (Factory) IDLE Test Program, which has an
IDLE TEMPERATURE of room temperature (25 °C) to avoid undesired heating. To
change the default Test Program upon power up, insert the desired Test Program at
position 1 in the list of Test Programs.
6.2. Test Results
To get here, navigate:
[MENU]TEST RESULTS
The TEST RESULTS item allows access
to past Test Results. The MAX
®
4000
stores 2 Test Results and no Test
Graphs, and the MAX
®
4000XL stores up
to 1,000 results and 100 graphs before
the oldest is overwritten.
The keypad functions are:
• Up and Down Arrow Keys move the
cursor one line at a time.
• Left and Right Arrow Keys move the cursor one page at a time.
• [ENT] – Select the result currently highlighted by the cursor. Multiple results can be
selected by scrolling to the next desired result and pressing [ENT] again. Press [ENT]
again to deselect a result. Selected results are indicated by the yellow triangle to the
left of the selected results. The selected results will then be used when the [DELETE],
[ANALYZE], or [PRINT] soft keys are selected.
• [DELETE] – If no results are selected, then the result that is highlighted by the cursor
is deleted. Otherwise, [DELETE] erases the selected results. Normally results are
deleted to make data management easier. If Test Results need to be saved, they
must be printed or stored in a computer file prior to deletion. On 21 CFR, Part 11
compliant instruments, the [DELETE] is not available.
