Product overview

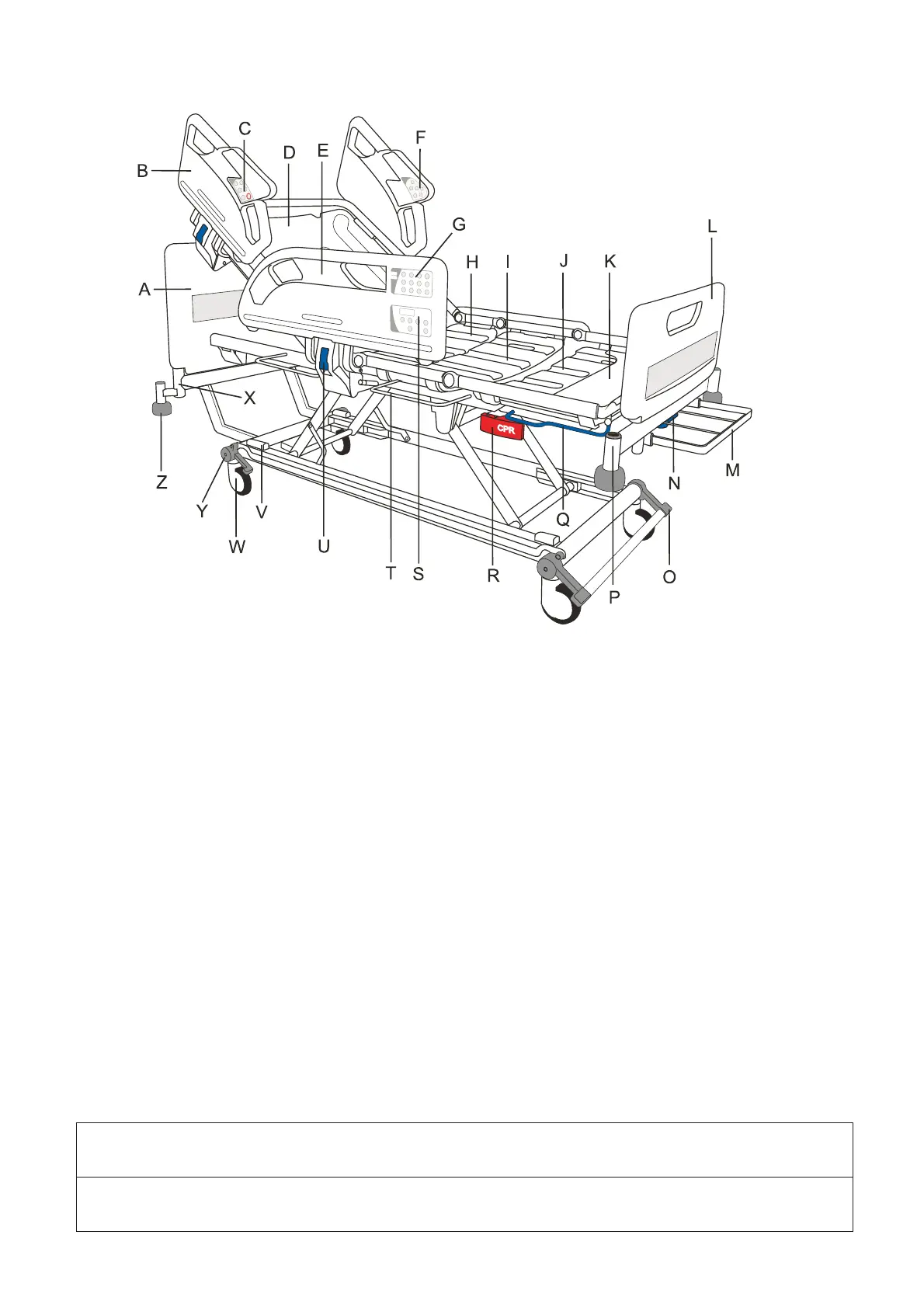

Fig. 1 - Product overview
A. Head board
B. Head end split side rail
C. Caregiver controls
D. Backrest section
E. Foot end split side rail
F. Patient controls
G. Attendant Control Panel (ACP)
H. Seat section
I. Thigh section
J. Calf section
K. Calf extension sheet
L. Foot board
M. Bedstripper (linen shelf) (Optional)
N. Extension locking handle
O. Brake pedal / bar
P. Accessory socket
Q. Extension catch bar
R. CPR release handle
S. Weighing / movement detection system
controls
T. Drainage bag rail
U. Split side rail release lever
V. Anti-entrapment sensor (Optional)
W. Castor
X. Lifting pole socket
Y. Head end brake pedal (Optional)
Z. Roller buffer
NOTE
5th Wheel (Optional) is not shown on the picture, see page 18.
NOTE
Flat deck sheets are supplied as standard when the backrest with X-ray cassette tray is present.
