2.5 Connecting water
• The connections must satisfy the requirements for water
connection in accordance with the table below.
&ROGZDWHU%OXH Warm water Red
Connection 15 mm (1/2") 15 mm (1/2")
Pressure 100-800 kPa 100-800 kPa
Flow rate 20 l/min at 400 kPa
pressure
20 l/min at 400 kPa
pressure
Temperature & &
• Connect the water supplies.
• 7KHSLSHVPXVWEH¿WWHGZLWKDQDSSURYHG´VKXWRIIYDOYH
• Seal all connections with PTFE tape.
2.6 Connecting electric power
Carry out the electrical installation as follows:
• Install the machine in accordance with installation category
CAT II.
• Make a hole for electric cables in the plinth or baseplate of
the machine.
• Fit the supplied cable bushing and pull the cables through.
001518

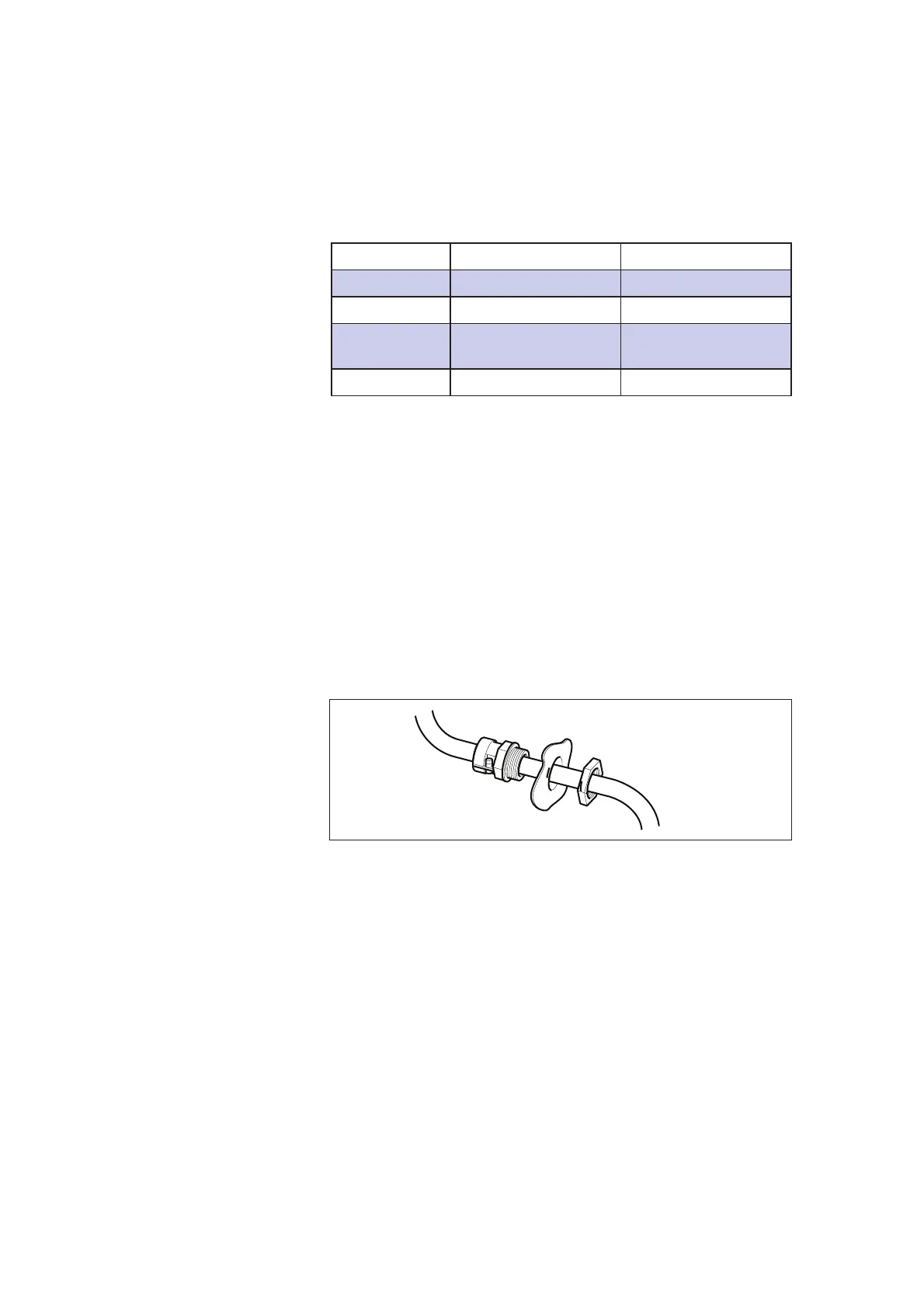

Figure 7. Cable gland
• Connect the machine to a separate isolator switch approved
to local standards, which must be mounted on the wall close
to the machine.
• Connect to the protective grounding and to the supply voltage
stated on the type plate. Check that the connection has
suitable overcurrent protection. The correct fuse rating is
stated on the type plate.
• $OOFDEOHVPXVWEHFODVVL¿HGIRUDWOHDVW&
• Fuses as per. Curve C.
