Arkel KM-10 - Description of LEDs

KM-10 User Manual V1.10
6. Description of Led’s

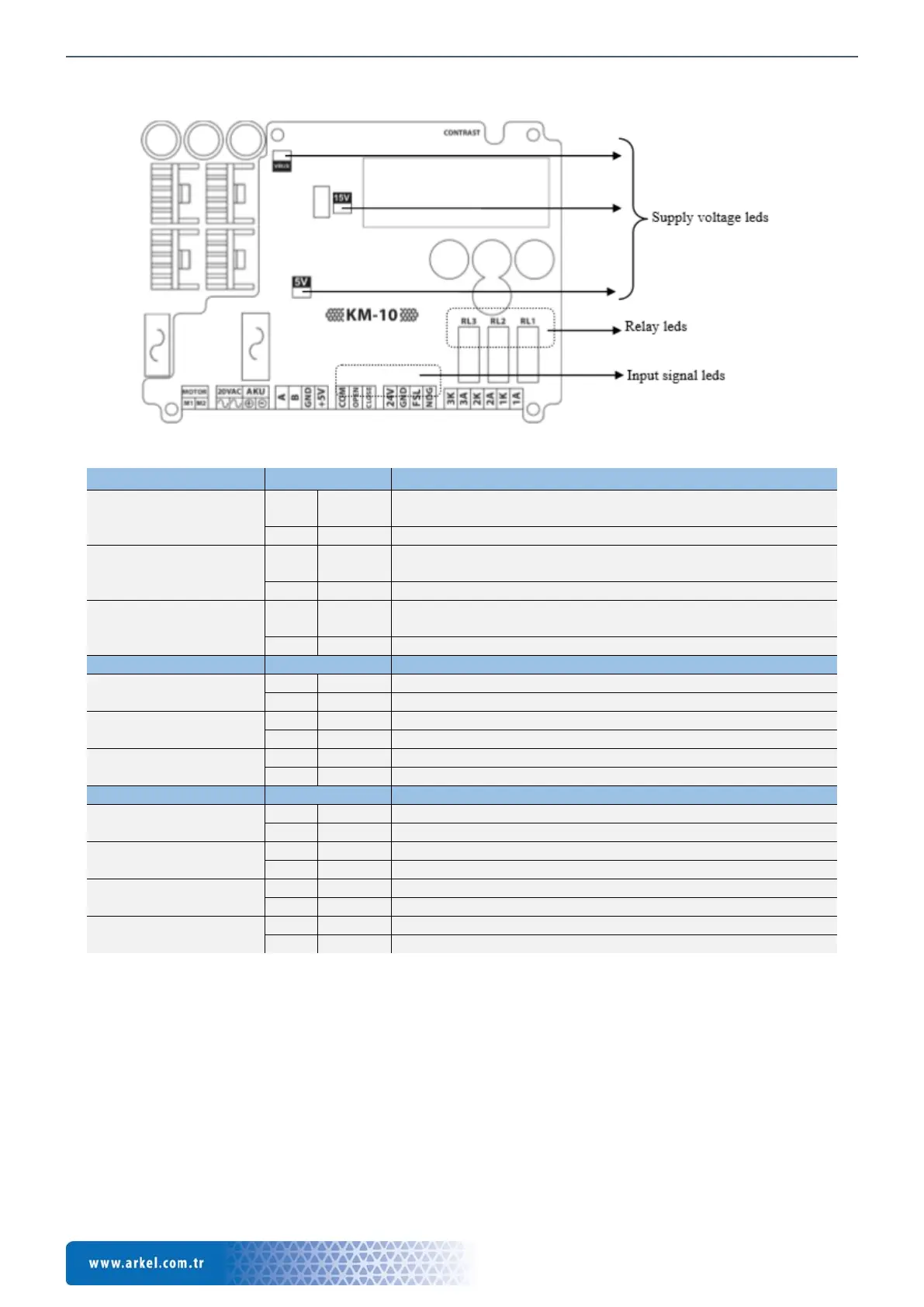

Figure 2 Description of Leds
Supply indicators
Status
Description
5V

ON
+5V supply is active
(Supply for microcontroller and encoder)

OFF
+5V supply is inactive
15V

ON
+15V supply is active
(Supply for motor drive circuit)

OFF
+15V supply is inactive
24V

ON
+24V supply is active
(Supply for motor output, relay’s coil, and control signals)

OFF
+24V supply is inactive
Supply indicators
Status
Description
R1

ON
Doors are fully open

OFF
Doors are not fully open
R2

ON
Doors are fully closed

OFF
Doors are not fully closed
R3

ON
Photocell or obstruction detected

OFF
No reopening output
Input indicators
Status
Description
OPEN

ON
Open signal is active

OFF
Open signal is inactive
CLOSE

ON
Close signal is active

OFF
Close signal is inactive
FSL

ON
Photocell is detected

OFF
Photocell is not detected
NDG

ON
Nudging mode active

OFF
Nudging mode inactive
