Electromagnetic flowmeter M910
Operation manual
49
9 Application information
9.1 Weight and dimensions
Flowmeter weight and dimensions depend mostly on the version (remote or compact) and diameter of the pipe.
9.1.1 Electronic unit – compact version

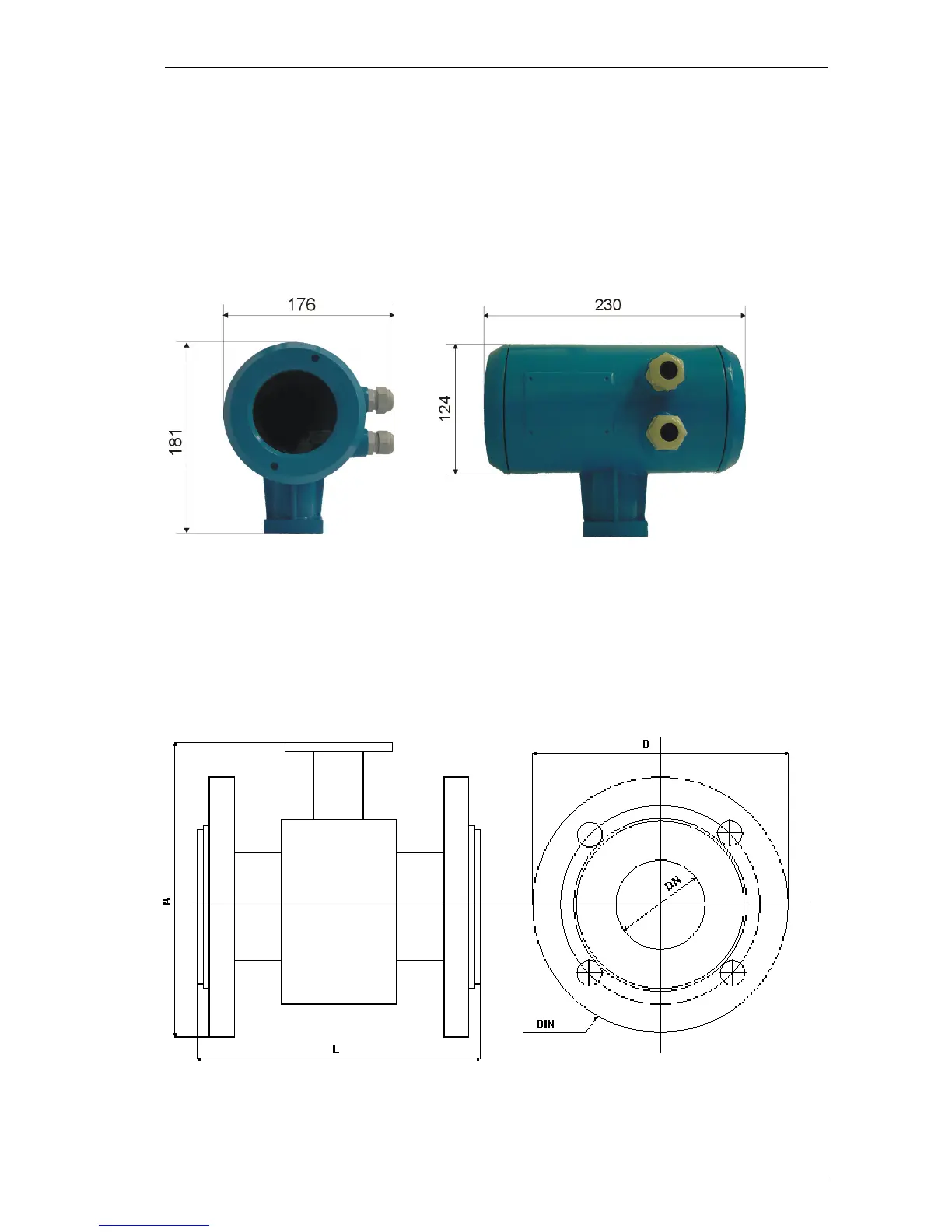

The pictures below show dimensions of the electronic unit for the compact version. Dimensions are in millimetres.
Weight: 3 kg
9.1.2 Sensor
In the table below are the dimensions of the sensor for compact version. In case of remote version add 120
millimetres to dimension “A” for cable gland and cable. Flanges in DIN version meet standard DIN 2508. Flanges
in ANSI version meet requirements of ANSI B 16.5 standard.
