INSTALLATION GUIDE continued…

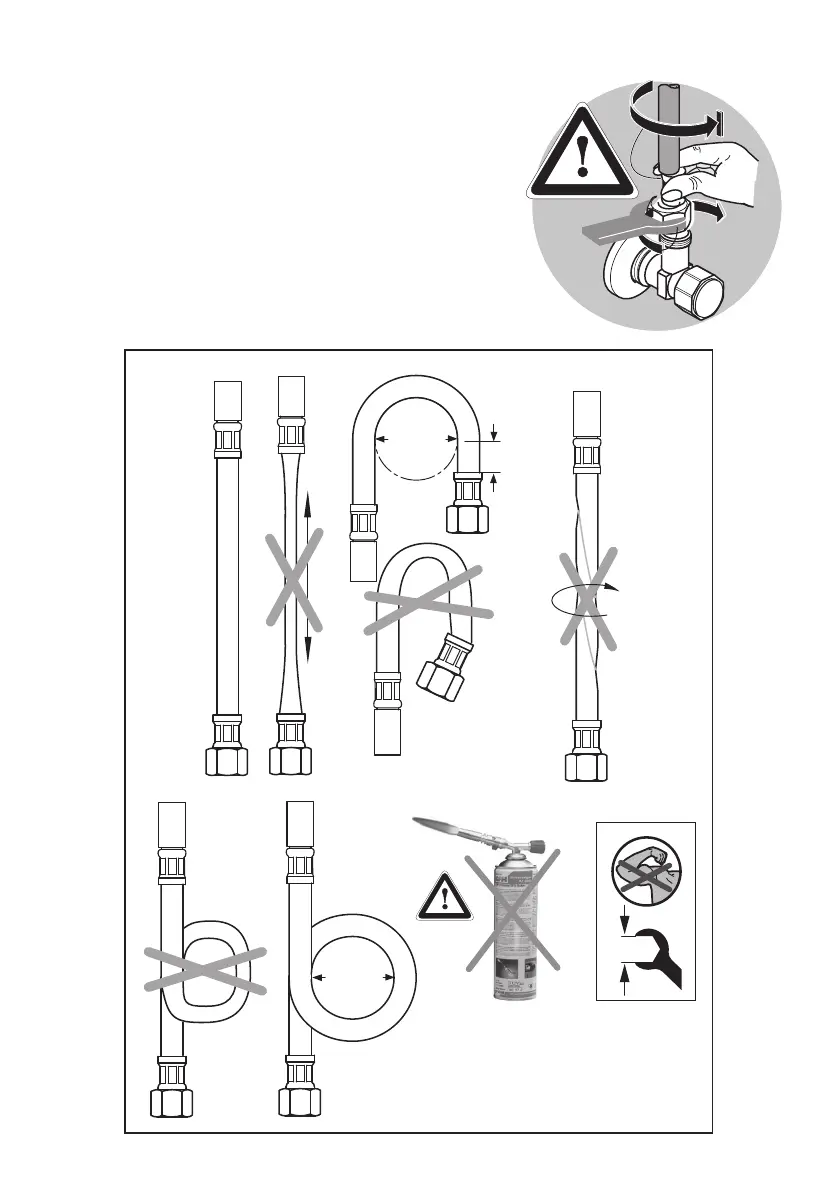

Flexible hoses are supplied with these products.
Hold the exi hose steady whilst tightening the nut.
Avoid sharp bends, twisting, kinking
& stretching these hoses as this may
result in damage.
Take care not to use excessive force on the nut.
On the nut side, a seal is integral & requires little force to seal.
12
Flexible hoses (general notes)
min.
80mm
min.
80mm
min.15mm
24
DO NOT apply heat near these products.
Heat generated by soldering could
damage plastic parts and seals.
