INSTALLATION GUIDE continued…
Electrical connection continued…
6 URINAL OPERATION
Sensorow 21 products use an Infrared Sensor to activate the system.
The sensor is triggered by something reective (normally the user) in the
Sensing Region.
1. User to stand in front of the sensor /
urinal bowl for at least 8 seconds.
2. When the user moves away, there will
be a courtesy pause of 2 seconds.
3. The solenoid valve will turn on for the
set Run Time (adjustable).
4. Water then ows to either:
i) Flush the urinal bowl, or
ii) Top up an auto cistern*.
*With auto cisterns typically a
ush is activated after 7 uses.
If the urinal is not used for 24 hours, the
solenoid valve will open for a preset
period (auto ush time). This is adjustable
using a programming hand unit.

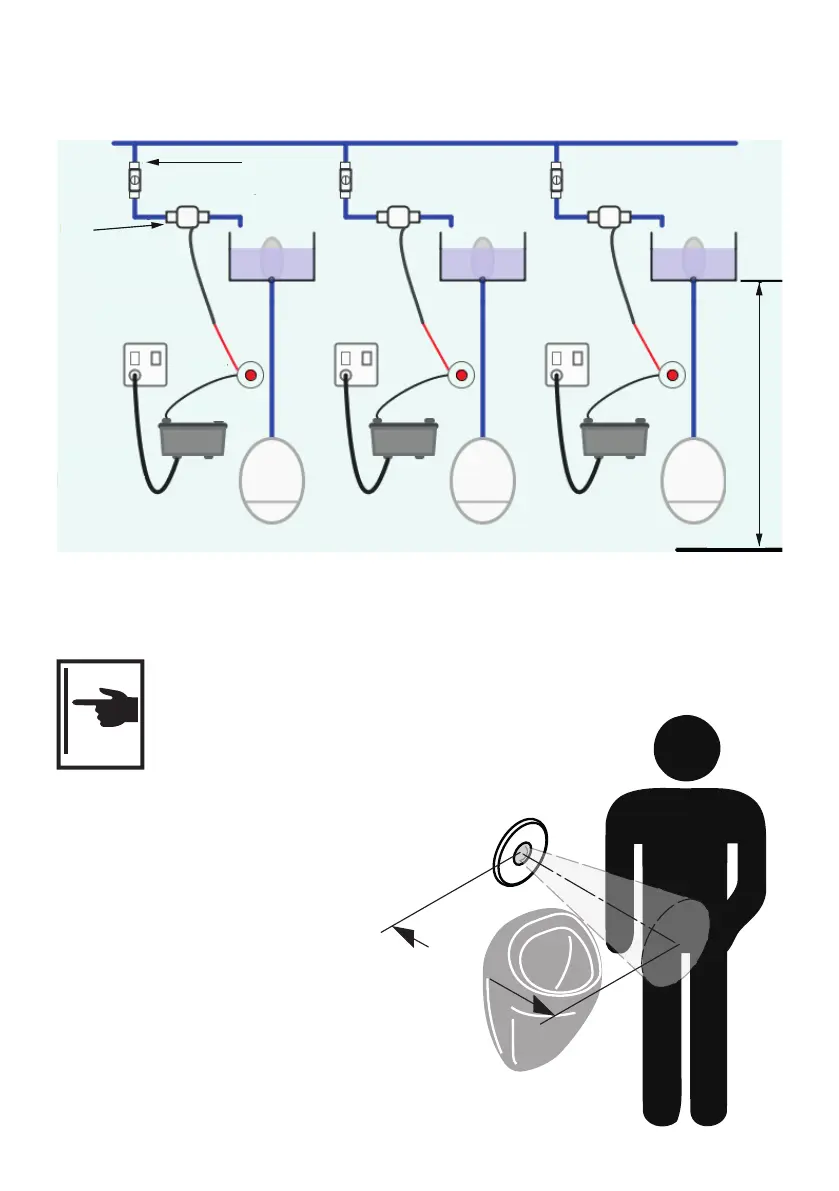

Example above of a urinal installation where PSUs are all mains versions.Flushing is via auto cisterns.
400
to 800
ISO Valve
Filter
Solenoid
Valve
Auto
Cistern
1980
mm
Solenoid Valve
Exension Lead
100-240V AC
50 - 60 Hz
6 lpm Flow
Regulator
Main Box
6 V DC (Out)
Sensor
Floor
Example above of a urinal installation where PSUs are all mains versions.Flushing is via auto cisterns.
To Next Page
