INSTALLATION GUIDE continued…
Electrical connection continued…
A pair of self-adhesive Velcro-type pads are provided. Attach one to the
side of the PSU case & the other to a suitable location on the rear of the
mounting panel.
Ensure the selected location does not stretch/stress the cables. Consid-
eration should also be given to keeping the PSU case within easy reach/
access for maintenance sta.
IMPORTANT:
Leave the sensor protective sticker in place for at least 20 seconds af-
ter powering-on the product. See section 7 regarding sensor ranging.

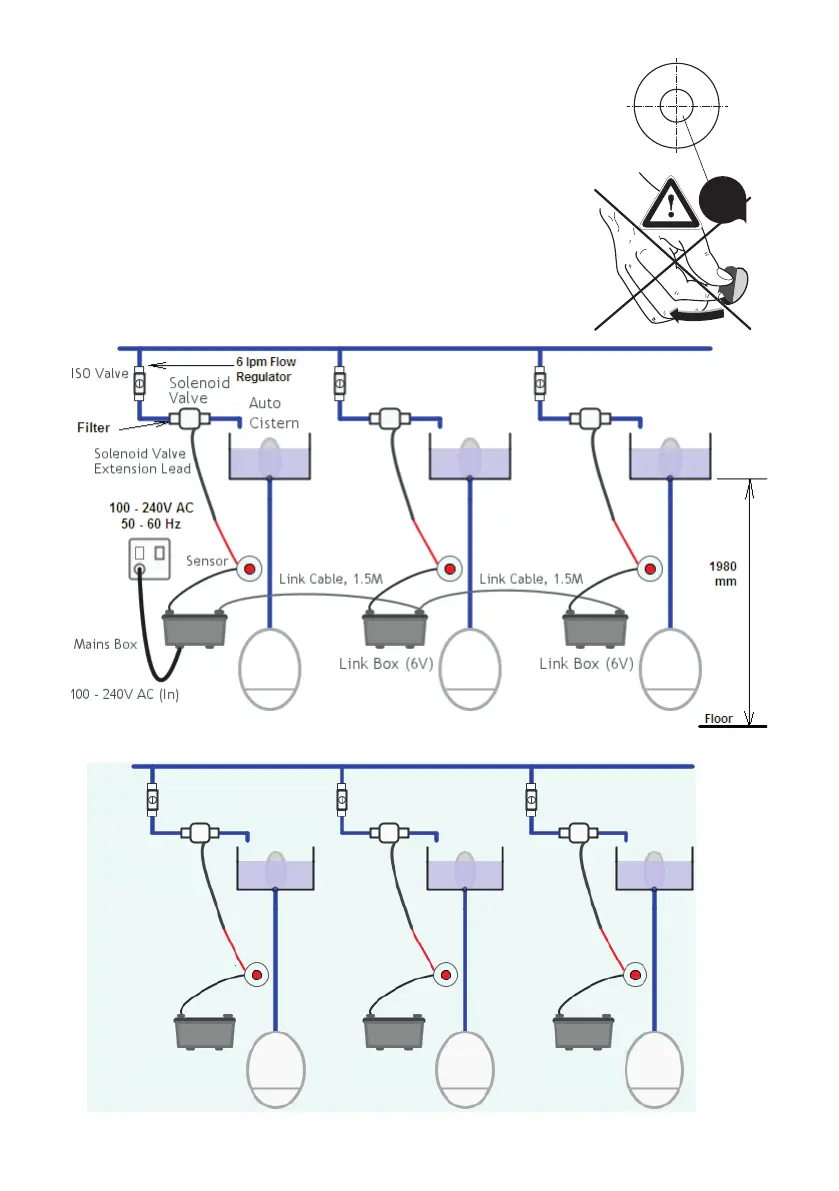

Example above of a urinal installation where PSUs are all battery versions & ushing is via auto cisterns.
Example above of a urinal installation where 1st PSU is mains plus 2x
link PSUs. Flushing is via auto cisterns.
ISO Valve
& Filter
Solenoid
Valve
Auto
Cistern
Solenoid Valve
Exension Lead
Battery Box (6V)
A960 551 NU
Battery Box
Sensor
Battery Box
