INSTALLATION GUIDE continued…
Connection of this product to mains
power supply should be undertaken by
a competent person and should
conform to IEE Wiring Regulations
Orientation & position of solenoids, and PSU
(Power Supply Unit) case can dier from installa-
tion to installation.
With the product securely mounted to the panel &
plumbed-in, electrical work can commence.

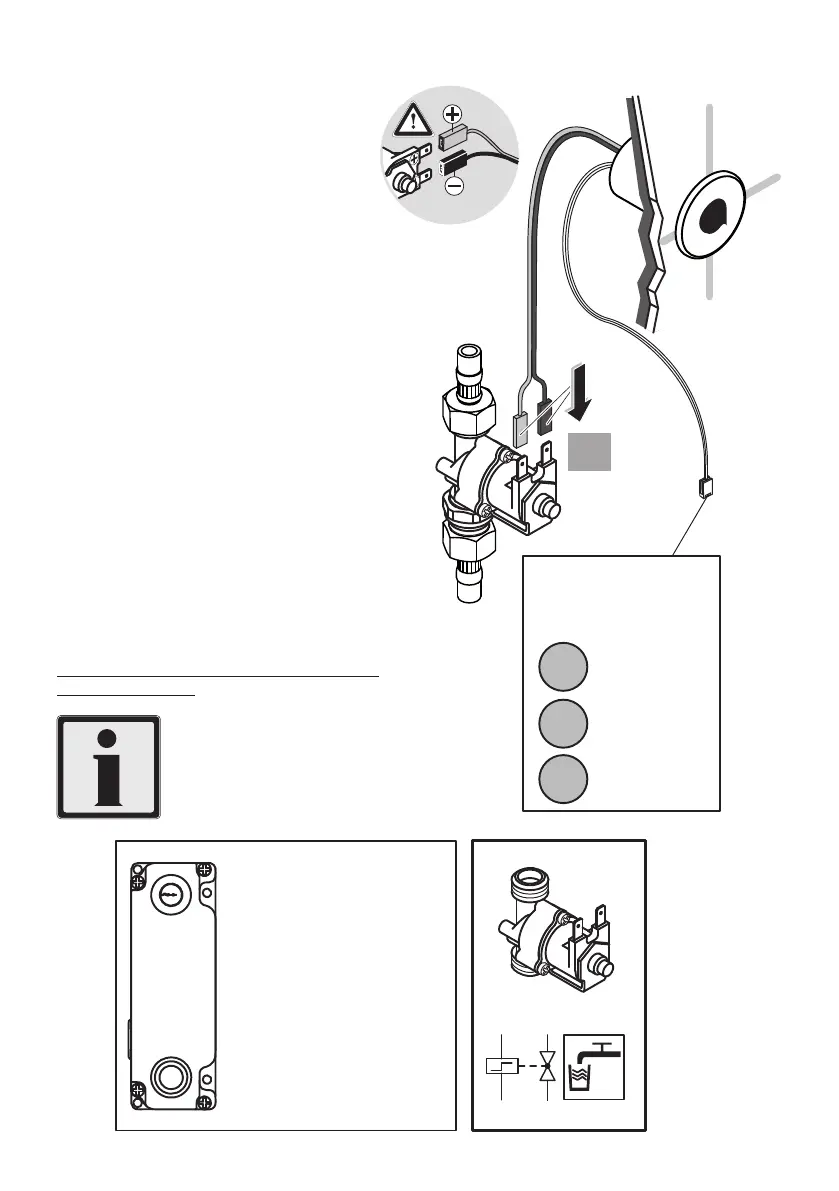

12. Locate the end of the red & black cable
which emerges from the rear of the sensor.
This cable length is approx 800mm.
Connect the cable to the solenoid valve terminals
as shown. Observe the + and – symbols marked
on the solenoid valves, connect the red cable to +
& black to -.
Refer to the diagram on the next page for PSU
connection options.
Power:
6W
Approval EU:
EN 60950, EN 60335
Approval UL: UL 1310
Input voltage:
100V - 240V~ 50 - 60Hz
Protection class: II
DIN EN 60730-1: Type 1
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
red
black
12
Electrical information
& approvals:
13
5.3 Electrical connection
